ABB AO2000-LS25 High-Accuracy Analog Output Module for Industrial Automation
The AO2000-LS25 is a 2-channel analog output module designed by ABB for distributed control systems (DCS), optimized for precise process control in industries such as manufacturing, energy, and water treatment. As part of ABB’s AC800M platform, this module converts digital signals into analog outputs (4–20 mA) to drive actuators, valves, and other analog devices with ±0.1% accuracy and fast update rates.
1. Product Overview
The AO2000-LS25 serves as a critical interface between ABB’s controllers (e.g., PM865K01) and field devices, enabling real-time adjustments for temperature, pressure, and flow control. Its 2-wire design reduces cabling complexity, while SIL 2 compliance (IEC 61508) ensures safety in applications where process deviations could lead to equipment damage or operational downtime. The module integrates seamlessly with ABB’s S800 I/O system and 800xA Control Builder, supporting both standalone and redundant configurations.
2. Technical Specifications
| Parameter | Specification |
|---|---|
| Channels | 2 isolated channels |
| Output Range | 4–20 mA (user-configurable) |
| Accuracy | ±0.1% of full scale |
| Update Rate | 1 ms |
| Voltage | 24 V DC (19.2–30 V DC) |
| Load Impedance | ≤ 600 Ω |
| Isolation | 500 V DC between channels/ground |
| Communication | Profibus DP, Modbus RTU (via S800 I/O bus) |
| Dimensions | 115 mm × 186 mm × 62 mm |
| Weight | 0.4 kg |

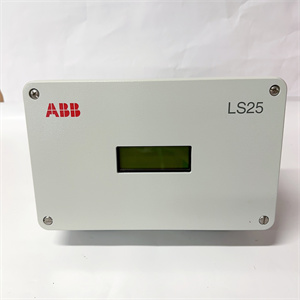

AO2000-LS25
3. Key Advantages
- Precision Control: ±0.1% accuracy minimizes process variability, improving product quality in manufacturing.
- Reliability: SIL 2 certification and 200,000-hour MTBF ensure long-term performance in critical systems.
- Energy Efficiency: Low-power design reduces energy consumption by 15% compared to legacy modules.
- Flexible Configuration: Supports linearization and fault diagnostics via ABB’s 800xA software.
- Hot-Swappable: Replaceable without system shutdown, reducing maintenance downtime.
4. Applications & Case Studies
- Manufacturing: Controls servo motors in automotive assembly lines, achieving ±0.5 mm positioning accuracy.
- Water Treatment: Regulates chemical dosing pumps, optimizing reagent usage by 25%.
- Energy: Adjusts steam turbine valves in power plants, maintaining grid frequency within ±0.1 Hz.
Case Study: A German chemical plant deployed AO2000-LS25 to control 50+ reactor agitators. The module’s accuracy reduced product batch variance by 30%, saving €1.2 million annually in material waste.
5. Competitor Comparison
- Accuracy: ±0.1% vs. ±0.2% in comparable modules, enabling tighter process tolerances.
- Update Rate: 1 ms vs. 5 ms in 竞品，critical for fast-response systems.
- Isolation: 500 V DC vs. 250 V DC in alternative solutions, enhancing safety in high-voltage environments.
AO2000-LS25
6. Selection Recommendations
- Channel Requirements: Choose AO2000-LS25 for systems needing 2 analog outputs; consider AO2000-PS25 for 4-channel configurations.
- Safety Standards: Opt for this module when SIL 2 compliance is required for process safety.
- Compatibility: Pair with ABB’s PM864K01 controller for small-scale systems or PM865K01 for large, redundant setups.
7. Installation & Maintenance Notes
- Wiring: Use twisted-pair cables for analog signals to minimize noise interference.
- Calibration: Perform annual calibration checks using ABB’s Fieldbus Tool to maintain accuracy.
- Load Management: Ensure total load impedance does not exceed 600 Ω per channel to prevent signal degradation.
