BENTLY NEVADA 3500/15 133292-01 Low Voltage DC Power Supply Module
1. Product Overview
The 3500/15 133292-01 is a low voltage DC power supply module designed for the BENTLY NEVADA 3500 Machinery Monitoring System. It provides stable DC power to the 3500 rack, ensuring reliable operation of critical rotating machinery such as turbines, compressors, and pumps. The module is backward-compatible with older 3500 systems and supports flexible configurations for industrial environments.
2. Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 3500/15 133292-01 |
| Power Type | Low Voltage DC (20–30 Vdc) |
| Input Voltage Range | 20–30 Vdc |
| Module Type | Half-height |
| Installation Slot | Left-side designated slots in the 3500 rack |
| Redundancy Support | Optional dual-power configuration (primary/backup) |
| Weight | 2 kg |
| Dimensions | 30 cm × 20 cm × 20 cm (L × W × H) |
| Warranty | 1 year |

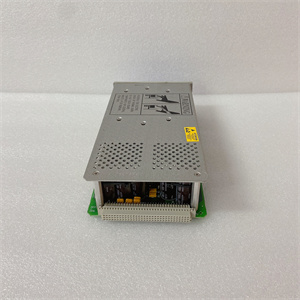

Bently 3500/15 133292-01
3. Key Features and Benefits
- Dual Power Redundancy:
- Supports single or dual power supply configurations.
- When two modules are installed, the lower slot acts as the primary supply, and the upper slot serves as a backup for uninterrupted operation.
- Wide Voltage Compatibility:
- Accepts 20–30 Vdc input, suitable for diverse industrial power systems.
- Space-Saving Design:
- Half-height form factor reduces rack space requirements.
- Hot-Swap Capability:
- Replaceable without powering down the system, minimizing downtime.
- Rugged Construction:
- Built for harsh environments (e.g., oil & gas, power plants) with stable performance under extreme conditions.
4. Installation and Configuration
- Slot Placement:
- Must be installed in the left-side slots of the 3500 rack.
- For dual-power setups, the primary module occupies the lower slot, and the backup occupies the upper slot.
- Power Distribution:
- Each power supply module feeds an independent power distribution network, ensuring isolation in case of faults (e.g., +5 V short circuits).
- Compatibility:
- Works with 3500 series modules (e.g., vibration, temperature, and process variable monitors).
5. Applications
- Industries:
- Oil & gas, power generation, petrochemicals, manufacturing.
- Use Cases:
- Powering BENTLY NEVADA 3500 monitoring systems for real-time vibration analysis, rotor dynamics, and fault detection.
- Ensuring continuous operation of critical machinery through redundant power support.
-

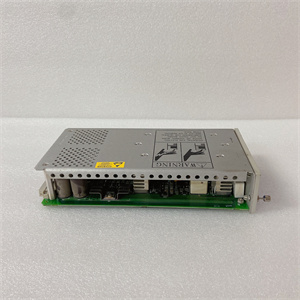

Bently 3500/15 133292-01
6. Precautions
- Voltage Verification:
- Ensure input voltage matches the module’s 20–30 Vdc range to avoid damage.
- Redundancy Setup:
- For critical systems, use dual modules to prevent power outages.
- Firmware Updates:
- Regularly update firmware to maintain compatibility with the 3500 system.
7. Competitive Comparison
The 3500/15 133292-01 stands out due to:
- Cost-Effective Redundancy: Affordable dual-power configuration compared to some competitors.
- Flexible Input Range: Supports low-voltage DC inputs, unlike some AC-only alternatives.
- Modular Design: Easy integration with existing 3500 racks.
Shanxi Runsheng Import and Export Co., LTD. is your authorized distributor for BENTLY NEVADA 3500/15 133292-01 modules. Contact us for pricing, technical support, or bulk orders at www.rsmodules.com.
