BENTLY NEVADA 3500/60 Temperature Monitoring Module
1. Product Description
The BENTLY NEVADA 3500/60 is a high-performance 6-channel temperature monitoring module designed for industrial machinery protection systems. It supports both Resistance Temperature Detector (RTD) and Thermocouple (TC) inputs, providing real-time temperature analysis to prevent equipment overheating and optimize operational efficiency. With advanced signal processing capabilities, the module filters noise, calculates vibration parameters (e.g., crest factor), and triggers customizable alarms to ensure early fault detection. Compatible with the BENTLY 3500 Series, it is widely used in power plants, oil refineries, and manufacturing facilities to safeguard critical rotating machinery.
The BENTLY NEVADA 3500/60 is a high-performance 6-channel temperature monitoring module designed for industrial machinery protection systems. It supports both Resistance Temperature Detector (RTD) and Thermocouple (TC) inputs, providing real-time temperature analysis to prevent equipment overheating and optimize operational efficiency. With advanced signal processing capabilities, the module filters noise, calculates vibration parameters (e.g., crest factor), and triggers customizable alarms to ensure early fault detection. Compatible with the BENTLY 3500 Series, it is widely used in power plants, oil refineries, and manufacturing facilities to safeguard critical rotating machinery.
2. Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 3500/60 |
| Channels | 6 (simultaneous temperature monitoring) |
| Input Types | RTD (3/4-wire) and TC (Type E/J) |
| Voltage Range | Power: 24–28 V DC; Signal: ±10 V DC |
| Power Consumption | 7 W (nominal) |
| Temperature Range | Operating: -40°C to +85°C; Storage: -55°C to +125°C |
| Accuracy | ±0.5°C at 25°C |
| Response Time | <1 second (RTD); <2 seconds (TC) |
| Dimensions | 241.3 mm × 24.4 mm × 163.1 mm (9.50 in × 0.96 in × 6.42 in) |
| Weight | 0.8 kg |
| Certifications | CE, RoHS, Explosion-proof standards |

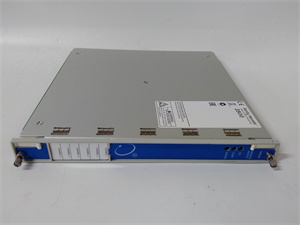

Bently 3500/60
3. Advantages and Features
- Precision Monitoring: High accuracy (±0.5°C) and fast response times ensure reliable temperature tracking in dynamic environments.
- Flexible Inputs: Supports RTD and TC sensors, accommodating diverse industrial applications.
- Customizable Alarms: User-defined thresholds trigger alerts or shutdowns to prevent catastrophic failures.
- Robust Design: Resistant to oil, dust, and vibrations, with an IP65 rating for harsh conditions.
- Energy Efficiency: Low power consumption (7 W) reduces operational costs.
4. Application Areas and Use Cases
Industry Applications:
Industry Applications:
- Power Generation: Monitoring steam turbines and generators.
- Oil & Gas: Protecting pumps and compressors in offshore platforms.
- Manufacturing: Ensuring stable operation of machine tools and conveyor systems.
Case Study: A U.S. power plant integrated the 3500/60 to monitor generator temperatures. By detecting abnormal heat patterns early, it reduced unplanned outages by 30% and extended equipment lifespan.
5. Competitor Comparison
- Superior Signal Conditioning: Advanced algorithms minimize noise interference, outperforming generic modules with basic filtering.
- Dual Input Support: RTD/TC compatibility eliminates the need for separate modules, reducing system complexity.
- Reliability: Built to withstand extreme temperatures (-40°C to +85°C), surpassing competitors with narrower operating ranges.
Bently 3500/60
6. Selection Recommendations
- Sensor Type: Choose RTD for stable environments or TC for high-temperature applications.
- Channel Requirements: Opt for 6-channel modules for mid-sized systems; upgrade to higher-channel variants for larger setups.
- Integration: Ensure compatibility with BENTLY 3500 racks for seamless system expansion.
7. Precautions
- Installation: Follow manufacturer guidelines to avoid blocking ventilation or electrical pathways.
- Calibration: Regularly verify sensor accuracy to maintain measurement precision.
- Safety Compliance: Adhere to local explosion-proof regulations (e.g., NEC Class I, Division 1) in hazardous zones.
Shanxi Runsheng Import and Export Co., LTD. offers BENTLY NEVADA 3500/60 and comprehensive automation solutions. Visit www.rsmodules.com for technical support and product inquiries.
