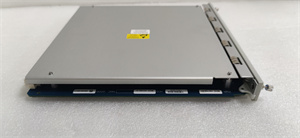

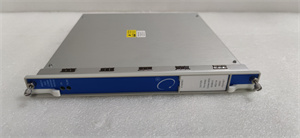

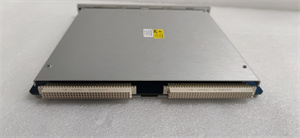

BENTLY NEVADA 3500/91 190782-01 EGD Communication Gateway Module
1. Product Description
The BENTLY NEVADA 3500/91 190782-01 is a high-performance EGD (Ethernet Global Data) communication gateway module designed for seamless integration between BENTLY’s 3500 Series vibration monitoring systems and third-party control platforms, such as GE Mark*VIe controllers. This module enables real-time data transmission of critical machinery parameters (e.g., vibration, displacement) via Ethernet UDP/IP and EGD 2.01 protocols, supporting predictive maintenance and centralized monitoring in industrial automation. With hot-swap capability and robust EMI resistance, the 3500/91 190782-01 ensures reliable operation in harsh environments, including power plants, refineries, and manufacturing facilities.
The BENTLY NEVADA 3500/91 190782-01 is a high-performance EGD (Ethernet Global Data) communication gateway module designed for seamless integration between BENTLY’s 3500 Series vibration monitoring systems and third-party control platforms, such as GE Mark*VIe controllers. This module enables real-time data transmission of critical machinery parameters (e.g., vibration, displacement) via Ethernet UDP/IP and EGD 2.01 protocols, supporting predictive maintenance and centralized monitoring in industrial automation. With hot-swap capability and robust EMI resistance, the 3500/91 190782-01 ensures reliable operation in harsh environments, including power plants, refineries, and manufacturing facilities.
2. Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 3500/91 190782-01 |
| Function | EGD 2.01 gateway for 3500 Series systems |
| Communication Protocols | EGD 2.01, Ethernet UDP/IP |
| Network Interface | IEEE 802.3 (10/100 Mbps twisted pair) |
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Power Consumption | ≤5 W |
| Operating Temperature | -40°C to +70°C |
| Dimensions | 263 mm × 58 mm × 28 mm |
| Weight | 4.3 kg |
| Certifications | CE, UL, IEC 61000-6-2/6-4 |
BENTLY 3500/91 190782-01
3. Advantages and Features
- Multi-Protocol Compatibility: Supports EGD 2.01 and Ethernet UDP/IP, ensuring seamless integration with GE Mark*VIe and other industrial control systems.
- Real-Time Data Delivery: Transmits vibration and displacement data with sub-10 ms latency, enabling rapid decision-making.
- Modular Design: Hot-swap capability minimizes downtime during maintenance or system expansion.
- EMI Resistance: Shielded construction ensures signal integrity in high-noise environments.
- Scalability: Connects up to 256 data points from the 3500 Series to host systems.
4. Application Areas and Use Cases
Industry Applications:
Industry Applications:
- Energy: Gas turbines, steam turbines, generators.
- Oil & Gas: Compressors, pumps, offshore platforms.
- Manufacturing: High-speed rotating machinery.
Case Study: A Middle Eastern power plant reduced unplanned downtime by 25% using the 3500/91 190782-01 to integrate 3500 Series vibration data with a GE Mark*VIe controller. Early detection of turbine imbalance via real-time analytics prevented $1.5 million in repair costs.
5. Competitor Comparison
- Enhanced Protocol Support: Supports EGD 2.01, a GE-specific protocol, unlike generic gateways.
- Faster Data Throughput: Sub-10 ms latency outperforms standard industrial Ethernet solutions.
- Compact Footprint: Occupies a single 3500 Series slot, reducing panel space compared to multi-module alternatives.
-
BENTLY 3500/91 190782-01
6. Selection Recommendations
- Compatibility: Ensure alignment with existing control systems (e.g., GE Mark*VIe) and network infrastructure.
- Data Volume: Verify the module’s 256-point capacity meets project requirements.
- Environment: Check temperature and EMI ratings for installation site conditions.
7. Precautions
- Network Configuration: Use BENTLY’s 3500 Rack Configuration Software to set IP addresses and data mapping.
- Shielding: Use Category 5e or higher cables for Ethernet connections to minimize interference.
- Firmware Updates: Regularly update firmware to maintain compatibility with evolving protocols.
Shanxi Runsheng Import and Export Co., LTD. provides BENTLY NEVADA 3500/91 190782-01 and automation solutions. Visit www.rsmodules.com for technical support and product inquiries.
