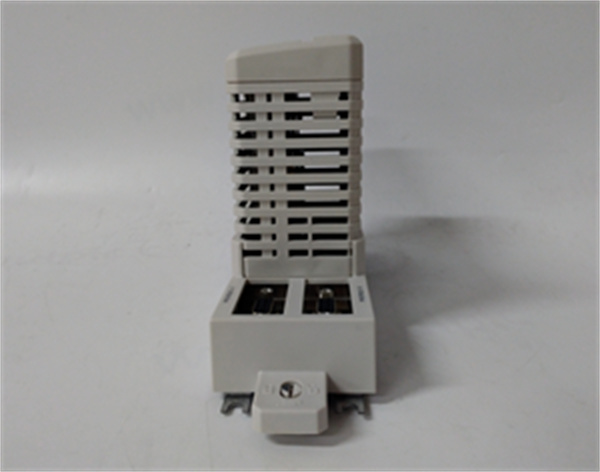

CI854AK01-3BSE030220R1 Product Documentation
1. Product Overview
The CI854AK01-3BSE030220R1 is a high-performance analog input module designed for industrial automation systems, manufactured by ABB, a leading global provider of power and automation technologies. This module is part of the ABB AC800M PLC platform, renowned for its reliability and advanced functionality. The CI854AK01-3BSE030220R1 supports precise signal acquisition, flexible configuration, and seamless integration with control systems, making it ideal for applications in energy, manufacturing, and process industries.
The CI854AK01-3BSE030220R1 is a high-performance analog input module designed for industrial automation systems, manufactured by ABB, a leading global provider of power and automation technologies. This module is part of the ABB AC800M PLC platform, renowned for its reliability and advanced functionality. The CI854AK01-3BSE030220R1 supports precise signal acquisition, flexible configuration, and seamless integration with control systems, making it ideal for applications in energy, manufacturing, and process industries.
2. Key Technical Parameters
| Parameter | Specification |
|---|---|
| Power Supply | 24V DC ±10% |
| Input Channels | 8 channels (4-20mA/0-10V) |
| Resolution | 16-bit |
| Accuracy | ±0.1% |
| Communication Protocols | Profibus DP, Modbus RTU |
| Operating Temperature | -40°C to +70°C |
| Compatibility | ABB AC800M PLC systems |
CI854AK01-3BSE030220R1
3. Advantages and Features
- High Precision: The CI854AK01-3BSE030220R1 offers 16-bit resolution and ±0.1% accuracy, ensuring reliable measurements in critical processes.
- Flexible Configuration: Supports multiple signal types (4-20mA, 0-10V) and configurable input ranges.
- Redundant Design: Dual power supply inputs and fail-safe operation protect against system downtime.
- EMI/RFI Immunity: Shielded design minimizes interference in noisy industrial environments.
4. Application Areas and Case Studies
- Industries: Petrochemical plants, power generation facilities, water treatment systems.
- Case Study: A European petrochemical plant reduced maintenance costs by 20% using the CI854AK01-3BSE030220R1 to monitor reactor pressure and temperature. The module’s real-time data analysis optimized process efficiency.
5. Competitive Comparison
Compared to similar modules, the CI854AK01-3BSE030220R1 provides:
Compared to similar modules, the CI854AK01-3BSE030220R1 provides:
- Wider temperature range (-40°C to +70°C vs. standard -20°C to +60°C).
- Faster sampling rate (2ms per channel vs. 5ms).
- Built-in surge protection for harsh electrical conditions.
CI854AK01-3BSE030220R1
6. Selection Recommendations
- Compatibility: Verify compatibility with your ABB AC800M PLC system.
- Signal Requirements: Ensure input/output ranges match your sensors/actuators.
- Environmental Factors: Consider temperature, humidity, and vibration levels in your installation location.
7. Precautions
- Installation: Use shielded cables for analog signals and follow ABB’s wiring guidelines.
- Calibration: Perform periodic calibration checks to maintain accuracy.
- Safety: Power down the system before replacing the module to avoid electrical hazards.
