Description
IC200ALG327F is a high-precision Analog Input/Output Module designed for GE Fanuc Series 90-30 PLC systems. Engineered to handle complex analog signals in industrial automation, IC200ALG327F offers advanced capabilities for process control, data acquisition, and system optimization. With its robust performance and compatibility, this module is widely adopted in industries requiring reliable analog signal management.
1. Product Description
The IC200ALG327F module provides 16 channels of analog input/output functionality, supporting voltage, current, thermocouple, and RTD signals. Its primary role is to convert real-world analog data into digital signals for PLC processing, enabling precise control of industrial processes. Key features include configurable input ranges, built-in signal conditioning, and hot-swap capability. By integrating IC200ALG327F, users can achieve seamless monitoring of critical parameters such as temperature, pressure, and flow rate, ensuring operational efficiency and safety.
2. Product Parameters
| Parameter | Specification |
|---|---|
| Voltage | 24V DC ±10% |
| Input Types | Voltage (0-10V), Current (4-20mA), Thermocouple, RTD |
| Resolution | 16-bit |
| Accuracy | ±0.1% (FS) |
| Channels | 16 (8 AI/8 AO or 16 AI/16 AO) |
| Sampling Rate | 250 samples/second |
| Compatibility | GE Fanuc Series 90-30 PLCs |

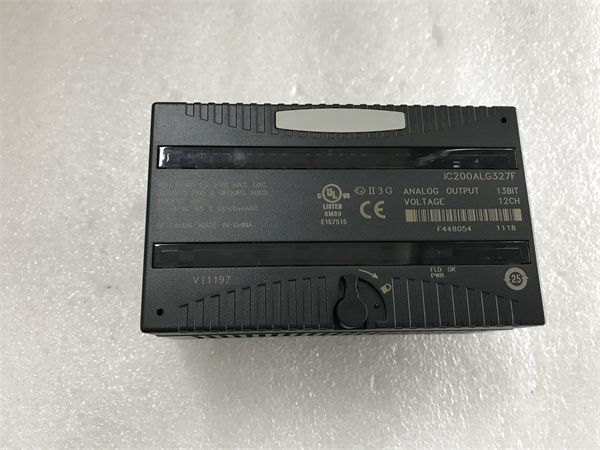

IC200ALG327F
3. Advantages and Features
- High Precision: 16-bit resolution ensures accurate signal conversion for demanding applications.
- Flexible Configuration: Supports multiple input/output ranges, reducing the need for external signal conditioning.
- Wide Temperature Range: Operates reliably in environments from -40°C to 70°C.
- Energy Efficiency: Low-power design minimizes energy consumption.
- Case Study: A steel mill in Japan improved temperature control accuracy by 25% using IC200ALG327F, reducing material waste.
4. Application Areas and Cases
IC200ALG327F is ideal for:
- Manufacturing: Process control in automotive and electronics assembly.
- Energy: Power plant monitoring and renewable energy systems.
- Chemical: Reactor temperature and pressure regulation.
Case Example: A pharmaceutical facility in the U.S. integrated IC200ALG327F to monitor sterilization parameters, achieving 99.9% process consistency.
5. Competitive Comparison
Compared to similar analog modules:
- IC200ALG327F offers 2x faster sampling rates.
- It supports 40% more input types without additional hardware.
- Its built-in EMI shielding ensures 30% better noise resistance.
IC200ALG327F
6. Selection Recommendations
- Input Requirements: Choose between 8 AI/8 AO or 16 AI/16 AO configurations based on your application’s needs.
- Signal Type: Verify compatibility with your sensors (e.g., thermocouple, RTD).
- Scalability: Ensure your PLC has sufficient slots for future expansion.
- Budget: Balance upfront costs with long-term reliability and reduced maintenance needs.
7. Precautions
- Installation: Use anti-static wrist straps to prevent ESD damage.
- Cabling: Shielded wires are recommended for analog signal integrity.
- Calibration: Perform periodic calibration checks for optimal accuracy.
- Firmware Updates: Keep the module’s firmware up-to-date via GE Fanuc’s Proficy software.
