  1. Dual – Channel Redundancy
    • Supports redundant configurations for critical systems.
  2. Surge and Noise Immunity
    • Transient voltage suppression for surge protection.
    • EMI/RFI shielding for stable operation in noisy environments.
  3. Modular Design
    • Hot – swappable for quick replacement without system shutdown.
    • Color – coded terminals reduce wiring errors.
  4. Space – Saving
    • 16 channels in a compact form factor, ideal for space – constrained panels.
Get a Quote
In Stock
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide. Brand:

Description

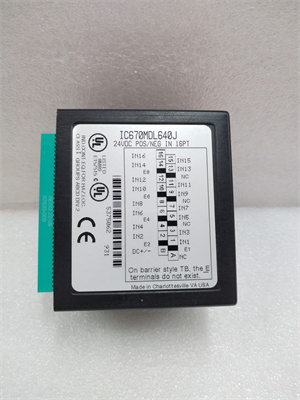

GE Fanuc IC670MDL640 Digital I/O Module



The GE Fanuc IC670MDL640 is a high – performance digital input/output module designed for industrial automation systems, particularly compatible with GE’s PACSystems RX3i and VersaMax platforms. This compact module provides reliable connectivity for digital signals in manufacturing, energy, and process control applications.

Product Overview

  • Function: 16 isolated digital input/output channels (8 inputs + 8 outputs).
  • Compatibility: Works with GE PACSystems RX3i racks and PLCs.
  • Key Use: Controls actuators, solenoids, and sensors while monitoring switches and relays.

Technical Specifications

Parameter Value
Input/Output Channels 8 digital inputs (24 VDC, 4 mA) + 8 digital outputs (24 VDC, 1 A)
Voltage Rating 24 VDC ±15% (input/output), 30 VDC max continuous
Isolation 2.5 kV RMS between channels
Response Time <10 ms (input), <5 ms (output)
Temperature Range -40°C to 70°C (-40°F to 158°F)
Dimensions 100 mm × 100 mm × 50 mm (3.9″ × 3.9″ × 2.0″)
IC670MDL640

IC670MDL640

Key Features & Advantages

  1. Dual – Channel Redundancy
    • Supports redundant configurations for critical systems.
  2. Surge and Noise Immunity
    • Transient voltage suppression for surge protection.
    • EMI/RFI shielding for stable operation in noisy environments.
  3. Modular Design
    • Hot – swappable for quick replacement without system shutdown.
    • Color – coded terminals reduce wiring errors.
  4. Space – Saving
    • 16 channels in a compact form factor, ideal for space – constrained panels.

Applications

  • Manufacturing: Actuating robotic arms and monitoring conveyor systems.
  • Energy: Controlling pumps, valves, and generator breakers.
  • Water/Wastewater: Managing solenoid valves and level sensors.

Competitive Edge

  • Cost – Efficiency: Offers 16 channels at a competitive price per point.
  • Certifications: Compliant with IEC 61131 – 2 and UL 508.
  • Reliability: Rated for 100,000+ operating hours in harsh conditions.

Installation & Maintenance Tips

  1. Wiring:
    • Use 18–22 AWG wires with ferrules for secure connections.
    • Torque screws to 0.5 N·m (4.4 lbf·in).
  2. Troubleshooting:
    • LED indicators: Green = power, amber = fault.
    • Replace faulty modules individually.
  3. Safety:
    • Power down the system before installation.
    • Follow NEC Article 408 for wiring standards.
      IC670MDL640

      IC670MDL640

Recommended Accessories

  • IC670PSM210 Power Supply: For reliable power distribution.
  • IC670BEM210 Backplane: For multi – module configurations.
