  1. Multi-Protocol Support: Simultaneously handles Ethernet/IP, Profibus DP, and Modbus RTU, reducing the need for additional adapters.
  2. High-Speed Data Transfer: Supports 10/100 Mbps Ethernet and 12 Mbps Profibus for real-time control (latency < 2ms).
  3. Rugged Reliability: Industrial-grade design with an MTBF of 150,000+ hours (per GE testing), suitable for vibration and shock (IEC 60068-2-6).
  4. Modular Scalability: Integrates with GE’s RX3i I/O modules (e.g., IC697MDL655) for flexible system expansion.
  5. Remote Management: Built-in web server for firmware updates and diagnostics via Ethernet, minimizing downtime.
Get a Quote
In Stock
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide. Brand:

Description

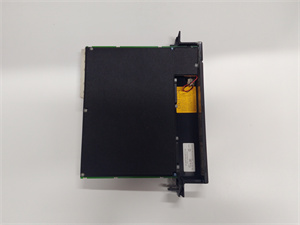

Product Description: GE IC697PCM711

The GE IC697PCM711 is a high-performance communication module designed for GE’s PACSystems RX3i PLC platform, delivering seamless connectivity and advanced data management for industrial automation. As part of GE’s robust portfolio, this module integrates cutting-edge communication protocols and modular architecture to support complex control systems. The IC697PCM711 enables real-time data exchange between PLCs, HMIs, and enterprise networks, ensuring efficient operation in diverse industrial environments. Its compact design and rugged construction make it ideal for applications requiring reliable communication in harsh conditions.

Product Parameters

Parameter Specification
Voltage 24V DC (±10%)
Current 0.3A (max)
Communication Protocols Ethernet/IP, Profibus DP, Modbus RTU
Compatibility GE PACSystems RX3i (IC697 series)
Memory 128 MB RAM (for data buffering)
Interface Type RJ45 (Ethernet), DB9 (Profibus/Modbus)
Operating Temperature -40°C to +60°C
Dimensions 100 mm x 120 mm x 50 mm (W x H x D)
IC697PCM711

IC697PCM711

Advantages and Features

  1. Multi-Protocol Support: Simultaneously handles Ethernet/IP, Profibus DP, and Modbus RTU, reducing the need for additional adapters.
  2. High-Speed Data Transfer: Supports 10/100 Mbps Ethernet and 12 Mbps Profibus for real-time control (latency < 2ms).
  3. Rugged Reliability: Industrial-grade design with an MTBF of 150,000+ hours (per GE testing), suitable for vibration and shock (IEC 60068-2-6).
  4. Modular Scalability: Integrates with GE’s RX3i I/O modules (e.g., IC697MDL655) for flexible system expansion.
  5. Remote Management: Built-in web server for firmware updates and diagnostics via Ethernet, minimizing downtime.

Application Areas and Use Cases

Industries: Manufacturing (automotive, food & beverage), energy (renewable power), and water/wastewater treatment.
Scenarios: Machine-to-machine (M2M) communication, SCADA integration, and distributed control systems (DCS).



Case Study: A water treatment plant adopted the IC697PCM711 to connect 20+ remote pump stations to a central SCADA system. The module’s Profibus and Ethernet capabilities reduced data latency by 40%, enabling proactive maintenance and a 25% improvement in operational efficiency.

Competitive Comparison

Compared to similar communication modules:
  • Protocol Flexibility: Supports 3 native protocols (vs. 1–2 in most 竞品), reducing hardware costs.
  • Temperature Range: Operates in extreme conditions (-40°C to +60°C) vs. standard 0°C to +50°C.
  • Security: Built-in IEEE 802.1X authentication (Ethernet) for enhanced network security (not standard in all 竞品).
    IC697PCM711

    IC697PCM711

Selection Recommendations

  1. System Compatibility: Ensure compatibility with GE PACSystems RX3i (check chassis: IC697CHS790).
  2. Protocol Needs: Choose based on existing network infrastructure (e.g., Profibus for legacy systems, Ethernet/IP for modern IoT integration).
  3. Environment: For outdoor use, pair with GE’s rugged enclosures (IC697CHS792) and surge protection modules (IC697PWR721).
  4. Future-Proofing: Opt for the IC697PCM711 for its support of OPC UA (via firmware update), enabling seamless IoT integration.

Precautions

  1. Installation:
    • Follow ESD protocols; use anti-static wrist straps.
    • Securely mount the module in a grounded chassis (DIN rail or panel mount).
  2. Configuration:
    • Use GE’s Proficy Machine Edition software for protocol setup and firmware updates.
    • Validate IP addresses and subnet settings to avoid network conflicts.
  3. Maintenance:
    • Clean connectors annually (use isopropyl alcohol).
    • Monitor network traffic via the module’s built-in diagnostics (LED indicators for TX/RX activity).
