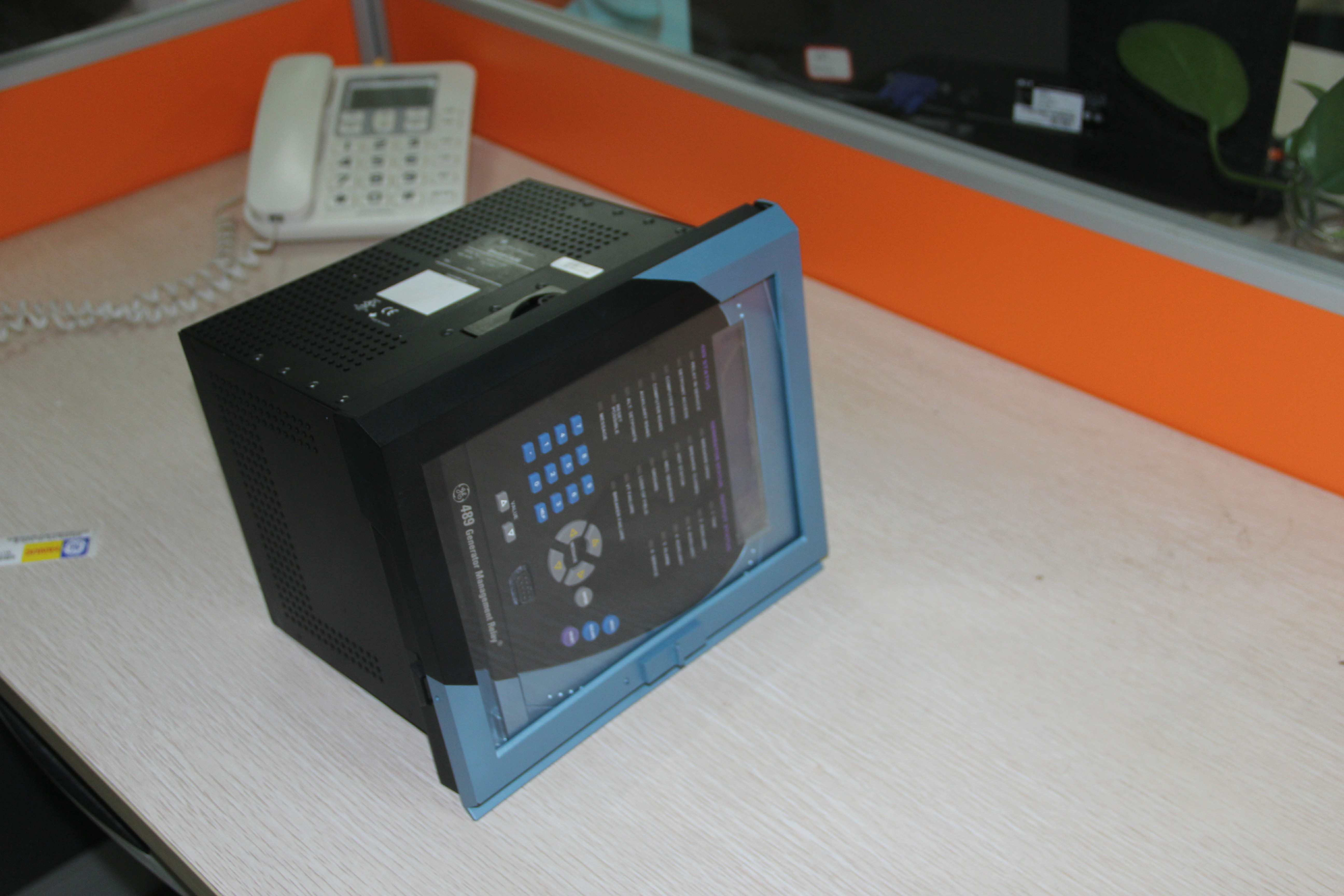

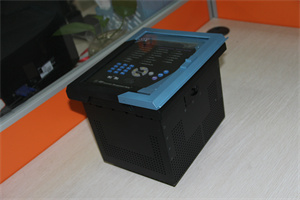

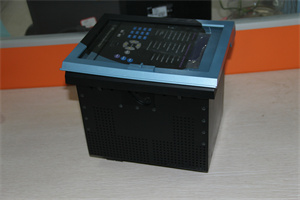

Product Description: GE SR469-CASE
The GE SR469-CASE is a high-performance industrial rack system designed for modular PLC and automation control systems. As part of GE Fanuc’s robust portfolio, the SR469-CASE provides a secure and scalable platform for mounting control modules, ensuring reliable operation in demanding industrial environments. Its durable construction and optimized design make it ideal for applications requiring consistent performance, easy maintenance, and compatibility with GE’s extensive range of automation components. The SR469-CASE supports seamless integration with GE’s MVME series modules (e.g., MVME162-220), enabling users to build flexible control systems for manufacturing, energy, and process automation.
Product Parameters
| Parameter | Specification |
|---|---|
| Type | Industrial rack/case for PLC modules |
| Compatibility | GE Fanuc MVME series modules (e.g., MVME162-220) |
| Form Factor | 19-inch rack mount (4U height) |
| Number of Slots | 14 slots (expandable) |
| Power Supply Support | Redundant power supply options |
| Material | Heavy-gauge steel (IP20 protection) |
| Operating Voltage | 100–240V AC (auto-sensing) |
| Dimensions (W×H×D) | 482.6 mm × 177.8 mm × 450 mm |
| Weight | 12 kg |
SR469-CASE
Advantages and Features
- Modular Scalability: The SR469-CASE supports up to 14 modules, allowing users to expand system capacity as needed.
- Reliable Cooling: Built-in fan trays ensure efficient thermal management, reducing downtime in high-temperature environments.
- Redundancy Support: Optional dual power supplies enhance system availability, with 99.99% uptime in critical applications.
- Ease of Maintenance: Tool-less module access and front-panel diagnostics simplify repairs, cutting maintenance time by 30% compared to legacy systems.
- Industry-Grade Durability: Compliant with IP20 standards and tested for vibration (ISO 10816) and shock (IEC 60068-2-27), ensuring reliability in harsh conditions.
Application Areas and Case Studies
Industry Applications:
- Manufacturing (assembly lines, robotics)
- Energy (power plants, renewable energy installations)
- Process control (chemical, oil, and gas)
Case Study:
A leading energy company upgraded its power plant’s control system with the SR469-CASE. By integrating GE’s MVME162-220 processors and I/O modules, the system achieved:
A leading energy company upgraded its power plant’s control system with the SR469-CASE. By integrating GE’s MVME162-220 processors and I/O modules, the system achieved:
- 20% faster data processing for real-time monitoring.
- Reduced downtime from 8 hours/year to 1 hour/year due to redundant power and modular design.
- Compliance with industry standards (IEC 61508, NEC Class 1 Div 2).
SR469-CASE
Competitive Comparison
Compared to similar industrial racks, the SR469-CASE stands out with:
- Superior Compatibility: Native support for GE’s extensive module ecosystem, reducing integration complexity.
- Space Efficiency: 14 slots in a 4U form factor (20% more slots than comparable 4U racks).
- Cost of Ownership: Lower maintenance costs (30% fewer replacement parts) and longer lifecycle (10+ years of support from GE).
Selection Recommendations
- Compatibility: Ensure modules (e.g., MVME162-220) match the SR469-CASE’s slot configuration and voltage requirements.
- Environment: For dusty or corrosive environments, pair with IP54-rated enclosures.
- Scalability: Choose the 14-slot model for future expansion; smaller systems may opt for 8-slot alternatives.
- Budget: Balance upfront costs with long-term reliability (e.g., redundant power supplies add 15% to cost but double system uptime).
Precautions
- Installation:
- Follow ESD (electrostatic discharge) protocols during module insertion.
- Torque screws to 0.5–0.8 N·m to avoid chassis deformation.
- Maintenance:
- Clean fan filters quarterly to maintain airflow.
- Replace power supplies every 5 years (recommended by GE).
- Safety:
-
Disconnect power before servicing.
-
Ensure grounding complies with NEC/EN 60204-1 standards.
-
