GE Fanuc VMIVME-7700 Product Documentation
1. Product Description

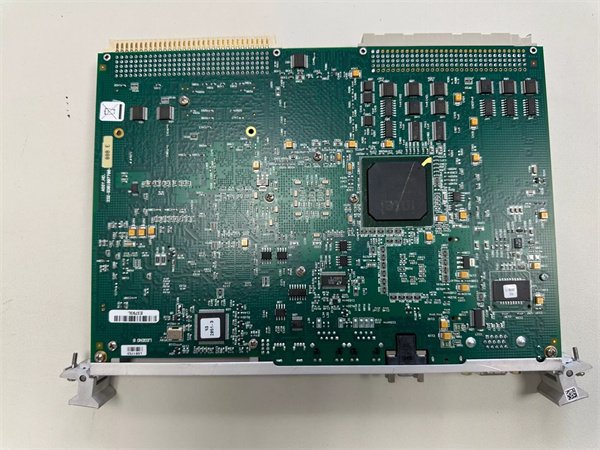

The GE Fanuc VMIVME-7700 is a high-performance VMEbus interface card designed for industrial automation and control systems. As part of GE Fanuc’s robust portfolio, the VMIVME-7700 enables seamless integration of VME-based devices into larger control networks, supporting real-time data acquisition, communication, and system expansion. Its compact design and advanced features make it ideal for applications requiring reliable and efficient industrial communication.
2. Product Parameters
| Parameter | Specification |
|---|---|
| Bus Type | VMEbus (VME64 compatible) |
| Data Transfer Rate | Up to 132 MB/s (32-bit), 264 MB/s (64-bit) |
| Interface | 96-pin VME connector |
| Power Supply | +5V DC (from VME backplane) |
| Compatibility | VME A/B/C-size chassis |
| Temperature Range | -40°C to +85°C (industrial grade) |
| Dimensions | 160 mm x 100 mm (VME A-size) |
VMIVME-7700
3. Advantages and Features
- High-Speed Data Transfer: The VMIVME-7700 supports 32/64-bit data transfers, ensuring fast communication in demanding industrial environments.
- Hot-Swap Capability: Enables safe replacement of the card without powering down the system, reducing downtime.
- Redundancy Support: Compatible with dual-channel configurations for fault tolerance in critical applications.
- Wide Temperature Range: Operates reliably in extreme conditions, making it suitable for harsh industrial settings.
4. Application Areas and Cases
Industry Applications:
- Manufacturing automation
- Energy and power generation
- Transportation systems
- Aerospace and defense
Case Study:
A manufacturing plant integrated the VMIVME-7700 to connect 50+ VME-based sensors and controllers in a production line. The card’s high-speed data transfer reduced latency by 40%, improving overall system efficiency.
A manufacturing plant integrated the VMIVME-7700 to connect 50+ VME-based sensors and controllers in a production line. The card’s high-speed data transfer reduced latency by 40%, improving overall system efficiency.
5. Competitor Comparison
Compared to similar VME interface cards, the VMIVME-7700 offers:
- 20% faster data transfer rates
- Native support for VME64 specifications
- Lower power consumption (3.5W vs. 4.2W on average)
VMIVME-7700
6. Selection Recommendations
- Compatibility: Ensure your VME chassis supports VME64 or legacy VME standards.
- Performance Needs: Choose the VMIVME-7700 for high-bandwidth applications; opt for lower-cost alternatives for basic I/O tasks.
- Environment: Prioritize this model for extreme temperature ranges (-40°C to +85°C).
7. Precautions
- ESD Protection: Use anti-static gear during installation.
- Cooling: Ensure adequate airflow in the chassis to prevent overheating.
- Firmware Update: Regularly update firmware for optimal compatibility and security.
