Description
1. Product Description
The YOKOGAWA YNT511D is a versatile and reliable process control instrument designed for industrial automation applications. As part of Yokogawa’s CENTUM VP series, the YNT511D supports multiple input types (4–20 mA, 1–5 V, 0–10 V, thermocouple, RTD) and output formats (4–20 mA, 1–5 V, 0–10 V), making it suitable for diverse process control, monitoring, and data acquisition tasks. Its modular design and user-friendly LCD touch screen enable easy operation and integration into distributed control systems (DCS) or programmable logic controller (PLC) setups. The YNT511D prioritizes accuracy (±0.1% of full scale) and real-time performance, ensuring precise measurement and control in harsh industrial environments.
2. Product Parameters
| Parameter | Specification |
|---|---|
| Input Types | 4–20 mA, 1–5 V, 0–10 V, thermocouple, RTD |
| Output Types | 4–20 mA, 1–5 V, 0–10 V |
| Communication | Ethernet, Modbus, OPC, Profibus |
| Accuracy | ±0.1% of full scale |
| Resolution | Variable (dependent on input type) |
| Update Rate | Adjustable |
| Power Supply | 24V DC |
| Mounting | Panel mount |
| Display | LCD touch screen |
| Application | Process control, industrial automation, monitoring systems |

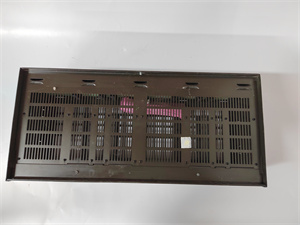

YNT511D
3. Advantages and Features
- High Precision: ±0.1% accuracy ensures reliable performance in critical processes.
- Versatile Connectivity: Supports multiple communication protocols (Modbus, Profibus) and I/O types, reducing the need for additional converters.
- User-Friendly Interface: LCD touch screen enables intuitive configuration and real-time monitoring.
- Compact Design: Panel-mounted form factor saves space in control panels while maintaining durability.
- Wide Compatibility: Seamless integration with Yokogawa’s CENTUM VP series and other industrial control systems.
4. Application Areas and Case Studies
- Industries: Manufacturing, energy, water treatment, chemical processing.
- Use Cases:
- Manufacturing: Monitoring and controlling production lines for real-time adjustments.
- Water Treatment: Managing pump systems and water quality sensors in distributed networks.
- Case Study: A pharmaceutical plant in China upgraded its DCS with the YNT511D to centralize control of 50+ temperature and pressure sensors. The device’s modular design and high accuracy reduced downtime by 20% and improved process consistency.
5. Competitive Comparison
Compared to similar process control instruments, the YNT511D stands out for:
- Integrated Communication: Built-in support for Ethernet and multiple industrial protocols, eliminating external gateway costs.
- Reduced Complexity: Single-unit design with configurable I/O, simplifying installation compared to multi-module solutions.
- Long-Term Reliability: Industrial-grade components and a one-year warranty ensure extended service life in demanding environments.
YNT511D
6. Selection Recommendations
- Compatibility: Verify compatibility with your existing DCS/PLC (e.g., Yokogawa CENTUM VP, Siemens S7 series).
- I/O Requirements: Match input/output types (e.g., analog vs. digital) to your sensor/actuator needs.
- Environment: Ensure the panel-mount design suits your control cabinet space and environmental conditions (temperature, humidity).
- Budget: Balance features (e.g., touch screen vs. basic display) with cost requirements.
7. Precautions
-
Installation: Follow Yokogawa’s wiring guidelines to avoid signal interference; ensure proper grounding.
-
Calibration: Regularly calibrate the device (every 1–2 years) to maintain accuracy.
-
Software Updates: Apply firmware updates provided by Yokogawa to address security patches and improve functionality.
-
Spare Parts: Keep a backup YNT511D module on hand to minimize downtime during replacements.
