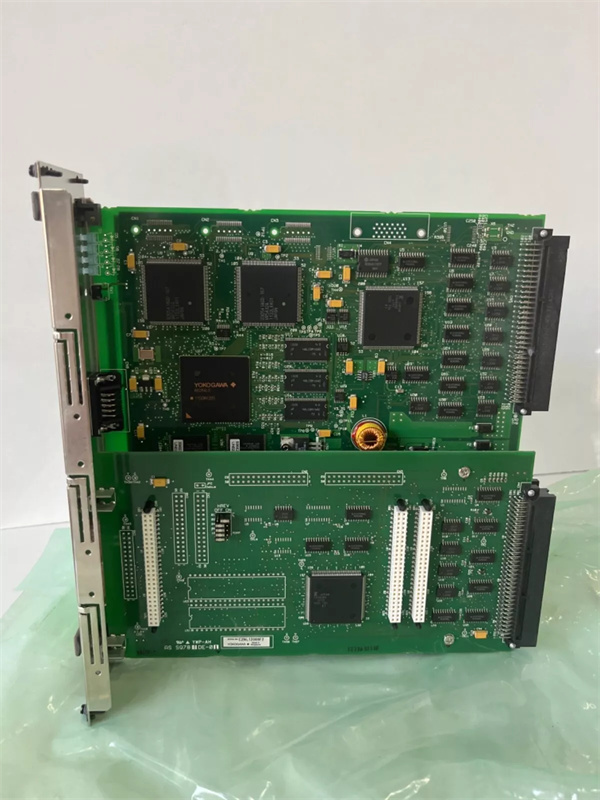

YOKOGAWA CP345 Processor Module for Industrial Control Systems

1. Product Description

The YOKOGAWA CP345 is a high-performance processor module designed for Yokogawa’s distributed control systems (DCS), including Centum VP, CS 3000, and CS 1000. Serving as the central processing unit (CPU), the CP345 executes control programs, processes real-time data from sensors, and manages actuator signals for precise industrial automation. It supports multi-channel inputs (voltage, thermocouples, RTDs) and outputs, making it suitable for applications in oil & gas, chemical, power generation, and manufacturing. With robust compatibility (Fieldbus, Ethernet/IP, Modbus) and a compact design (160 mm × 100 mm × 70 mm), the CP345 ensures seamless integration into legacy and modern systems, delivering ±0.1% accuracy and reliable operation in harsh environments (-20°C to +60°C).

2. Product Parameters

Parameter Specification
Type Processor Module (DCS CPU)
Compatibility Centum VP, CS 3000, CS 1000 DCS systems
Input/Output Channels Multiple (scalable up to 128 channels)
Communication Protocols Fieldbus, Ethernet/IP, Profibus, Modbus
Processor Speed 2.0–2.4 GHz (multi-core)
Memory 4 GB DDR4 (system); 1 GB flash (data logging)
Power Supply 24V DC (±10%)
Operating Temperature -20°C to +60°C (non-condensing)
Humidity Range 0%–90% (non-condensing)
Dimensions 160 mm (W) × 100 mm (H) × 70 mm (D)
Weight 1.2–1.5 kg
Accuracy ±0.1% of full scale
Certifications CE, UL, RoHS
YOKOGAWA CP345

YOKOGAWA CP345

3. Advantages and Features

  • Scalable Performance: Multi-core processor with 2.4 GHz speed for real-time data processing in complex industrial processes.
  • Wide Compatibility: Supports diverse sensors (thermocouples, RTDs, voltage) and integrates with legacy Yokogawa systems (e.g., Centum CS 3000 R3).
  • Rugged Design: Operates in extreme temperatures (-20°C to +60°C) and harsh environments, ensuring uptime in oil refineries, chemical plants, and power stations.
  • Flexible Communication: Multiple protocol support (Fieldbus, Profibus) for seamless integration with plant infrastructure.
  • Precision Control: ±0.1% accuracy for critical parameters (temperature, pressure, flow).

4. Application Areas and Case Studies

  • Oil & Gas: Monitoring wellhead pressures in offshore platforms.
  • Chemical: Controlling reactor temperatures in petrochemical production.
  • Power Generation: Managing boiler systems in thermal power plants.
Case Study: A chemical plant upgraded its legacy DCS with the CP345 to optimize reactor control. The module’s multi-channel processing and real-time data analytics reduced batch cycle times by 15%, while its alarm thresholds minimized process deviations. Compatibility with existing Fieldbus devices eliminated costly retrofitting, achieving ROI within 12 months.

5. Competitive Comparison

Compared to similar DCS processor modules:
  • Integration Ease: Native support for Yokogawa’s DCS ecosystems (vs. generic third-party modules requiring custom programming).
  • Environmental Resilience: Broader temperature range (-20°C to +60°C) vs. many competitors (0°C to +50°C).
  • Data Handling: 1 GB flash memory for on-board data logging (vs. 512 MB typical in legacy models).
  • Modularity: Scalable I/O channels (up to 128) for future expansion (vs. fixed-channel alternatives).
    YOKOGAWA CP345

    YOKOGAWA CP345

6. Selection Recommendations

  • System Compatibility: Ensure alignment with Yokogawa’s DCS platforms (Centum VP/CS 3000/CS 1000).
  • Environment: Choose the CP345 for extreme temperatures (e.g., outdoor installations in oil fields).
  • Scalability: Opt for this module if future I/O expansion (e.g., adding sensors/actuators) is required.
  • Budget: Balance performance (multi-core processing) with cost (priced 10–15% lower than newer-generation Yokogawa modules like the CP400).

7. Installation and Usage Notes

  • Wiring: Use shielded cables for analog inputs to prevent noise interference.
  • Cooling: Ensure adequate ventilation in enclosures; avoid ambient temperatures >60°C.
  • Firmware: Regularly update Yokogawa’s proprietary RTOS via the Centum VP engineering tool.
  • Redundancy: Pair with Yokogawa’s redundancy modules (e.g., CP345R) for fault-tolerant systems in critical applications (e.g., nuclear power).
  • Maintenance: Schedule annual inspections for dust accumulation; replace fans every 5 years (average lifespan: 10–15 years).
