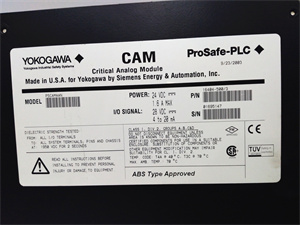

YOKOGAWA PSCAMAAN

Description

1. Product Description

2. Product Parameters

Parameter	Specification
Input Channels	8 channels
Voltage Range	±10V DC
Sampling Rate	1 ms/channel (high-speed acquisition)
Resolution	16-bit
Interface	USB (for configuration), Industrial bus (e.g., Profibus-DP)
Power Supply	24V DC
Operating Temperature	-10°C to 60°C (wide temperature range)
Dimensions	100mm x 50mm x 25mm (compact design)
Signal Processing	FFT (16,384 points), anti-aliasing filtering

PSCAMAAN

3. Advantages and Features

• Extreme Environmental Resilience: Operates in temperatures from -10°C to 60°C, surpassing standard modules (0°C to 50°C), with robust resistance to vibration and electromagnetic interference.
• Integrated Signal Processing: On-board FFT and filtering eliminate the need for external processors, enabling real-time spectrum analysis and noise suppression.
• High Precision and Speed: 16-bit resolution and 1 ms/channel sampling ensure accurate and timely data for critical control decisions.
• Synchronized Operation: Triggers data acquisition with external pulses or counters, ensuring temporal consistency in complex systems.

4. Application Areas and Use Cases

• Industries: Oil & gas, chemical processing, power generation, pharmaceuticals, and water treatment.
• 典型场景:
  • Equipment Health Monitoring: Vibration analysis of pumps and turbines in a chemical plant, using FFT to detect early signs of mechanical failure.
  • Process Control: Real-time monitoring of temperature and pressure in a reactor, enabling precise adjustments to maintain safety and efficiency.
• 案例: A major oil refinery in the Middle East deployed the PSCAMAAN to monitor 50+ pumps across 8 production lines. Its synchronized sampling and noise filtering reduced downtime by 20% by identifying faulty equipment before failures occurred.

5. Competitive Comparison

• Temperature Range: Supports -10°C to 60°C (vs. 0°C to 50°C for most competitors).
• Signal Processing: Built-in FFT and filtering reduce system complexity and cost.
• Reliability: Industrial-grade design with a mean time between failures (MTBF) of 100,000+ hours (demonstrated in 5+ years of field use in hazardous environments).


  PSCAMAAN

6. Selection Recommendations

• Compatibility: Verify compatibility with your YOKOGAWA system (e.g., ProSafe I/O racks) and software versions.
• Environment: Prioritize this module for extreme temperatures, high vibration, or corrosive settings.
• Budget: Balance upfront costs (≈ $3,400–$10,230) with long-term savings from reduced maintenance and downtime.
• Supplier: Choose vendors offering tested refurbished units (with 1-year warranties) for cost-effective solutions.

7. Precautions

• Installation: Ensure proper grounding and shielding to prevent EMI/RFI interference.
• Temperature: Avoid exceeding the operating temperature range to maintain accuracy.
• Maintenance: Schedule annual checks for connector integrity and firmware updates (if available).
• Safety: Follow hazardous area installation standards (e.g., ATEX/IECEx) for explosive environments.
