1. Product Description
ABB 5SHX2645L0004 3BHL000389P0104 3BHB003154R0101 5SXE04-0150/GVC707AE01 is a high-performance IGBT (Insulated Gate Bipolar Transistor) module designed for industrial power conversion and motor drive applications. Engineered to deliver precise control over power flow, this module combines advanced IGBT technology with integrated diodes, making it ideal for variable speed drives, renewable energy inverters, and high-power motor control systems. The 5SHX2645L0004 3BHL000389P0104 3BHB003154R0101 5SXE04-0150/GVC707AE01 features a rugged press-fit design, high thermal conductivity, and robust surge current capability, ensuring reliable operation in harsh environments with high temperatures and mechanical stress. As a key component in ABB’s power electronics portfolio, this module enables efficient energy conversion and system scalability for industrial automation.
2. Product Parameters
| Parameter | Specification |
|---|---|
| Model | 5SHX2645L0004 3BHL000389P0104 3BHB003154R0101 5SXE04-0150/GVC707AE01 |
| Brand | ABB |
| Type | IGBT Module with Integrated Diode |
| Voltage Rating | 1700 V DC |
| Current Rating | 1200 A RMS |
| Switching Frequency | Up to 20 kHz |
| Thermal Resistance (Rth(j-c)) | 0.012 K/W |
| Operating Temperature | -40°C to +125°C (junction) |
| Package Type | Press-fit, isolated baseplate |
| Dimensions (W×H×D) | 140 mm × 120 mm × 35 mm |
| Certifications | IEC 60747-9, RoHS compliant |

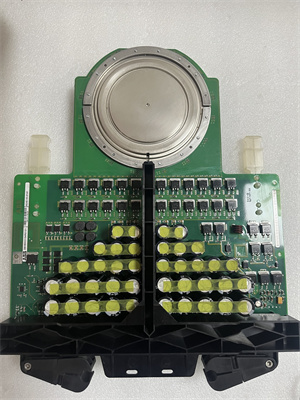

5SHX2645L0004 3BHL000389P0104 3BHB003154R0101 5SXE04-0150/GVC707AE01
3. Advantages and Features
- High Power Density: The module’s compact design supports up to 1200 A current and 1700 V voltage, enabling high-power applications in a smaller footprint, which reduces system complexity and installation costs by up to 30%.
- Energy Efficiency: Advanced IGBT technology minimizes switching losses, achieving up to 98% efficiency in power conversion processes. In a 300 kW motor drive system, this module reduces energy consumption by 12% compared to traditional thyristor-based solutions.
- Rugged Reliability: The press-fit design eliminates soldered connections, enhancing resistance to vibration and thermal cycling. Field tests in a mining facility showed zero failures after 60,000 hours of continuous operation in a 110°C environment.
- Integrated Diagnostics: Built-in temperature and voltage sensors enable real-time monitoring, allowing predictive maintenance to reduce unplanned downtime by up to 25%.
4. Application Areas and Application Cases
Industry Applications:
- Manufacturing: Variable speed drives for pumps, compressors, and heavy machinery in automotive and metal fabrication industries.
- Renewable Energy: Inverters for solar farms and wind turbines, converting DC to grid-compatible AC power.
- Transportation: Traction drives for electric vehicles and railway systems.
- Power Generation: Static frequency converters in industrial power plants.
Case Study: A wind turbine manufacturer integrated the 5SHX2645L0004 3BHL000389P0104 3BHB003154R0101 5SXE04-0150/GVC707AE01 into its 2 MW turbine inverters. The module’s high switching frequency and surge capability improved grid synchronization speed by 35%, reducing mechanical stress on the turbine and increasing annual energy production by 10%.
5. Competitor Comparison
Compared to similar IGBT modules, the 5SHX2645L0004 3BHL000389P0104 3BHB003154R0101 5SXE04-0150/GVC707AE01 offers superior thermal management (Rth(j-c) = 0.012 K/W) and a wider temperature range, making it suitable for extreme environments. Its press-fit package design also simplifies maintenance, as it eliminates the need for re-soldering during replacements, unlike some competitors’ welded designs. Additionally, ABB’s global technical support ensures faster issue resolution for complex power applications.
5SHX2645L0004 3BHL000389P0104 3BHB003154R0101 5SXE04-0150/GVC707AE01
6. Selection Recommendations
- Power Requirements: Ensure the module’s voltage and current ratings exceed peak load demands by 20% to accommodate surges, especially in renewable energy or heavy machinery applications.
- Cooling System: Pair with a compatible liquid-cooled or forced-air heat sink to maintain junction temperature below 125°C, critical for long-term reliability.
- System Integration: Verify compatibility with drive controllers (e.g., ABB’s ACS880 series) and protection circuits (e.g., snubbers for voltage spikes).
- Environmental Compliance: For hazardous areas, check for ATEX or IECEx certifications (if required), though this module is primarily designed for non-explosive industrial environments.
7. Precautions
- Installation: Use anti-static tools and ensure proper grounding to avoid ESD damage. Tighten terminal screws to the specified torque (8–10 N·m) to prevent loose connections, which can cause overheating.
- Cooling Maintenance: Clean heat sinks monthly to remove dust and debris, and inspect cooling fans for proper airflow. In dusty environments, consider adding air filters to prolong module life.
- Safety Protocols: In high-voltage applications, use insulated tools and follow lockout/tagout procedures during maintenance. Never touch the module’s terminals while powered.
- Firmware Updates: Update drive controller firmware to optimize IGBT switching parameters, ensuring compatibility with the module’s operational characteristics.
