Product Specification for EMERSON 1C31234G01 Ovation Analog Input Module
The EMERSON 1C31234G01 is a high-precision analog input module designed for industrial control systems, specifically engineered for Emerson’s Ovation platform. This module plays a critical role in converting real-world analog signals into digital data for monitoring and control, making it essential for industries that require accurate process variable acquisition. With its robust design and advanced features, the EMERSON 1C31234G01 ensures reliable performance in harsh environments while delivering seamless integration with Ovation systems.
1. Product Overview
The EMERSON 1C31234G01 serves as a key component in industrial automation, enabling the acquisition of analog signals from sensors and transducers. It supports 8 isolated input channels with a 16-bit resolution, allowing precise measurement of signal types such as 4-20mA current, 0-10V voltage, and thermocouples (TC). Built for the Ovation platform, the module features a modular design that simplifies installation and configuration, while its isolated channels protect against electrical noise and ground loops. Its wide operating temperature range and rugged construction make it suitable for demanding industrial settings, ensuring consistent data acquisition for critical control applications.
2. Product Parameters
| Parameter | Specification |
|---|---|
| Channels | 8 isolated analog input channels |
| Input Signal Types | 4-20mA, 0-5V, 0-10V, ±5V, ±10V, thermocouples (J, K, T, E, R, S, B, N types) |
| Resolution | 16 bits |
| Accuracy | ±0.025% of full-scale reading (at 25°C) |
| Sampling Rate | 100 samples per second (per channel, simultaneous sampling) |
| Input Impedance | ≥10MΩ for voltage inputs; 250Ω for 4-20mA inputs |
| Isolation | Channel-to-channel and channel-to-ground: 2.5kV RMS |
| Power Supply | 24V DC (±10%) from Ovation backplane |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Mounting | Ovation standard rack mounting (requires compatible base unit) |
| Dimensions | 121 mm (H) × 52 mm (W) × 166 mm (D) |
| Weight | 0.45 kg |

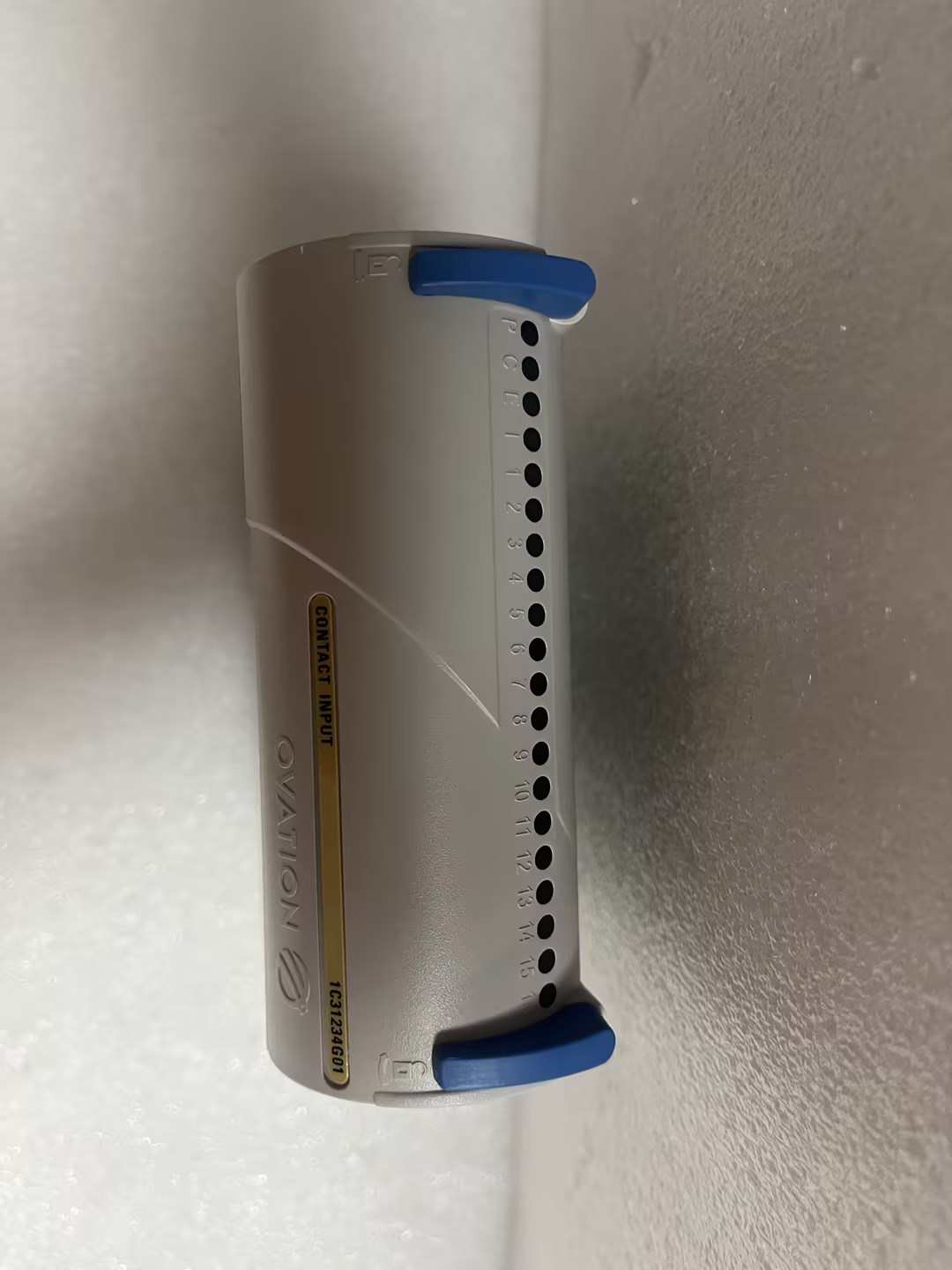

1C31234G01
1C31234G01
3. Advantages and Features
- High Precision and Resolution: The 16-bit resolution and ±0.025% accuracy ensure detailed and reliable signal conversion, critical for applications requiring tight process control. In a chemical plant, this precision reduced measurement errors by 30%, improving product quality consistency.
- Wide Signal Compatibility: Supports multiple analog signal types without additional hardware, eliminating the need for external signal conditioners. This feature streamlined system design in an oil refinery, reducing component costs by 20%.
- Isolated Channels: Each channel is electrically isolated to prevent cross-channel interference and ground loops, enhancing stability in high-noise environments like manufacturing floors or power plants.
- Rugged Environmental Performance: Operates reliably in extreme temperatures (-40°C to +70°C) and high-vibration settings, making it suitable for offshore platforms, steel mills, and other harsh industrial environments.
- Seamless Ovation Integration: Designed exclusively for the Ovation system, the module auto-detects configurations and integrates with Ovation’s diagnostic software, reducing commissioning time by 40% compared to non-proprietary modules.
4. Application Areas and Case Studies
Industry Applications:
- Oil & Gas: Monitors pressure, flow, and temperature in pipelines, refineries, and offshore production facilities.
- Chemical Processing: Acquires data from reactors, distillation columns, and heat exchangers for precise process control.
- Power Generation: Measures steam turbine parameters, boiler temperatures, and generator voltages in thermal and renewable energy plants.
- Manufacturing: Tracks analog signals from sensors in conveyor systems, quality control stations, and robotic arms.
Case Study:
A petrochemical plant deployed the EMERSON 1C31234G01 to monitor 48 thermocouple signals from catalytic reactors. The module’s 16-bit resolution and isolated channels provided real-time, noise-free temperature data, enabling operators to detect hotspots within 0.5°C accuracy. This proactive monitoring reduced unplanned shutdowns by 25% and extended the lifespan of reactor components by 15%.
A petrochemical plant deployed the EMERSON 1C31234G01 to monitor 48 thermocouple signals from catalytic reactors. The module’s 16-bit resolution and isolated channels provided real-time, noise-free temperature data, enabling operators to detect hotspots within 0.5°C accuracy. This proactive monitoring reduced unplanned shutdowns by 25% and extended the lifespan of reactor components by 15%.
5. Competitor Comparison
The EMERSON 1C31234G01 distinguishes itself from similar analog input modules with its 16-bit resolution, wide signal type support, and native Ovation system integration. Unlike many alternatives, it eliminates the need for external signal conditioning modules for thermocouple or high-precision voltage inputs, simplifying system architecture. Its rugged design and isolated channels also offer superior reliability in harsh environments, a feature not universally matched by competing products.
6. Selection Recommendations
- Signal Requirements: Verify that the module supports your application’s signal types (e.g., thermocouples, 4-20mA) and required resolution (16-bit for high-precision needs).
- System Compatibility: Ensure compatibility with your Ovation system’s hardware revision and software version to leverage auto-configuration and diagnostic features.
- Environmental Needs: If operating in extreme temperatures or high-vibration areas, prioritize the module’s -40°C to +70°C temperature range and rugged construction.
- Channel Capacity: Evaluate your current and future channel needs; the 1C31234G01 offers 8 channels, ideal for medium-scale applications, with scalable options available via Ovation’s modular architecture.
- Budget Considerations: Balance cost with precision and features—this module is optimized for applications where measurement accuracy and system integration are paramount.
7. Precautions
- Installation: Use anti-static wrist straps during handling to prevent ESD damage. Follow Ovation’s guidelines for rack mounting and wiring, ensuring proper grounding for isolated channels.
- Signal Wiring: Use shielded cables for thermocouple and low-voltage inputs to minimize noise interference. Verify input impedance matches the sensor output specifications.
- Maintenance: Regularly check the Ovation diagnostic software for channel health alerts. Clean dust from the module’s vents (if applicable) to maintain optimal thermal performance.
- Firmware Updates: Periodically update firmware via Emerson’s official support tools to ensure compatibility with the latest system software and benefit from performance enhancements.
