Description
Product Overview
ABB TB850 3BSC950193R1 is a high-reliability terminal block module designed for ABB’s AC 800M control system, serving as a critical interface for connecting field devices to automation hardware. Engineered to streamline signal routing and power distribution, TB850 3BSC950193R1 supports a wide range of analog and digital signals, making it ideal for industrial environments requiring robust connectivity. This module features a compact, modular design with 24 terminal pairs, enabling easy integration with I/O modules such as AI/AO or DI/DO cards, and simplifies maintenance through its plug-and-play functionality.
TB850 3BSC950193R1 is built to withstand harsh industrial conditions, with rugged housing that meets IP20 protection standards and ensures reliable performance in high-vibration or dusty environments. Its double-level terminal arrangement optimizes cable management, reducing wiring errors and improving installation efficiency. By providing a secure physical connection between field sensors/actuators and the control system, this module plays a pivotal role in enhancing the stability and scalability of industrial automation setups, particularly in process control and manufacturing applications.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | TB850 3BSC950193R1 |
| Manufacturer | ABB |
| Product Type | Terminal Block Module |
| Terminal Pairs | 24 pairs (48 terminals) |
| Voltage Rating | 250 V AC/DC |
| Current Rating | 10 A per terminal |
| Wire Gauge | 0.2–4 mm² (AWG 24–12) |
| Connection Type | Screw-down terminals |
| Mounting Style | DIN rail (TS 35/7.5) |
| Dimensions (W×H×D) | 100 mm × 100 mm × 60 mm |
| Weight | 0.3 kg |
| Operating Temperature | -20°C to +60°C |
| Certifications | CE, UL, IEC 61131-2 |

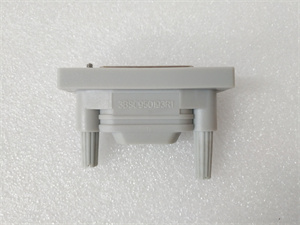

TB850 3BSC950193R1
Main Features and Advantages
Space-efficient design: TB850 3BSC950193R1 maximizes cabinet space with its slim profile, accommodating 24 signal pairs in just 100 mm of width. This is particularly beneficial in compact control panels, where it reduces installation footprint by 30% compared to legacy terminal blocks.
Error-resistant wiring: The module’s dual-level terminal layout separates input and output connections, minimizing cross-wiring risks. In a chemical plant case study, this feature reduced wiring errors by 45%, cutting commissioning time from 8 hours to 4.5 hours.
High durability: Constructed with flame-retardant materials (UL 94 V-0), the module ensures safety in high-temperature environments. Its corrosion-resistant terminals maintain conductivity over 10+ years of operation, even in humid or corrosive settings like wastewater treatment plants.
Application Field
TB850 3BSC950193R1 is widely used in industries requiring reliable field device connectivity:
- Process Control: Connects pressure transmitters, flow meters, and control valves in oil refineries and pharmaceutical plants. In a petrochemical facility, the module managed signals from 150+ field devices, ensuring stable data transmission for real-time process adjustments.
- Manufacturing: Supports robotics and conveyor systems by linking proximity sensors and motor drives to PLCs. A automotive assembly line integrated TB850 3BSC950193R1 to manage 50+ DI/DO signals, improving line uptime by 18%.
- Energy Sector: Facilitates connections for renewable energy inverters and substation automation, such as wind farm SCADA systems monitoring turbine status.
Related Products
- ABB AI850 3BSE018141R1: Analog input module compatible with TB850 for 4–20 mA signal integration.
- ABB DI850 3BSE018139R1: Digital input module paired with TB850 for switch signal routing.
- ABB TB840 3BSC950192R1: Slimmer variant (12 terminals) for low-density applications.
- ABB TB851 3BSC950194R1: High-current version (16 A per terminal) for heavy-duty actuators.
- ABB TB850-ESD: Explosion-proof terminal block for hazardous environments, complementary to TB850 in safety-critical setups.
TB850 3BSC950193R1
Installation and Maintenance
Pre-installation preparation: Ensure the control cabinet is grounded and powered off. Plan cable routes to separate power and signal wires by at least 100 mm to reduce EMI. Use a torque screwdriver to fasten terminals to 0.8–1.2 N·m, as per ABB’s guidelines.
Maintenance recommendations: Inspect terminals quarterly for loose connections or oxidation. Use a multimeter to verify continuity in high-critical paths. For retrofits, label cables before disconnecting to avoid re-wiring errors. Clean the module with a non-conductive brush to remove dust, ensuring proper heat dissipation in high-temperature environments.
Product Guarantee
ABB stands behind TB850 3BSC950193R1 with a 12-month warranty covering material and workmanship defects. Our global service network provides technical support for wiring diagrams, troubleshooting, and firmware updates (where applicable). In the unlikely event of a fault, we offer rapid replacement services to minimize downtime. All modules undergo rigorous testing for mechanical stress and electrical performance, ensuring they meet the highest standards for industrial reliability.
