Description
1. Product Description
TRICONEX 3008N is a high-performance analog input module designed by TRICONEX, a leading provider of safety-critical automation solutions. Engineered for use in triple modular redundancy (TMR) systems, the 3008N accurately measures and processes analog signals from field devices, ensuring reliable data acquisition in industrial environments where safety and precision are paramount. This module is optimized for applications requiring continuous monitoring of variables such as temperature, pressure, and flow rate, delivering stable performance even in harsh conditions. As a key component of TRICONEX’s TMR architecture, the 3008N enhances system integrity by incorporating built-in diagnostics and fault tolerance, making it an ideal choice for industries with strict safety standards.
2. Product Parameters
| Parameter | Details |
|---|---|
| Module Type | 8-Channel Analog Input Module |
| Signal Types | 4-20 mA, 0-10 VDC, RTD (Pt100, Pt200), Thermocouple (J, K, T, E, R, S) |
| Resolution | 16-bit analog-to-digital conversion |
| Accuracy | ±0.1% of full-scale range |
| Redundancy | TMR (Triple Modular Redundancy) with self-testing |
| Operating Voltage | 24 VDC ±10% |
| Temperature Range | -40°C to +85°C |
| Channel Isolation | Galvanic isolation between channels and system bus |
| Update Rate | <5 ms per channel |
| Certifications | IEC 61508 (SIL 3), CE, UL, ATEX (Zone 2/22) |

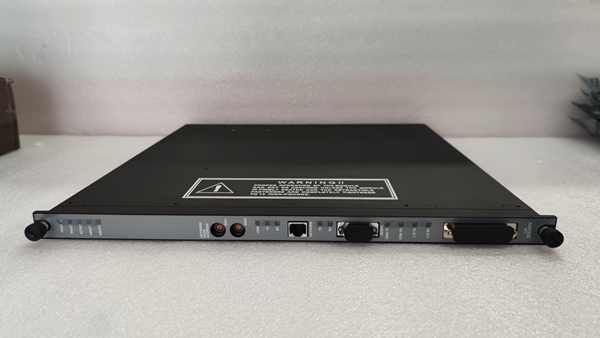

TRICONEX 3008N
3. Advantages and Features
The TRICONEX 3008N stands out for its TMR architecture, which provides three independent signal paths for each channel, significantly reducing the risk of single-point failures. This design has been proven to achieve a hardware fault tolerance (HFT) of 1, ensuring system availability even when one channel experiences a fault. The module’s wide signal compatibility eliminates the need for multiple specialized modules, as it supports both current/voltage inputs and temperature sensors (RTDs, thermocouples). Its advanced diagnostics continuously monitor channel health, with built-in self-tests (BIST) that detect faults like open circuits or short circuits, reducing mean time to repair (MTTR) by up to 50%. Additionally, the hot-swappable design allows for online replacement without disrupting system operation, minimizing downtime in critical applications.
4. Application Areas and Cases
The 3008N is widely used in industries requiring precise analog signal monitoring and safety compliance, including:
- Oil and Gas: Monitoring wellhead pressures, pipeline flow rates, and tank levels in upstream and downstream operations.
- Chemical Processing: Measuring reactor temperatures and distillation column pressures in petrochemical plants.
- Power Generation: Capturing analog data from turbines, boilers, and environmental control systems in thermal and nuclear power stations.
Case Study: A major LNG facility integrated the TRICONEX 3008N into its safety instrumented system (SIS) to monitor cryogenic fluid temperatures. The module’s TMR redundancy and fast update rate enabled real-time detection of a critical temperature spike in a storage tank, triggering an automatic shutdown and preventing a potential safety incident. This implementation reduced false trips by 30% compared to non-redundant systems, enhancing operational efficiency.
5. Competitor Comparison
Compared to other analog input modules, the 3008N offers superior safety integrity with its SIL 3 certification and TMR architecture, a combination rarely matched by competitors. Its multisignal capability reduces inventory costs by consolidating multiple sensor types into a single module, unlike many single-function alternatives. The module’s industry-leading diagnostics provide more detailed fault information, enabling faster troubleshooting, while its rugged construction ensures reliable operation in extreme environments where non-TMR modules might suffer from signal drift or hardware failures.

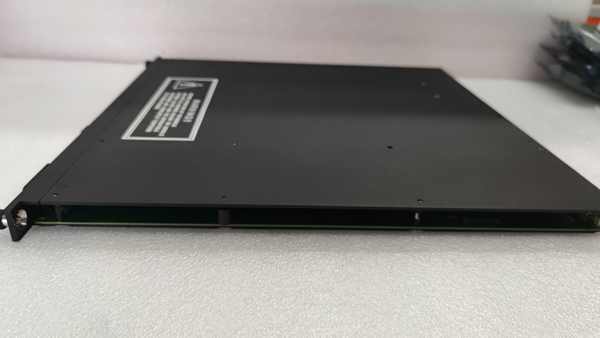

TRICONEX 3008N
6. Selection Recommendations
When considering the TRICONEX 3008N, evaluate:
- Signal Requirements: Confirm compatibility with your field devices’ output signals (e.g., 4-20 mA, RTD) and ensure sufficient channel count for your application.
- Safety Level: Choose the module if your system requires SIL 3 compliance or fault tolerance for high-risk processes.
- Environmental Demands: Verify the module’s temperature and vibration resistance for harsh environments (e.g., offshore platforms, steel mills).
- System Integration: Ensure compatibility with TRICONEX’s TMR controllers and software tools for seamless configuration and diagnostics.
7. Precautions
- Cabling: Use shielded twisted-pair cables for analog signals to minimize electromagnetic interference (EMI), following TRICONEX’s wiring guidelines.
- Grounding: Properly ground the module and field devices to prevent ground loops that could distort signal accuracy.
- Calibration: Regularly calibrate the module using TRICONEX’s recommended procedures to maintain measurement precision (recommended interval: every 12 months).
- Firmware Management: Keep firmware updated to address compatibility issues or enhance functionality, using TRICONEX Workbench software.
- Hazardous Areas: In explosive environments, ensure the module’s ATEX certification aligns with the installation’s zone classification (e.g., Zone 2 for gas).
