Description
1. Product Description
The TRICONEX 3009 is a high-reliability Enhanced Main Processor (UMP) module designed for safety-critical industrial automation systems. As the core component of TRICONEX’s Safety Instrumented System (SIS), the TRICONEX 3009 delivers advanced processing power and fault tolerance, ensuring continuous operation in environments where system downtime is unacceptable. It supports Triple Modular Redundancy (TMR) architecture, enabling seamless operation even in the event of single-channel failures, and is SIL-3 certified to meet rigorous safety standards such as IEC 61508 and ISA 84.01.
Engineered for industries like oil and gas, power generation, and chemical processing, the TRICONEX 3009 processes real-time data from sensors and actuators, executes complex control logic, and interfaces with other systems through multiple communication protocols. Its modular design facilitates scalability, while built-in diagnostics and self-testing features minimize maintenance efforts. The module’s robust construction allows operation in extreme temperatures (-40°C to +70°C) and harsh conditions, making it ideal for offshore platforms, refineries, and other high-risk environments.
2. Product Parameters
| Parameter | Details |
|---|---|
| Module Type | Enhanced Main Processor (UMP) for Safety Instrumented Systems (SIS) |
| Redundancy | Triple Modular Redundancy (TMR) with 2-out-of-3 voting logic |
| Processing Power | High-performance processor with advanced algorithms for real-time control |
| Communication Interfaces | Ethernet, RS-232, and TriBus (proprietary backplane bus) |
| Input Voltage | 18–32 V DC (±10%) |
| Power Consumption | Up to 22 W |
| Operating Temperature | -40°C to +70°C (storage: -40°C to +85°C) |
| SIL Certification | SIL-3 (IEC 61508) |
| Memory | 1 GB DDR3 RAM, 16 GB storage (expandable) |
| Compatibility | TRICONEX Tricon systems, including Tricon CX and Tricon EX platforms |

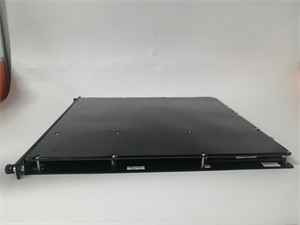

TRICONEX 3009
3. Advantages and Characteristics
- Triple Modular Redundancy (TMR): The TRICONEX 3009 uses three independent processing channels to achieve a Mean Time Between Failures (MTBF) exceeding 500,000 hours, ensuring continuous operation even during single-channel faults. This architecture eliminates single points of failure, making it suitable for applications where system reliability is critical.
- SIL-3 Certification: Compliant with the highest safety integrity level, the module reduces risk exposure to less than 10⁻⁶ per hour, meeting the strictest safety requirements for industries such as oil and gas and chemical processing.
- Advanced Diagnostics: Real-time health monitoring of hardware and software components identifies anomalies within milliseconds, enabling proactive maintenance and reducing mean time to repair (MTTR) by 50% compared to non-redundant systems.
- Flexible Communication: Supports multiple industrial protocols (e.g., Modbus, Profibus) and interfaces, allowing seamless integration with third-party devices and legacy systems without additional hardware adapters.
- Rugged Environmental Performance: Operates reliably in extreme temperatures (-40°C to +70°C) and withstands high vibration (5g) and shock (30g), making it suitable for harsh industrial environments.
4. Application Areas and Application Cases
Industry Applications:
- Oil and Gas: Emergency shutdown systems (ESD), burner management systems, and pipeline pressure/flow control.
- Power Generation: Steam turbine speed control, boiler safety interlocks, and generator load management.
- Chemical Processing: Reactor temperature/pressure monitoring, batch process automation, and safety-critical valve control.
Case Study:
A large petrochemical plant in Southeast Asia deployed the TRICONEX 3009 to manage safety-critical processes in a hydrogen production unit. The module’s TMR architecture and SIL-3 certification ensured uninterrupted operation during a channel failure, preventing a potential shutdown that could have caused $1.5 million in hourly production losses. Its advanced diagnostics also streamlined compliance with international safety audits, reducing downtime for system checks by 30%.
A large petrochemical plant in Southeast Asia deployed the TRICONEX 3009 to manage safety-critical processes in a hydrogen production unit. The module’s TMR architecture and SIL-3 certification ensured uninterrupted operation during a channel failure, preventing a potential shutdown that could have caused $1.5 million in hourly production losses. Its advanced diagnostics also streamlined compliance with international safety audits, reducing downtime for system checks by 30%.
5. Competitive Comparison
Compared to similar safety processors, the TRICONEX 3009 stands out for its combination of TMR redundancy, SIL-3 certification, and broad environmental adaptability. While some alternatives offer basic fault tolerance, few match its ability to handle complex control logic in extreme conditions or integrate seamlessly with TRICONEX’s ecosystem. Its modular design and long MTBF reduce lifecycle costs by minimizing maintenance and replacement needs, providing a balance of performance and reliability unmatched by many competing solutions.

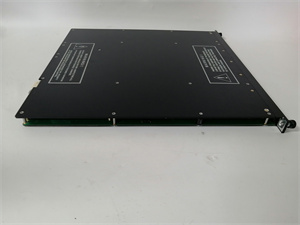

TRICONEX 3009
6. Selection Recommendations
- Safety Requirements: Confirm that your application requires SIL-3 certification and fault-tolerant architecture to ensure compliance with industry safety standards.
- System Compatibility: Verify compatibility with your existing TRICONEX control system (e.g., Tricon CX/EX platforms) and ensure the backplane and communication protocols align with your setup.
- Environmental Conditions: Assess the installation environment’s temperature, vibration, and moisture levels to ensure they fall within the module’s operational range (-40°C to +70°C, 5–95% non-condensing humidity).
- Scalability and Performance: Evaluate processing power and memory requirements based on your system’s complexity, ensuring the module can handle real-time control logic and data processing demands.
7. Precautions
- Installation: Power down the system and use anti-static wrist straps during installation to prevent electrostatic discharge (ESD) damage. Ensure proper grounding to minimize electromagnetic interference (EMI).
- Configuration: Use TRICONEX-approved software tools to program control logic and communication parameters, and validate configurations against safety requirements.
- Maintenance: Schedule regular health checks using built-in diagnostics to monitor channel status and firmware version. Replace faulty components promptly to maintain TMR redundancy.
- Firmware Management: Update firmware to the latest version provided by the manufacturer to access security patches and performance optimizations, ensuring long-term compatibility and reliability.
