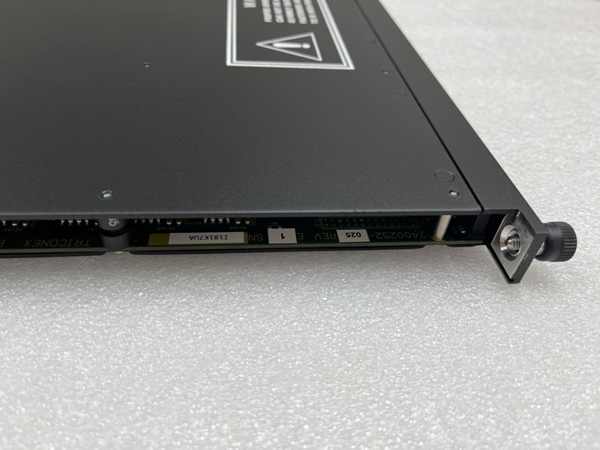

TRICONEX 3503E

Description

1. Product Description

2. Product Parameters

Parameter	Specification
Module Type	Digital Input Module for TMR systems
Power Supply	24V DC (±10%)
Input Channels	32 isolated digital input channels
Input Signal Type	Contact closure or voltage level (e.g., 24V DC)
Input Impedance	220 kΩ
Response Time	≤10 ms
Input Frequency Range	DC to 47.63 Hz
Redundancy	Triple Modular Redundancy (TMR) with 2-out-of-3 voting
Operating Temperature	-40°C to +70°C (storage: -45°C to +85°C)
Humidity	0% to 95% non-condensing
SIL Certification	SIL-3 (IEC 61508)
Compatibility	TRICONEX Triplex control systems, Tricon Vx platforms
Commoning	Inputs are commoned in groups of 8
EMC Compliance	Meets IEC 61000 – 4 – 2, IEC 61000 – 4 – 3, and IEC 61000 – 4 – 6 standards

TRICONEX 3503E

3. Advantages and Characteristics

• Triple Modular Redundancy (TMR): The TRICONEX 3503E utilizes TMR technology, achieving a mean time between failures (MTBF) exceeding 250,000 hours. This redundancy ensures that even if one of the three channels fails, the module can still provide accurate input data, reducing the risk of unplanned downtime by up to 90% compared to non-redundant modules.
• Fast Response: With a response time of ≤10 ms, it enables rapid detection and processing of input signal changes. In a manufacturing plant, this quick response helps in immediately reacting to safety interlock activations, preventing potential accidents.
• Isolated Channels: The 32 isolated input channels prevent cross-talk and electrical interference between different signals, ensuring accurate signal reception. In a noisy industrial environment, this isolation significantly improves the reliability of the input data.
• Built-in Diagnostics: The module has comprehensive built-in diagnostics that can detect faults in individual channels, power supply issues, or communication problems. These diagnostics reduce troubleshooting time by up to 50% as they quickly pinpoint the source of the problem, allowing for faster repairs.
• Wide Temperature Range: It can operate in temperatures ranging from -40°C to +70°C, making it suitable for use in extreme environments such as cold storage facilities or high-temperature industrial processes.

4. Application Areas and Application Cases

• Industry Applications:
  • Oil and Gas: Used to monitor the status of valves, pumps, and safety devices in offshore platforms and onshore refineries. For example, it can detect the open/closed state of emergency shutdown valves to ensure safety in case of an abnormal situation.
  • Chemical Processing: Monitors safety interlocks, such as the status of pressure relief valves and temperature sensors in chemical reactors, to prevent hazardous situations and ensure the smooth operation of the production process.
  • Power Generation: Applied in turbine control systems to monitor the position of steam valves, the status of generator circuit breakers, and other critical components, ensuring the stable operation of the power plant.
  • Manufacturing: Used to monitor the operation status of conveyor belts, robotic arms, and other production equipment, enabling real-time control and quality management.
• Case Study: In a large petrochemical plant, the TRICONEX 3503E was installed to monitor over 200 digital signals from various sensors and switches in the production process. The TMR technology of the module ensured that even when one of the channels experienced a fault due to electrical interference, the system continued to operate without interruption. The built-in diagnostics quickly identified the faulty channel, and maintenance personnel were able to replace the component during a planned outage, preventing any unplanned shutdowns and saving the plant millions of dollars in potential production losses.

5. Competitive Comparison

Compared to similar digital input modules in the market, the TRICONEX 3503E stands out due to its combination of TMR redundancy, fast response time, and comprehensive diagnostics. Many competing products may offer basic digital input functionality but lack the advanced redundancy features that the TRICONEX 3503E provides. This makes the TRICONEX 3503E a more reliable choice for safety-critical applications. Additionally, its wide operating temperature range and isolation of channels give it an edge over products that are less adaptable to harsh environments and prone to signal interference.

TRICONEX 3503E

6. Selection Recommendations

• System Compatibility: Ensure that the TRICONEX 3503E is compatible with your existing TRICONEX control system, including the backplane and software versions. This is crucial for seamless integration and proper operation.
• Input Requirements: Determine the number and type of digital input signals you need to monitor. The TRICONEX 3503E has 32 channels, so make sure it meets your application’s requirements. Also, verify that the input signal types (e.g., contact closure, voltage level) are compatible with your field devices.
• Environmental Conditions: Consider the operating environment of the module. If it will be used in an environment with extreme temperatures, high humidity, or strong electromagnetic interference, ensure that the TRICONEX 3503E can withstand these conditions.
• Safety Standards: For applications where safety is a priority, such as those with SIL-3 requirements, confirm that the TRICONEX 3503E meets the relevant safety standards (IEC 61508).

7. Precautions

• Installation: Power down the system and use anti-static wrist straps during installation to prevent electrostatic discharge (ESD) damage. Ensure proper grounding of the module to minimize electromagnetic interference.
• Wiring: Double-check all wiring connections to ensure they are correct and secure. Incorrect wiring can lead to inaccurate input readings or damage to the module.
• Maintenance: Regularly check the module’s diagnostic status to monitor for any potential faults or issues. Update the module’s firmware as recommended by the manufacturer to ensure optimal performance and security.
• Environmental Protection: Protect the module from exposure to excessive dust, moisture, and corrosive substances. If necessary, use enclosures or other protective measures to maintain its performance.
