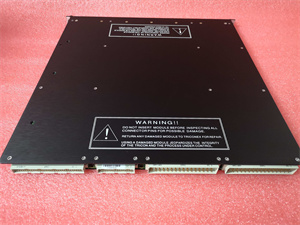

TRICONEX 3721C
TRICONEX 3721C
TRICONEX 3721C
TRICONEX 3721C
TRICONEX 3721C

TRICONEX 3721C

The TRICONEX 3721C stands out for its flexible signal conditioning and TMR redundancy, which eliminates the need for external redundant components and reduces system complexity. Each channel supports independent configuration for different signal types, making it highly versatile for mixed-process environments. The module’s built-in diagnostics, including self-test (BIST) and channel health monitoring, enable proactive fault detection and minimize downtime. For example, in a petrochemical plant, the 3721C accurately monitored temperature and pressure signals from RTDs and transmitters with sub-millisecond response times, ensuring precise control and safety compliance during critical operations.

Get a Quote
In Stock
Manufacturer:
Part number: TRICONEX 3721C
Our extensive catalogue, including : TRICONEX 3721C , is available now for dispatch to the worldwide. Brand:

Description

1. Product Description

TRICONEX 3721C is a high-performance analog input module from TRICONEX, a globally recognized brand in industrial automation and safety-critical systems. Designed to meet the rigorous demands of process control and safety-instrumented systems (SIS), the 3721C is engineered to accurately acquire and condition analog signals from field devices such as transmitters, sensors, and transducers. Leveraging TRICONEX’s triple modular redundancy (TMR) architecture, this module ensures reliable operation by triplicating critical circuits, allowing it to maintain functionality even when single-channel faults occur. The 3721C is ideal for applications requiring precise signal conditioning, high availability, and compliance with strict safety standards.

2. Product Parameters

Parameter Details
Module Type Analog Input Module (4-20 mA, Voltage, RTD, Thermocouple)
Input Channels 16 isolated channels (configurable per channel)
Signal Types 4-20 mA current, 0-5 V DC, RTD (Pt100, Pt1000), Thermocouple (J, K, T)
Resolution 16-bit analog-to-digital conversion
Accuracy ±0.05% of full-scale range
Voltage Range 24 V DC (nominal, with surge protection)
Compatibility TRICONEX Tricon controllers and TMR-based systems
Operating Temperature -40°C to +70°C (-40°F to +158°F)
Certifications SIL 3 (IEC 61508), ATEX, IECEx (hazardous area approval)
TRICONEX 3721C

TRICONEX 3721C

3. Advantages and Features

The TRICONEX 3721C stands out for its flexible signal conditioning and TMR redundancy, which eliminates the need for external redundant components and reduces system complexity. Each channel supports independent configuration for different signal types, making it highly versatile for mixed-process environments. The module’s built-in diagnostics, including self-test (BIST) and channel health monitoring, enable proactive fault detection and minimize downtime. For example, in a petrochemical plant, the 3721C accurately monitored temperature and pressure signals from RTDs and transmitters with sub-millisecond response times, ensuring precise control and safety compliance during critical operations.

4. Application Fields and Cases

The 3721C is widely applied in industries such as oil and gas, chemical processing, power generation, and pharmaceuticals, where precise analog signal measurement and redundancy are essential. It is suitable for applications including process control loops, safety interlocks, and environmental monitoring systems. A notable case involves a renewable energy facility that integrated the 3721C into its Tricon-based SIS to monitor solar field temperatures via thermocouples and flow rates via 4-20 mA transmitters. The module’s TMR design ensured continuous signal acquisition during a partial channel failure, preventing system shutdowns and maintaining operational efficiency.

5. Competitor Comparison

Compared to similar analog input modules, the TRICONEX 3721C differentiates itself through its integrated TMR architecture, which provides inherent redundancy without additional hardware, reducing installation costs and space requirements. Its wide range of supported signal types and high-resolution conversion offer greater flexibility than non-TMR alternatives, while its hazardous area certifications and extended temperature range make it suitable for extreme industrial environments.

TRICONEX 3721C

TRICONEX 3721C

6. Selection Suggestions

When selecting the TRICONEX 3721C, consider the following:



  • Signal Requirements: Ensure the module supports the specific analog types (e.g., RTD, thermocouple) and channel count needed for your application.
  • Environmental Conditions: Verify compatibility with temperature, vibration, and electromagnetic interference (EMI) levels in your facility.
  • Safety Compliance: Confirm its SIL 3 certification aligns with your system’s safety integrity requirements.
  • Scalability: Evaluate whether the module’s channel configuration (e.g., isolated vs. shared) matches your current and future needs.

7. Precautions

  • Wiring: Follow TRICONEX’s guidelines for shielded cabling and proper grounding to minimize noise and interference.
  • Calibration: Regularly calibrate channels using certified equipment to maintain accuracy, especially for critical process variables.
  • Firmware Updates: Keep the module’s firmware up-to-date to access the latest diagnostics and performance enhancements.
  • Hazardous Areas: Install only in certified zones and adhere to local explosion protection regulations for wiring and installation.
