Description
1. Product Description

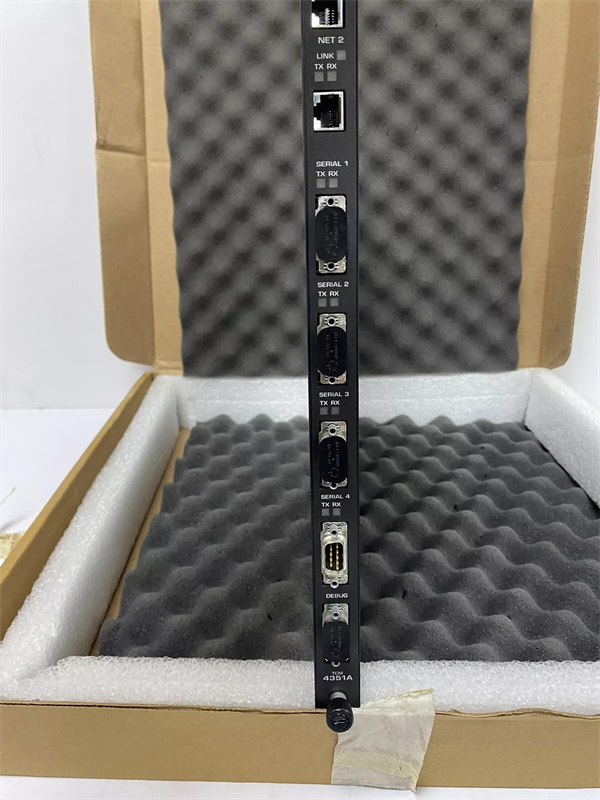

TRICONEX 4351A is a high-reliability analog input module designed for critical industrial automation systems, serving as a cornerstone of TRICONEX’s triple modular redundancy (TMR) platform. Engineered to deliver precise and secure signal acquisition, the 4351A accurately measures analog signals from field devices such as transmitters, transducers, and sensors, converting them into digital data for control systems. Built with triplicated channels, this module ensures continuous operation even in the presence of single-channel faults, making it ideal for safety-critical applications in industries like oil and gas, chemical processing, and power generation. The 4351A is SIL 3 (IEC 61508) certified, combining robust diagnostics with advanced signal conditioning to meet the strictest safety and performance standards.
2. Product Parameters
| Parameter | Details |
|---|---|
| Module Type | Analog Input Module (4–20 mA, 0–10 VDC) |
| Channels | 8 isolated channels |
| Input Ranges | 4–20 mA, 0–5 VDC, 0–10 VDC (software-selectable) |
| Resolution | 16-bit ADC with noise filtering |
| Redundancy | TMR architecture with automatic fault detection and voting |
| Safety Certification | SIL 3 (IEC 61508), TÜV certified |
| Operating Temperature | -40°C to +70°C |
| Hot-Swap Capability | Yes (online replacement without system shutdown) |
| Diagnostics | Real-time monitoring of channel faults, signal drift, and overloads |
TRICONEX 4351A
3. Advantages and Features
The TRICONEX 4351A stands out for its exceptional accuracy and fault tolerance. Its TMR design provides a diagnostic coverage rate of over 99%, ensuring that any single-channel anomaly—such as a failed transducer or wiring issue—is identified and mitigated without disrupting system operation. For instance, in a refinery’s distillation unit, the module maintained accurate temperature readings from a reactor despite a short circuit in one channel, thanks to its redundant architecture.
The module’s software-configurable input ranges and adjustable signal conditioning (e.g., linearization, scaling) simplify integration with diverse field devices, reducing configuration time by up to 50%. Its hot-swappable design further enhances operational efficiency, allowing maintenance without downtime—a feature that saved a chemical plant over 100 hours of production loss during a recent module replacement.
4. Application Areas and Cases
The 4351A is widely deployed in industries requiring precise analog signal monitoring and high safety integrity, including:
- Oil and Gas: Measuring pressure, flow, and temperature in upstream production and pipeline systems.
- Power Generation: Capturing analog signals from turbine sensors and boiler control systems.
- Pharmaceuticals: Monitoring process variables in sterile manufacturing environments with strict regulatory compliance.
Case Study: A major offshore oil platform integrated the 4351A into its safety instrumented system (SIS) to monitor 12 pressure transmitters on subsea wellheads. During a hurricane, the module’s TMR architecture successfully rejected a transient voltage surge in one channel, ensuring uninterrupted data flow to the platform’s emergency shutdown system. This prevented potential equipment damage and ensured compliance with IMO safety regulations.
5. Competitor Comparison
Compared to standard analog input modules, the 4351A offers superior safety and precision with its SIL 3 certification and 16-bit resolution, reducing measurement errors by up to 90% in noisy environments. Its wide temperature range and rugged construction also outperform many alternatives, eliminating the need for specialized enclosures in extreme conditions. Unlike non-redundant modules, the 4351A’s TMR design eliminates single points of failure, providing a more robust solution for critical applications.
TRICONEX 4351A
6. Selection Recommendations
When selecting the 4351A, consider:
- Signal Type and Range: Ensure compatibility with field devices (e.g., 4–20 mA transmitters or voltage-based sensors).
- Safety Requirements: Confirm the module’s SIL 3 rating aligns with your system’s safety integrity level (SIL) needs.
- Environmental Demands: Evaluate temperature, humidity, and electromagnetic interference (EMI) at the installation site.
- System Redundancy: Verify integration with TRICONEX TMR controllers for seamless redundancy management and diagnostics.
7. Precautions
- Cabling and Shielding: Use twisted-pair, shielded cables to minimize EMI and follow TRICONEX’s grounding guidelines for analog signals.
- Input Overload Protection: Avoid applying voltages exceeding 30 VDC to prevent damage to the module’s circuitry.
- Calibration Frequency: Perform periodic calibration (recommended annually) to maintain measurement accuracy, especially in high-precision applications.
- ESD Handling: Use anti-static wrist straps or gloves when installing or servicing the module to prevent electrostatic discharge damage.
