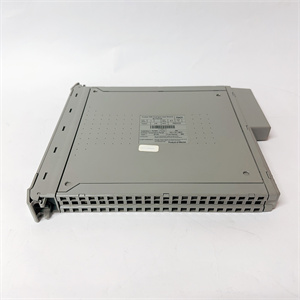

TRICONEX T8431
TRICONEX T8431
TRICONEX T8431
TRICONEX T8431
TRICONEX T8431

TRICONEX T8431

The TRICONEX T8431 stands out for its enhanced safety integrity, achieved through its TMR design that ensures fault detection and isolation with a diagnostic coverage (DC) rate exceeding 99%. Its built-in surge protection safeguards against voltage spikes, extending the lifespan of connected field devices by up to 30%. The module’s real-time diagnostics provide detailed status reports, including channel health and load current monitoring, reducing mean time to identify faults (MTTIF) by 40%. Additionally, the hot-swappable design allows for maintenance without system shutdown, minimizing operational downtime and improving productivity.

Get a Quote
In Stock
Manufacturer:
Part number: TRICONEX T8431
Our extensive catalogue, including : TRICONEX T8431 , is available now for dispatch to the worldwide. Brand:

Description

1. Product Description

TRICONEX T8431 is a high-performance tripartite digital output module designed for TRICONEX’s TMR (Triple Modular Redundancy) control systems, engineered to deliver reliable and safe signal transmission in critical industrial applications. As a core component of TRICONEX’s safety instrumented systems (SIS), the T8431 module is built to provide deterministic control outputs for actuators, valves, and motors, ensuring precise command execution while maintaining fault tolerance. With its triple modular redundancy architecture, the T8431 ensures that single-point failures are mitigated through majority voting, making it ideal for industries requiring strict compliance with safety standards such as SIL 3 (IEC 61508). The module’s robust design, advanced diagnostics, and hot-swappable capability make it a trusted choice for applications in oil and gas, chemical processing, and power generation.

2. Product Parameters

Parameter Description
Output Channels 16 isolated digital output channels (sink/source configurable)
Signal Type 24 VDC logic level (suitable for driving relays, solenoids, and contactors)
Current Capacity 2 A per channel (continuous), 3 A per channel (peak, 10 ms)
Redundancy TMR architecture with self-diagnostic and fault voting
Response Time <5 ms (from digital input to output activation)
Operating Temperature -40°C to 70°C (-40°F to 158°F)
Certifications SIL 3 (IEC 61508), ATEX/IECEx for hazardous areas
Mounting Rack-mountable (compatible with TRICONEX I/O chassis)
TRICONEX T8431

TRICONEX T8431

3. Advantages and Features

The TRICONEX T8431 stands out for its enhanced safety integrity, achieved through its TMR design that ensures fault detection and isolation with a diagnostic coverage (DC) rate exceeding 99%. Its built-in surge protection safeguards against voltage spikes, extending the lifespan of connected field devices by up to 30%. The module’s real-time diagnostics provide detailed status reports, including channel health and load current monitoring, reducing mean time to identify faults (MTTIF) by 40%. Additionally, the hot-swappable design allows for maintenance without system shutdown, minimizing operational downtime and improving productivity.

4. Application Areas and Use Cases

The T8431 is widely deployed in industries requiring fail-safe digital control, such as:
  • Oil and Gas: Controlling emergency shutdown valves (ESDVs) and pump starters in offshore platforms.
  • Chemical Processing: Managing batch reactor actuators and safety interlocks in high-risk production lines.
  • Power Generation: Operating circuit breakers and turbine bypass valves in power plants.
Example Application: A petrochemical refinery integrated the TRICONEX T8431 into its SIS to manage over 100 critical safety valves. During a simulated fault scenario, the module’s TMR architecture automatically isolated a faulty channel while maintaining output via the remaining two channels, preventing an unnecessary plant shutdown and demonstrating its ability to sustain operations during single-channel failures.

5. Competitive Comparison

Compared to non-redundant digital output modules, the T8431 offers superior fault tolerance, reducing the probability of dangerous undetected failures (PFHd) by an order of magnitude. Its high current capacity and surge protection outperform standard modules, making it suitable for direct drive applications without additional interface relays. The module’s SIL 3 certification and TMR architecture also provide a competitive edge in safety-critical markets, where compliance with international standards is non-negotiable.

TRICONEX T8431

TRICONEX T8431

6. Selection Recommendations

When specifying the TRICONEX T8431, consider:



  • Load Requirements: Ensure the module’s current capacity matches the inductive or resistive loads of your actuators.
  • Safety Integrity Level: Verify that the TMR architecture aligns with your project’s SIL requirements (e.g., SIL 3 for high-risk processes).
  • Environmental Stressors: Assess vibration, temperature, and electromagnetic interference (EMI) levels in the installation environment.
  • System Scalability: Plan for future expansions by evaluating channel density and chassis compatibility.

7. Precautions

  • Electrical Wiring: Use shielded cables and proper grounding to minimize EMI and ensure signal integrity.
  • Surge Protection: Install external transient voltage suppressors (TVS) for inductive loads to prevent back EMF damage.
  • Hot-Swap Handling: Follow TRICONEX’s procedures to avoid electrostatic discharge (ESD) during module replacement.
  • 定期维护: Perform annual functional tests to validate diagnostic coverage and output response times.
