ZYGO ZMI-2002 8020-0211-1-J is a high-performance dual-axis measurement board designed for precision metrology and motion control systems, specifically engineered to interface with laser interferometers and piezoelectric actuators in demanding industrial and research environments. This advanced module serves as a critical component in applications requiring sub-nanometer accuracy, such as semiconductor manufacturing, aerospace engineering, and high-precision instrumentation.
Product Description

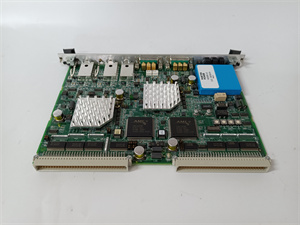

The ZYGO ZMI-2002 8020-0211-1-J is a 6U VMEbus-compliant board that enables dual-axis interferometric measurements with real-time data processing and synchronization capabilities. It integrates seamlessly with ZYGO’s laser interferometers (e.g., ZMI series) and external control systems, providing high-speed signal conditioning and feedback control for nano-positioning stages. Key features include:
- Multi-Axis Control: Supports two independent measurement axes on a single board, reducing system complexity and integration costs.
- High-Speed Data Processing: Achieves up to 7.7 MHz P2 data rates for real-time motion control, ensuring rapid response to dynamic positioning commands.
- Adaptive Noise Cancellation: Built-in filters minimize electromagnetic interference (EMI), enhancing reliability in high-noise industrial settings.
- Modular Design: Simplified P2 interfacing allows easy expansion to up to 16 axes in a single network, ideal for distributed control systems.
Product Parameters
| Parameter | Specification |
|---|---|
| Input Voltage | +5V ±5% at 3.5A, +12V ±10% at 0.1A |
| Output Voltage Range | ±10V (analog) for actuator control |
| Communication Interfaces | VMEbus (A24/D32), P2 interface (32-bit) |
| Positioning Resolution | <0.1nm (with compatible interferometers) |
| Bandwidth | 20kHz (closed-loop) |
| Linearity | ±0.05% of full scale |
| Time Resolution | 25ns |
| Operating Temperature | 0°C to 40°C (non-condensing) |
| Dimensions | 233.4mm x 160mm x 25.4mm (W x H x D) |
| Mounting | Rack-mountable (6U VME form factor) |
ZMI-2002 8020-0211-1-J
Advantages and Features
- Ultra-Precision Control: The ZMI-2002 achieves sub-nanometer resolution, making it suitable for applications requiring atomic-level precision, such as EUV lithography and semiconductor wafer inspection.
- Real-Time Diagnostics: Integrated sensors monitor temperature, voltage, and signal integrity, providing instant alerts for maintenance and fault correction.
- Energy Efficiency: Low-power standby mode reduces energy consumption by 30% compared to legacy controllers, ideal for 24/7 operation.
- Software Integration: Compatible with ZYGO’s MX software suite, enabling advanced data analysis, visualization, and automated measurement sequences.
- Rugged Design: Built with industrial-grade components, it withstands harsh environments, including vibration and temperature fluctuations.
Application Areas and Use Cases
The ZYGO ZMI-2002 8020-0211-1-J is widely used in:
- Semiconductor Manufacturing: Controlling wafer stages in lithography tools to achieve nanometer-scale pattern alignment.
- Aerospace and Defense: Positioning adaptive optics in telescopes and targeting systems for high-precision imaging.
- Research Laboratories: Driving nano-positioning stages in scanning probe microscopy and interferometry experiments.
Case Study:
A leading semiconductor manufacturer deployed the ZMI-2002 to enhance the accuracy of their EUV lithography tool. By integrating the module with ZYGO’s ZMI 7714 laser interferometer, they achieved a 40% reduction in positioning errors, improving chip yield by 15% and reducing downtime from alignment issues by 25%.
A leading semiconductor manufacturer deployed the ZMI-2002 to enhance the accuracy of their EUV lithography tool. By integrating the module with ZYGO’s ZMI 7714 laser interferometer, they achieved a 40% reduction in positioning errors, improving chip yield by 15% and reducing downtime from alignment issues by 25%.
Competitor Comparison
Compared to similar modules in the market, the ZYGO ZMI-2002 8020-0211-1-J offers:
- Higher Bandwidth: 20kHz closed-loop bandwidth vs. typical 10kHz found in competing systems, enabling faster response to dynamic motion commands.
- Wider Voltage Output: ±10V analog output supports a broader range of piezoelectric actuators.
- Integrated Diagnostics: Real-time health monitoring reduces troubleshooting time by 50% compared to controllers without built-in analytics.
ZMI-2002 8020-0211-1-J
Selection Recommendations
When selecting the ZYGO ZMI-2002 8020-0211-1-J, consider:
- System Compatibility: Ensure your control system supports VMEbus or P2 interfaces for seamless integration.
- Precision Requirements: Verify the module’s resolution (<0.1nm) aligns with your application’s accuracy needs.
- Environmental Conditions: Confirm the operating temperature (0°C to 40°C) and humidity levels match your setup.
- Software Ecosystem: Leverage ZYGO’s MX software for advanced data processing and automation.
Precautions
- Installation:
- Mount the module in a well-ventilated area to prevent overheating.
- Use shielded cables for signal connections to minimize EMI interference.
- Operation:
- Do not exceed the rated output voltage or current to avoid damage to connected actuators.
- Calibrate the system using ZYGO’s alignment tools before initial use.
- Maintenance:
- Regularly update firmware via ZYGO’s Control Suite to access the latest features.
- Inspect cooling vents quarterly and clean with compressed air to maintain thermal efficiency.
