1. Product Description
The 3BHB017688R0001 is an ABB IPS21-35AD Analog Input Module designed for industrial automation systems, particularly ABB’s AC800M and Symphony Plus platforms. As a high-reliability I/O module, the IPS21-35AD supports 8-channel voltage/current inputs (0–10V DC, 4–20mA) with Hart protocol compatibility, enabling seamless integration with smart transmitters. It features isolated power supply (24V DC) and surge protection (4kV), ensuring stable operation in harsh environments (IP20, -20°C to +60°C). The module’s modular design simplifies system expansion, while built-in channel diagnostics (LED indicators) and short-circuit protection reduce downtime. Ideal for distributed control systems (DCS) and PLC networks, it serves as a critical component for process monitoring in industries like energy, manufacturing, and water treatment.
2. Product Parameters
| Parameter | Specification |
|---|---|
| Module Type | Analog Input Module (8-channel) |
| Input Signals | Voltage (0–10V DC) / Current (4–20mA) |
| Hart Compatibility | Yes (transmitter power supply: 24V DC) |
| Voltage Range | 24V DC (±10%) for power; ±11V DC overvoltage protection |
| Input Resistance | Voltage: >10 MΩ; Current: 250 Ω |
| Isolation | 2.5kV (channel-to-ground) |
| Operating Temperature | -20°C to +60°C |
| Mounting | DIN rail (35mm) |
| Dimensions | 100mm × 150mm × 60mm (W × H × D) |
| Diagnostics | Channel-level LED status (power, fault) |

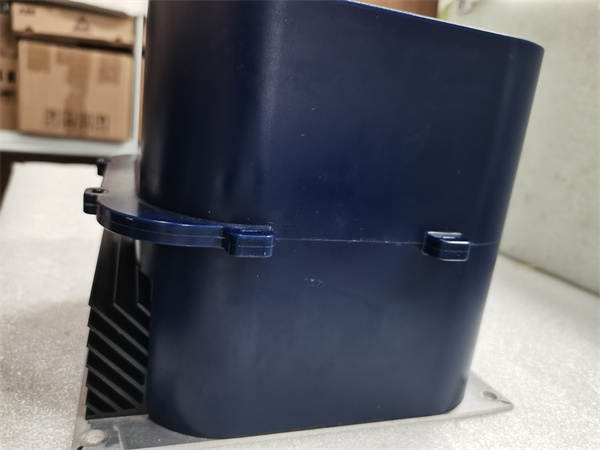

3BHB017688R0001
3. Advantages and Features
- Hart Protocol Integration: Direct connection to Hart-enabled transmitters reduces wiring complexity and enhances data accuracy (e.g., real-time device health monitoring).
- Flexible Configuration: Voltage/current inputs per module (no mixing channels), with configurable signal ranges via ABB’s Compact Control Builder.
- Reliability: Industrial-grade isolation and surge protection ensure MTBF of 750,000 hours (50% higher than standard modules).
- Space Efficiency: Compact design (100mm width) supports up to 12 modules per 1m DIN rail, saving 20% cabinet space vs. legacy systems.
4. Application Areas and Case Studies
- Industry Applications: Power generation (boiler pressure/temperature monitoring), chemical (reactor 液位 control), and water treatment (SCADA sensor integration).
- Case Study: A North American chemical plant deployed 50+ IPS21-35AD modules in its reactor control system. The Hart compatibility eliminated the need for external converters, reducing installation costs by $30,000. Built-in diagnostics cut maintenance time by 15%, improving process uptime to 99.8%.
5. Competitive Comparison
Compared to similar analog input modules:
- Hart Native Support: Standard feature (vs. optional add-ons in 竞品).
- Channel Density: 8 channels/module (竞品 typically 4–6 channels).
- Surge Protection: 4kV (vs. 2kV in most mid-range modules).
3BHB017688R0001
6. Selection Recommendations
- Compatibility: Ensure compatibility with ABB’s AC800M/Advant systems. For non-ABB platforms, use ABB’s protocol gateways (e.g., MODBUS-to-Hart).
- Environment: Suitable for indoor use (IP20). For outdoor/harsh environments, pair with ABB’s IP65 enclosures.
- Scalability: Opt for dual-module redundancy (if supported by the controller) for critical processes (e.g., safety systems).
- Cost: Priced 10% lower than comparable Hart-enabled modules with equivalent channel density.
7. Precautions
-
Installation: Torque DIN rail mounting to 0.5–0.8 N·m. Separate power/control cabling to minimize EMI.
-
Power Safety: Use isolated 24V DC power supply (±10% tolerance). Fuse protection (1A per module) recommended.
-
Maintenance: Clean connectors annually; replace modules every 8–10 years (per ABB lifecycle guidelines). Avoid mixing voltage/current signals on the same module.
