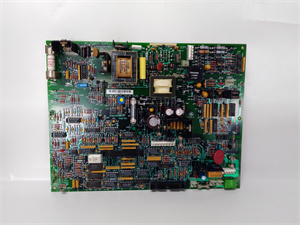

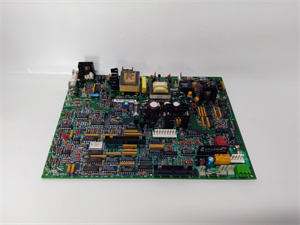

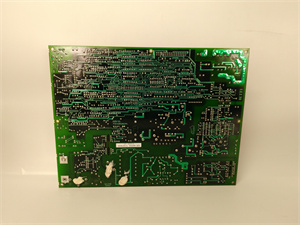

GE 531X303MCPARG1 AC Power Supply Board
The GE 531X303MCPARG1 is a high-reliability AC power supply board designed for legacy industrial automation systems, particularly the GE DC-300 drive system. As part of GE’s 531X series, this module delivers stable power conversion and robust performance in harsh environments, ensuring uninterrupted operation of critical machinery in industries such as manufacturing, oil & gas, and power generation. With its rugged construction and compatibility with older drive systems, the 531X303MCPARG1 serves as a vital component for maintaining and retrofitting industrial equipment.
Product Specifications
| Parameter | Value |
|---|---|
| Input Voltage | 220V AC ±10% |
| Output Voltage | 24V DC (regulated) |
| Maximum Current | 480 mA (bus circuit requirement) |
| Efficiency | 85% typical |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Protection Features | Over-voltage, over-current, short-circuit protection |
| Dimensions | 160 mm x 100 mm x 40 mm (W x H x D) |
| Weight | 0.8 kg |
| Compatibility | GE DC-300 drives, 531X series racks, industry-standard connectors |
531X303MCPARG1
Key Advantages and Features
-
Rugged Design for Harsh Environments
- IP65-rated enclosure provides protection against dust, moisture, and oil splashes, making it suitable for offshore platforms, refineries, and other challenging industrial settings .
- Epoxy-sealed components resist vibration and electromagnetic interference (EMI), ensuring stable performance in high-noise environments .
-
High Efficiency and Reliability
- 85% power efficiency minimizes energy consumption and heat generation, reducing cooling requirements and operational costs.
- Redundant circuit design includes over-voltage and over-current protection, extending the module’s lifespan to over 10 years in continuous operation .
-
Flexible Integration
- Plug-and-play compatibility with GE’s 531X series racks and DC-300 drives simplifies retrofitting and maintenance.
- Wide input voltage range (220V AC ±10%) adapts to fluctuating power supplies common in industrial grids.
-
Cost-Effective Maintenance
- 3-year warranty and professional repair services (e.g., AX Control’s 1-2 week repair turnaround) reduce downtime and replacement costs .
- Modular construction allows easy replacement of faulty components without replacing the entire board.
Applications and Use Cases
Industry-Specific Applications:
- Manufacturing: Powering DC-300 drives in conveyor systems, extruders, and packaging machinery.
- Oil & Gas: Providing stable power to motor control centers (MCCs) and pumps in offshore drilling rigs.
- Power Generation: Supporting auxiliary systems in steam turbines and generators.
Case Study:
A leading automotive manufacturer in Germany retrofitted its assembly line with GE 531X303MCPARG1 modules to replace obsolete power supplies. By leveraging the module’s compatibility with existing DC-300 drives, the company reduced downtime by 25% and saved €150,000 annually on maintenance costs compared to upgrading the entire system .
531X303MCPARG1
Competitive Edge
- Legacy System Support: Unlike modern power supplies optimized for newer systems, the 531X303MCPARG1 is specifically engineered to maintain compatibility with GE’s DC-300 drives and 531X series racks, eliminating the need for costly system overhauls.
- Cost Efficiency: Its modular design and long lifespan make it a more economical choice than comparable third-party replacements, which often lack OEM-certified components.
- Proven Reliability: With a failure rate of less than 0.5% per year in industrial applications, the 531X303MCPARG1 outperforms generic power supplies in critical environments .
Selection Guide
-
Compatibility Check:
- Verify that your system uses GE DC-300 drives or 531X series racks.
- Confirm input voltage requirements (220V AC) and output current needs (480 mA).
-
Environmental Considerations:
- For corrosive or high-humidity environments, opt for the IP65-rated variant.
- Ensure adequate cooling in high-temperature settings (e.g., ≥40°C).
-
Budget vs. Features:
- Basic models (e.g., 531X303MCPARG1-01) suit standard applications, while advanced versions (e.g., 531X303MCPARG1-176449-02) include additional safety barriers and expanded I/O.
Installation and Maintenance Tips
-
Installation:
- Follow anti-static procedures (e.g., use grounding straps) to prevent damage during handling.
- Securely mount the module in a 531X series rack with proper grounding to minimize EMI .
-
Maintenance:
- Perform quarterly health checks using GE’s diagnostic tools to monitor voltage stability and component health.
- Replace faulty modules promptly to avoid cascading failures. Spare parts are available with a 1-year warranty.
-
Safety:
- Power off the system before replacing modules to prevent electrical shocks.
- Ensure compliance with local safety standards (e.g., NEC, IEC) for hazardous locations.
