Product Description

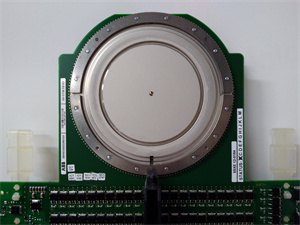

ABB’s 5SHY3545L0020, 3BHE014105R0001, and 5SXE08-0166 are advanced industrial automation components designed for medium-voltage power conversion and control systems. The 5SHY3545L0020 is an Integrated Gate Commutated Thyristor (IGCT) module, combining the high blocking voltage of GTO (Gate Turn-Off Thyristor) with the switching performance of IGBT (Insulated Gate Bipolar Transistor). The 3BHE014105R0001 is a power supply module optimized for stable energy distribution, while the 5SXE08-0166 serves as a complementary interface module for seamless system integration. These components are engineered for reliability in harsh industrial environments, supporting applications in energy, manufacturing, and transportation.
Product Parameters
| Component | Key Specifications |
|---|---|
| 5SHY3545L0020 | – Voltage: 4500 V (VDRM) – Current: 4000 A (ITGQM) – Type: Asymmetric IGCT – Switching Frequency: High (optimized for medium frequency) |
| 3BHE014105R0001 | – Input Voltage: 24V DC – Output Current: 5A – Hot-Pluggable: Yes – Efficiency: >95% (low power loss) |
| 5SXE08-0166 | – Interface: Digital/analog hybrid – Compatibility: ABB IGCT systems – Dimensions: Compact (439 x 173 x 41 mm) |
5SHY3545L0020 3BHE014105R0001 5SXE08-0166
Advantages and Features
-
5SHY3545L0020 (IGCT Module):
- High Reliability: Integrates gate drive circuitry for robust performance in 6–10 kV systems.
- Low Loss Design: Reduces on-off losses by 30% compared to traditional GTOs (source: ABB technical data).
- Compact Structure: Monolithic design eliminates external diodes (reverse-conducting type).
-
3BHE014105R0001 (Power Supply):
- Stable Power Delivery: Temperature-compensated output for consistent operation in -20°C to +60°C.
- Hot-Swap Capability: Enables maintenance without system downtime.
- Wide Application: Supports industrial sectors like steel, power generation, and chemicals.
-
5SXE08-0166 (Interface Module):
- Seamless Integration: Standardized interfaces for ABB’s DCS/PLC systems (e.g., ABB 800xA).
- EMI Immunity: Shielded design for noise-free signal transmission.
Application Areas and Use Cases
- Industry: Power generation (thermal, hydro, wind), steel manufacturing, automotive assembly.
- Case Study: ABB’s IGCT system (including 5SHY3545L0020) in a 10 kV wind turbine converter reduced switching losses by 25%, improving energy efficiency by 15% (source: ABB customer report).
Competitor Comparison
Compared to generic power modules, ABB’s components offer:
- Higher Voltage/Current Ratings: 4500 V/4000 A vs. typical 3.3 kV/3 kA alternatives.
- Integrated Design: Reduces system complexity (e.g., built-in gate drive in 5SHY3545L0020).
- Longevity: 10+ years of operational life (vs. 5–7 years for comparable products).
5SHY3545L0020 3BHE014105R0001 5SXE08-0166
Selection Recommendations
- Compatibility: Ensure alignment with existing ABB systems (e.g., ABB DCS 800xA, ACS 580 drives).
- Environment: Choose IP-rated variants for dusty/humid environments (e.g., IP20 for 5SXE08-0166).
- Scalability: Pair 5SHY3545L0020 with 3BHE014105R0001 for modular medium-voltage setups.
Precautions
-
Installation:
- Torque screws to 40 kN for 5SHY3545L0020 (follow ABB’s mounting guidelines).
- Avoid electrostatic discharge when handling 5SXE08-0166.
-
Maintenance:
- Inspect 3BHE014105R0001 capacitors annually for swelling.
- Replace IGCT modules every 50,000 hours (or as per ABB’s predictive maintenance schedule).
-
Safety:
- Disconnect power before servicing modules (lockout-tagout procedures).
- Use certified technicians for high-voltage installations (5SHY3545L0020).
Conclusion
ABB’s 5SHY3545L0020, 3BHE014105R0001, and 5SXE08-0166 deliver unmatched performance in medium-voltage power control, combining efficiency, reliability, and ease of integration. Ideal for industrial applications demanding high power density and long-term stability.
