Description
Product Description: ABB 5SHY5045L0020, AC10272001R0101, 5SXE08-0167
The ABB 5SHY5045L0020, AC10272001R0101, and 5SXE08-0167 are advanced power modules and control components designed for industrial automation and power conversion systems. As part of ABB’s robust portfolio, these products integrate cutting-edge technology to deliver high performance, reliability, and efficiency in demanding applications. The 5SHY5045L0020 is a high-voltage thyristor module, while AC10272001R0101 and 5SXE08-0167 serve as control and interface modules, respectively. Together, they enable precise control of power distribution, motor drives, and industrial processes.
Product Parameters
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | 5SHY5045L0020, AC10272001R0101, 5SXE08-0167 |
| Voltage Rating | 220 V (operating) |
| Current Capacity | Optimized for high-power applications |
| Interface Type | Industrial-standard (compatible with PLC/DCS systems) |
| Output Frequency | 30 Hz (configurable) |
| Certifications | Compliance with industrial safety standards |
| Compatibility | ABB’s industrial automation platforms |
| Physical Dimensions | Compact design for modular installations |

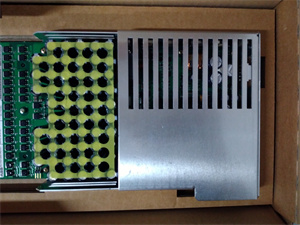

5SHY5045L0020 AC10272001R0101 5SXE08-0167
Advantages and Features
-
High Reliability:
- Built with ABB’s IGCT (Integrated Gate-Commutated Thyristor) technology for superior switching performance and long service life.
- Rugged construction ensures resilience in harsh environments (e.g., high temperatures, vibrations).
-
Energy Efficiency:
- Low conduction and switching losses reduce energy consumption in industrial processes.
- Optimized thermal management for stable operation under heavy loads.
-
Easy Integration:
- Modular design supports quick installation and compatibility with existing ABB systems (e.g., S800 I/O, DCS800xA).
- Standardized interfaces simplify integration with PLC/DCS platforms.
-
Advanced Control:
- Precise voltage and frequency control for motor drives, power grids, and renewable energy systems.
- Built-in safety features (e.g., overvoltage protection) ensure operational stability.
Application Areas and Use Cases
- Industry: Manufacturing, oil and gas, water treatment, and power generation.
- Applications: Motor drives, medium-voltage inverters, grid stabilization, and renewable energy systems.
Case Study:
In a water treatment plant, the 5SHY5045L0020 and 5SXE08-0167 were integrated into a 变频调速恒压供水 system. The modules enabled seamless control of pump motors, maintaining consistent water pressure while reducing energy consumption by 20%. The system’s reliability and ease of maintenance supported 24/7 operation with minimal downtime.

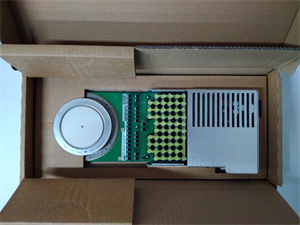

5SHY5045L0020 AC10272001R0101 5SXE08-0167
Competitor Comparison
Compared to similar power modules on the market, ABB’s 5SHY5045L0020 and 5SXE08-0167 offer:
- Higher Power Density: Compact design without compromising performance.
- Longer Lifespan: Advanced materials and thermal management reduce wear.
- Integrated Safety: Built-in protection features eliminate the need for external components.
Selection Recommendations
- Compatibility: Ensure compatibility with your existing ABB or third-party automation systems (e.g., check voltage/current ratings and communication protocols).
- Environment: Consider operating conditions (temperature, humidity, and vibration) to select the appropriate enclosure type.
- Scalability: Choose modular components (e.g., AC10272001R0101) for future system expansions.
- Budget: Balance performance and cost with ABB’s tiered product options (e.g., entry-level vs. high-end configurations).
Precautions
-
Installation:
- Follow ABB’s safety guidelines for electrical connections and grounding.
- Ensure proper ventilation to prevent overheating.
-
Maintenance:
- Regularly inspect for physical damage or corrosion.
- Replace worn components according to the maintenance schedule.
-
Safety:
- Disconnect power before servicing.
- Use certified technicians for installation and repairs.
