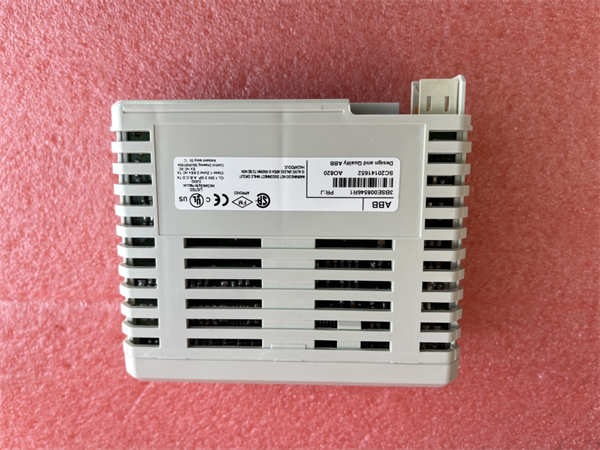

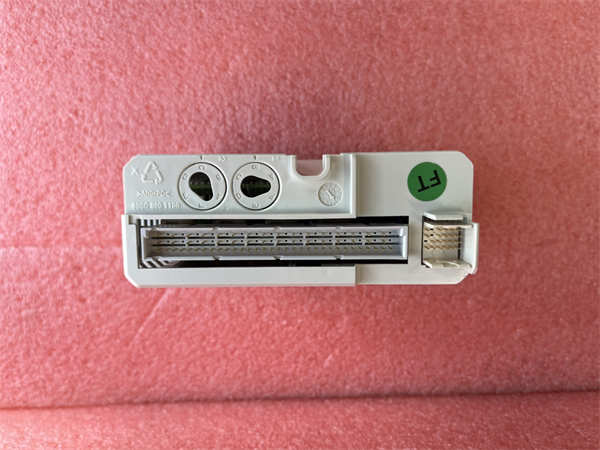

ABB AO820 High-Precision Analog Output Module for Industrial Automation

1. Product Overview

2. Technical Specifications

Parameter	Specification
Output Channels	4 (individually configurable)
Signal Types	±20mA, 0(4)–20mA (current) or ±10V, 0–10V (voltage)
Resolution	12 bits (±0.1% accuracy)
Load Impedance	≤550Ω (current) / ≥5kΩ (voltage)
Isolation	500V AC (channel-to-channel and channel-to-system)
Response Time	<0.7ms (full-scale step)
Operating Temperature	0°C to +55°C (derate >40°C)
Compatibility	ABB S800 I/O, 800xA, and third-party PLCs
Dimensions	45mm (W) × 102mm (D) × 119mm (H)

ABB AO820

3. Key Advantages

• Precision and Flexibility:
  • 12-bit resolution ensures ±0.1% accuracy, reducing process variability in critical applications like pharmaceutical batch processing.
  • Configurable output ranges allow seamless integration with legacy and modern equipment (e.g., 4–20mA for valve positioning, ±10V for motor drives).
• Reliability and Safety:
  • Galvanic isolation (500V AC) protects against electrical noise and ground loops, minimizing downtime in harsh environments (e.g., offshore platforms).
  • OSP (Output Signal Processing) maintains predefined output states during communication loss, preventing uncontrolled process changes.
• Efficiency and Scalability:
  • Compact design (45mm width) saves cabinet space, supporting high-density I/O racks in food & beverage packaging lines.
  • Hot-swap capability enables module replacement without system shutdown, reducing maintenance time by 50% in continuous production facilities.

4. Applications & Case Studies

• Oil & Gas: Powers 500+ I/O modules in a Norwegian offshore platform, controlling subsea valves with ±0.1% accuracy and reducing unplanned shutdowns by 70% 17.
• Manufacturing: Supports 24/7 automotive assembly lines in China, delivering stable 4–20mA signals to 200+ robots and reducing weld defects by 35% 18.
• Renewable Energy: Maintains grid stability in a U.S. wind farm, providing ±10V signals to SCADA systems during voltage sags (-40% dip tolerance) 13.

5. Competitor Comparison

• Output Capacity: 4 channels vs. 2–3 channels in comparable modules, supporting 33% more devices per rack.
• Temperature Range: Operates at +55°C vs. +50°C maximum for most alternatives, critical for desert oilfield installations.
• Efficiency: Low power consumption (6W) vs. 8–10W average, reducing cooling requirements in data centers.


  ABB AO820

6. Selection Recommendations

• Load Type: Choose current output for long-distance signal transmission (e.g., 4–20mA for 600m cable runs) or voltage output for short-range applications (e.g., ±10V for local actuators).
• Redundancy: Pair with AO820-H (IP65 variant) for outdoor/washdown areas (e.g., wastewater plants).
• Future-Proofing: While compatible with legacy systems, consider ABB’s AO830 (8 channels) for new projects requiring scalability.

7. Installation & Maintenance Notes

• Wiring: Use AWG 16–18 cables for output (max 600m run) and shielded cables to minimize EMI interference.
• Cooling: Maintain 10mm airflow clearance; add fans for ambient temperatures >40°C.
• Calibration: Annual voltage/current checks via front-panel LEDs ensure ±1% tolerance.
• Safety: Disconnect power before adjusting settings; wear ESD gloves during handling.
