1. Product Description
The ABB DAI04 is an analog input module that plays a crucial role in industrial automation systems. As part of ABB’s comprehensive portfolio of PLC (Programmable Logic Controller) spare parts, the DAI04 is designed to convert analog signals from various industrial sensors into digital data that can be processed by the control system. This module is highly versatile and can be used in a wide range of applications where accurate measurement and monitoring of analog quantities such as temperature, pressure, and flow are required.
The DAI04 offers four input channels, which allow it to handle multiple analog signals simultaneously. Its high – precision conversion ensures that the digital representation of the analog signals is accurate, enabling precise control and decision – making in industrial processes. The module is also known for its excellent electromagnetic compatibility (EMC), which means it can operate reliably in noisy industrial environments without being affected by electromagnetic interference.
2. Product Parameters
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | DAI04 |
| Input Channels | 4 |
| Input Types | Voltage (e.g., ±10V, 0 – 10V) and current (e.g., 4 – 20mA) |
| Resolution | 12 – bit |
| Accuracy | ±0.1% of full – scale |
| Power Supply | 24V DC ±10% |
| Isolation | Galvanic isolation between channels and between channels and ground (2.5kV) |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 67.5mm (W) x 76mm (H) x 62mm (D) |
| Weight | Approximately 0.2kg |

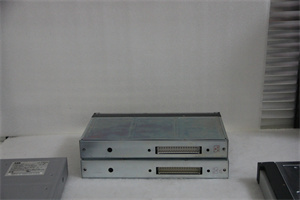

ABB DAI04
3. Advantages and Features
- High Precision: With a 12 – bit resolution and an accuracy of ±0.1% of full – scale, the DAI04 can provide highly accurate measurements of analog signals. For example, in a chemical process where precise temperature control is crucial, the accurate analog input provided by the DAI04 ensures that the process runs smoothly and safely.
- Electromagnetic Compatibility: The galvanic isolation of 2.5kV between channels and between channels and ground makes the module highly resistant to electromagnetic interference. In a factory environment filled with large motors and other electrical equipment that generate significant electromagnetic noise, the DAI04 can still operate stably, ensuring reliable data acquisition.
- Flexible Input Types: It supports both voltage and current input types, allowing it to be connected to a wide variety of sensors. This flexibility makes it easy to integrate into different industrial systems without the need for additional signal conversion devices.
- Reliability: Built with high – quality components and designed to operate in a wide temperature range (-25°C to +60°C), the DAI04 offers long – term reliability. In a remote oil and gas field where maintenance is difficult, the reliable operation of the DAI04 ensures continuous monitoring of process parameters.
4. Application Areas and Application Cases
- Application Areas:
- Manufacturing: In manufacturing plants, the DAI04 can be used to monitor the temperature and pressure of machinery, ensuring optimal performance and preventing breakdowns.
- Energy: In power generation plants, it can measure parameters such as steam pressure and water flow, enabling efficient operation and control of the power generation process.
- Process Industries: In chemical, pharmaceutical, and food processing industries, the DAI04 helps in monitoring and controlling critical process variables such as temperature, pH, and flow rate.
- Application Case: A food processing plant was facing issues with inconsistent product quality due to inaccurate temperature control in its cooking process. By installing the ABB DAI04 to measure the temperature of the cooking vessels, the plant was able to obtain accurate temperature data. The control system could then adjust the heating elements precisely, resulting in a significant improvement in product quality and a reduction in product waste by 20%.
5. Competitor Comparison
Compared to some similar analog input modules in the market, the ABB DAI04 has several advantages. It offers a higher level of isolation (2.5kV) compared to some competitors, which provides better protection against electromagnetic interference. Its accuracy of ±0.1% of full – scale is also more precise than many competing products, ensuring more reliable data acquisition. Additionally, the wide operating temperature range (-25°C to +60°C) allows it to be used in more challenging environments than some of its counterparts.
ABB DAI04
6. Selection Recommendations
- Compatibility: Ensure that the DAI04 is compatible with your existing PLC system. Check the communication protocols and electrical interfaces to ensure seamless integration.
- Input Requirements: Consider the type and number of analog signals you need to measure. If you have multiple sensors with different input types (voltage or current), the DAI04‘s flexibility in input types makes it a good choice.
- Environment: Evaluate the operating environment. If the environment is noisy or has a wide temperature range, the DAI04‘s EMC performance and wide operating temperature range are important factors to consider.
- Budget: While the DAI04 offers high – quality performance, compare its price with your budget. Consider the long – term benefits of reliability and accuracy when making a cost – benefit analysis.
7. Precautions
- Installation: Follow the installation instructions provided by ABB carefully. Ensure proper grounding and wiring to avoid signal interference and electrical hazards.
- Power Supply: Use a stable 24V DC power supply within the specified tolerance of ±10%. Fluctuations in the power supply can affect the performance of the module.
- Maintenance: Regularly inspect the module for any signs of damage or wear. Clean the module if it is exposed to dust or debris. If any faults are detected, refer to the troubleshooting guide in the user manual or contact ABB’s technical support.
