Description
1. Product Description

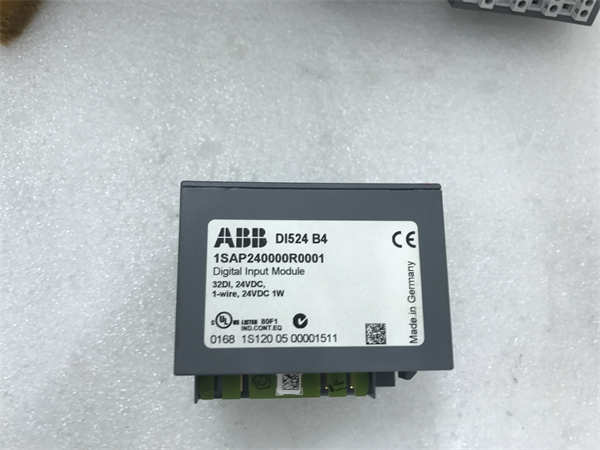

The DI524 (1SAP240000R0001) is a high-performance digital input module by ABB, designed for industrial automation systems. As part of the ABB AC500/S500 series, the DI524 offers 32 galvanically isolated digital inputs for 24V DC signals, grouped into four channels (1.0–1.7, 2.0–2.7, 3.0–3.7, 4.0–4.7). It features a compact design (62×76×67.5mm) with LED indicators for real-time status monitoring, making it ideal for PLC/DCS control systems in manufacturing, energy, and process industries. The module supports configurable input delays (0.1–32 ms) and fast counter functionality (up to 50 kHz on selected inputs). With a wide input voltage range (10.8–30V DC) and IP20 protection, the DI524 balances durability and flexibility. An XC version is available for extreme environments (-10°C to 60°C), ensuring reliability in harsh conditions.
2. Product Parameters
| Parameter | Specification |
|---|---|
| Input Type | Digital (24V DC, Type 1 per EN 61131-2) |
| Number of Inputs | 32 (4 groups of 8) |
| Input Voltage Range | 10.8–30V DC (Signal 1: 15–30V DC) |
| Input Current | 5 mA per channel (24V DC) |
| Power Supply | 20.4–28.8V DC (Process supply) |
| Input Delay | Configurable 0.1–32 ms (default 8 ms) |
| Operating Temperature | -10°C to 60°C (XC version); 0°C to 60°C (standard) |
| Storage Temperature | -40°C to 70°C |
| Humidity | 10%–95% non-condensing |
| Isolation | Galvanic (module-wise) |
| LED Indicators | 32 yellow (input states), 1 green (power), 4 red (errors) |
| Dimensions (W×H×D) | 62mm × 76mm × 67.5mm |
| Weight | 0.1 kg (net) |
ABB DI524
3. Advantages and Features
- High Density: 32 inputs in a compact DIN rail-mount design reduces panel space.
- Wide Voltage Tolerance: Supports 10.8–30V DC inputs, adapting to unstable industrial power systems.
- Reliable Isolation: Galvanic isolation protects against voltage spikes and EMI/EMC interference.
- Real-Time Diagnostics: Dedicated LEDs for each input and system status enable quick fault detection.
- Flexible Configuration: Configurable input delays and fast counter (50 kHz) for motion/speed control.
- Extreme Environment Support (XC Version): Operates in -10°C to 60°C with derating for vertical mounting.
- Long Cable Support: Up to 1000m (shielded) or 600m (unshielded) for remote sensor integration.
4. Application Areas and Use Cases
Industries: Manufacturing (assembly lines), energy (power plants), water treatment, automotive, and robotics.
Applications: Machine control, conveyor systems, safety interlocks, and process monitoring.
Applications: Machine control, conveyor systems, safety interlocks, and process monitoring.
Case Study:
A food processing plant uses the DI524 to monitor 32 sensors on packaging machinery. The module’s galvanic isolation prevents signal corruption from high-voltage equipment, while configurable delays filter false signals from vibration. LED diagnostics reduced downtime by 15%, improving line efficiency.
A food processing plant uses the DI524 to monitor 32 sensors on packaging machinery. The module’s galvanic isolation prevents signal corruption from high-voltage equipment, while configurable delays filter false signals from vibration. LED diagnostics reduced downtime by 15%, improving line efficiency.
5. Competitor Comparison
Compared to similar digital input modules:
- Higher Channel Density: 32 inputs vs. typical 16–24 inputs in 竞品.
- Wider Voltage Range: 10.8–30V DC vs. 20–28V DC in many alternatives.
- Extreme Temperature Support: XC version (-10°C) vs. standard 0°C minimum in most 竞品.
- Integrated Counter: Built-in 50 kHz counter (no need for additional modules).
- Cable Length: 1000m (shielded) vs. 500m average in comparable products.
ABB DI524
6. Selection Recommendations
- Compatibility: Ensure compatibility with ABB AC500/S500 systems (PM5xx CPUs, TU5xx backplanes).
- Environment: Choose XC version for outdoor/harsh conditions (temperature <0°C or high humidity).
- Channel Needs: Opt for DI524 (32 inputs) for high-density systems; smaller projects may use DI521 (16 inputs).
- Counter Functionality: Use inputs I24/I25 for fast counting (e.g., conveyor speed monitoring).
- Budget: Balance channel density and XC features against project requirements (XC version has a premium cost).
7. Precautions
- Installation: Mount horizontally on a DIN rail (IP20; use IP65 enclosure for outdoor use).
- Wiring: Follow ABB’s 1-wire configuration (terminals 1.0–4.7 for inputs, 1.8–4.8/+24V, 1.9–4.9/0V).
- Voltage Stability: Maintain supply voltage within 20.4–28.8V DC (process supply) and 10.8–30V DC (input).
- Maintenance: Regularly inspect LED indicators; clean dust using a dry cloth (non-conductive environment).
- Cable Shielding: Use shielded cables for long runs (>600m) to reduce noise interference.
