1. Product Description

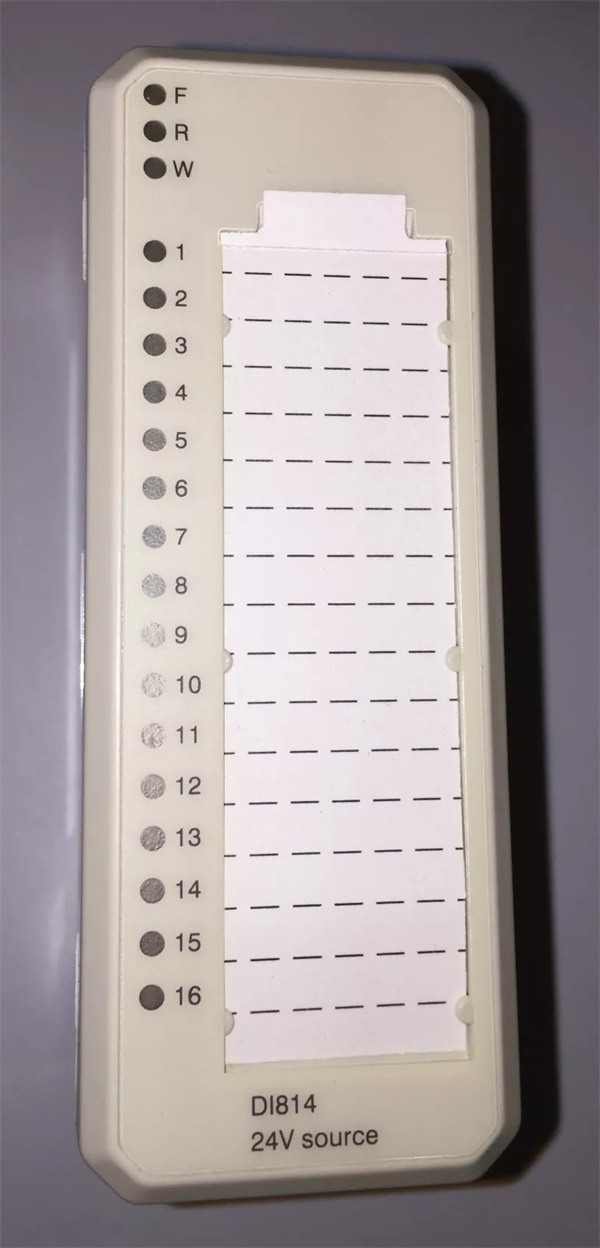

The ABB DI814 is a high – performance digital input module that plays a crucial role in industrial automation systems. As part of ABB’s extensive range of PLC (Programmable Logic Controller) spare parts, the DI814 is designed to receive and process digital signals from various industrial sensors and devices.
This module offers eight isolated input channels, which can handle a wide variety of digital input signals. It is capable of accurately detecting the status of connected devices, such as switches, sensors, and limit switches, and then transmitting this information to the PLC for further processing. The DI814 is known for its high reliability and excellent noise immunity, making it suitable for use in harsh industrial environments where electrical interference is common.
2. Product Parameters
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | DI814 |
| Input Channels | 8 |
| Input Voltage | 24V DC ±10% |
| Isolation | Galvanic isolation between channels and between channels and ground (2.5 kV) |
| Input Current | Approximately 8 mA per channel |
| Response Time | ≤ 10 ms |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 50 mm (W) x 110 mm (H) x 125 mm (D) |
| Weight | Approximately 0.3 kg |
| Certifications | CE, UL, CSA |
ABB DI814
3. Advantages and Features
- High – Quality Isolation: The 2.5 kV galvanic isolation between channels and between channels and ground provides excellent protection against electrical interference. This means that the DI814 can operate reliably in industrial environments with high – voltage equipment and strong electromagnetic fields. For example, in a large – scale manufacturing plant with numerous motors and generators, the isolation feature ensures accurate signal detection.
- Fast Response Time: With a response time of ≤ 10 ms, the DI814 can quickly detect changes in the input signals. This is crucial in applications where real – time monitoring and control are required, such as in automated production lines where timely detection of a switch state change can prevent equipment damage.
- Multiple Input Channels: The eight input channels allow the module to handle multiple digital signals simultaneously. This reduces the need for multiple input modules, saving space and cost in the control panel.
- Wide Operating Temperature Range: The ability to operate in a temperature range of – 25°C to +60°C makes the DI814 suitable for use in various geographical locations and industrial applications. Whether it’s a cold storage facility or a hot chemical plant, the module can maintain its performance.
4. Application Areas and Application Cases
- Application Areas:
- Manufacturing: In manufacturing processes, the DI814 can be used to monitor the status of conveyor belts, robotic arms, and other automated equipment. It can detect the position of limit switches, the status of sensors, and provide this information to the PLC for process control.
- Energy: In power plants, the module can be used to monitor the status of switches, breakers, and other electrical equipment. It helps in ensuring the safe and efficient operation of the power generation and distribution systems.
- Automotive Industry: In automotive manufacturing plants, the DI814 can be used to monitor the operation of assembly line equipment, such as welding robots and painting booths.
- Application Case: An automotive assembly plant was experiencing issues with the accuracy of its assembly line due to unreliable signal detection from sensors. By installing the ABB DI814 to receive signals from the sensors, the plant was able to improve the accuracy of the assembly process. The fast response time and high – quality isolation of the module ensured that the PLC received accurate and timely information, reducing the number of defective products by 15%.
5. Competitor Comparison
Compared to other digital input modules in the market, the ABB DI814 offers several advantages. Its 2.5 kV galvanic isolation provides better protection against electrical interference than many competing products. The fast response time of ≤ 10 ms is also superior to some similar modules, which may have response times of 15 ms or more. Additionally, the wide operating temperature range allows it to be used in more extreme conditions than some of its counterparts.
ABB DI814
6. Selection Recommendations
- Compatibility: Ensure that the DI814 is compatible with your existing PLC system. Check the communication protocols and electrical interfaces to ensure seamless integration.
- Input Requirements: Consider the number of input channels you need. If you require more than eight channels, you may need to consider multiple DI814 modules or other ABB products with higher channel counts.
- Environment: Evaluate the operating environment. If the environment is harsh, with high levels of electrical interference or extreme temperatures, the DI814‘s isolation and wide temperature range are important factors to consider.
- Budget: Compare the price of the DI814 with your budget. Consider the long – term benefits of reliability and performance when making a cost – benefit analysis.
7. Precautions
- Installation: Follow the installation instructions provided by ABB carefully. Ensure proper grounding and wiring to avoid electrical hazards and signal interference.
- Power Supply: Use a stable 24V DC power supply within the specified tolerance of ±10%. Fluctuations in the power supply can affect the performance of the module.
- Maintenance: Regularly inspect the module for any signs of damage or wear. Check the connectors for proper contact. If any faults are detected, refer to the troubleshooting guide in the user manual or contact ABB’s technical support.
