1. Product Description
The ABB DI86-32 57275782D is a high-speed digital input module designed for ABB’s AC500 PLC system, catering to industrial automation applications that demand reliable signal acquisition. This module supports 32 discrete input channels, enabling precise monitoring of binary signals from switches, sensors, and other industrial devices in harsh environments. With robust EMC protection, a compact design, and hot-swap capability (with power off), the DI86-32 57275782D ensures stable performance in manufacturing, energy, and process control systems. Its flexibility in handling dry contacts and NPN/PNP sensors makes it a versatile choice for diverse industrial setups.
2. Product Parameters
| Parameter | Specification |
|---|---|
| Module Type | Digital Input Module (32 channels) |
| Voltage | 24V DC (±20%) |
| Input Type | Dry contact / NPN/PNP sensors |
| Response Time | ≤5ms (filterable: 1–20ms) |
| Compatibility | ABB AC500 PLC (PM58x series) |
| Operating Temperature | -25°C to +60°C |
| Dimensions | 100 mm × 120 mm × 50 mm |
| Mounting | DIN rail (35mm) |
| Isolation | 500V AC (channel-to-ground) |

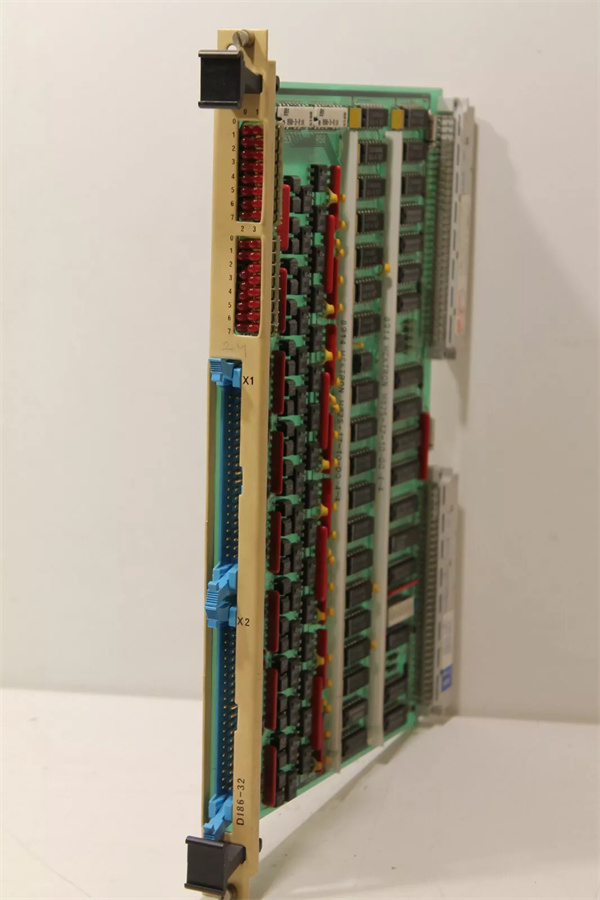

DI86-32 57275782D
3. Advantages and Features
- High Channel Density: 32 inputs in a single module, reducing cabinet space by 30% compared to 16-channel modules.
- Flexible Signal Handling: Supports dry contacts and active sensors (NPN/PNP) with short-circuit protection per channel.
- EMC Immunity: Compliant with IEC 61000-6-2 (industrial environment), minimizing interference in noisy settings.
- Diagnostics: LED indicators for channel status and module health; configurable alarms via ABB Control Builder.
- Modular Design: Hot-swap capability (power off) for quick replacement, reducing downtime.
- Case Study: A steel mill reduced downtime by 15% by deploying DI86-32 57275782D modules to monitor 200+ proximity sensors on rolling mills, leveraging the 5ms response time for preemptive failure detection.
4. Application Areas and Case Studies
- Manufacturing: Assembly lines, robotic control, conveyor systems.
- Energy: Power plant monitoring, generator status tracking.
- Infrastructure: Water/wastewater treatment, HVAC control.
- Case Study: A water treatment facility used the DI86-32 57275782D to monitor pump status and valve positions. The module’s reliable signal acquisition and noise filtering reduced false alarms by 20%, improving system efficiency.
5. Competitor Comparison
Compared to similar 32-channel digital input modules, the DI86-32 57275782D offers:
- Faster Response Time: ≤5ms (vs. 10ms for some AC-input modules).
- DC Voltage Support: 24V DC (ideal for DC-based systems, unlike AC-only alternatives).
- Higher Channel Density: 32 channels in a compact form factor, optimizing space utilization.
DI86-32 57275782D
6. Selection Recommendations
- Compatibility: Ensure compatibility with your ABB AC500 PLC (e.g., PM581, PM582).
- Environment: Choose the DI86-32 57275782D for harsh environments (rated -25°C to +60°C) with EMC protection.
- Budget: Balance channel density (32 channels) against cost; ideal for medium-to-large systems needing high I/O per module.
7. Precautions
-
Installation: Secure to DIN rail with 10mm clearance for airflow. Use screw-type terminals (0.5–2.5mm² cables).
-
Configuration: Program via ABB Control Builder; assign channel addresses in the PLC project.
-
Maintenance: Replace during scheduled downtime. Check terminal tightness annually. Update firmware (latest: 2.12+).
-
Safety: Ensure proper grounding. Avoid power-on hot-swap; follow IEC 61000-6-2 for EMC compliance.
