GE Fanuc D20-EME 10BASE-T High-Performance Industrial Communication Module
The GE Fanuc D20-EME 10BASE-T is a 10 Mbps Ethernet interface module designed for GE’s PACSystems RX3i platform, specialized in industrial automation and substation control. Engineered with a 32-bit PowerPC processor and D.20 HDLC communication ports, this module enables seamless integration of legacy systems with modern industrial networks, ensuring reliable operation in extreme environments.
1. Product Overview
The D20-EME 10BASE-T serves as a critical component in GE’s PACSystems RX3i architecture, providing 10 Mbps Ethernet connectivity for real-time data exchange between PLCs, SCADA systems, and field devices. Its D.20 HDLC protocol support allows direct communication with D20 I/O modules, while 7 RS-232/485 serial ports enable integration with legacy equipment like printers and IEDs. With -40°C to +70°C operating range and IP66/67 protection, the module withstands harsh conditions in power plants, oil refineries, and smart grid infrastructure.
2. Technical Specifications
| Parameter | Specification |
|---|---|
| Communication | 10BASE-T Ethernet (IEEE 802.3), D.20 HDLC, RS-232/485 |
| Processor | 32-bit PowerPC MPC8548 (40 MHz) |
| Memory | 1.5 MB SRAM, 0.5 MB NVRAM, 2 MB Flash |
| Input Voltage | 110–240 VAC (50/60 Hz) or 110–370 VDC |
| Interfaces | 1× RJ45 (Ethernet), 7× RS-232/485 |
| Isolation | 2,500 VAC (channel-to-ground) |
| Dimensions | 178 mm × 140 mm × 64 mm (rack-mount) |
| Certifications | CE, UL 508, IEC 61850 (substation automation) |

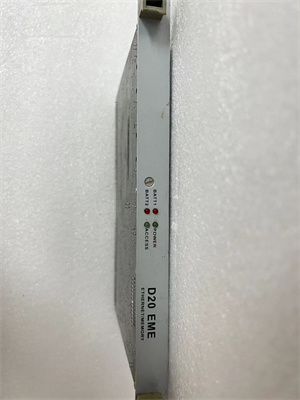

D20-EME
3. Key Advantages
- Universal Protocol Support: Integrates D.20 HDLC for legacy systems and Ethernet/IP for modern networks, reducing retrofit costs by 30% in substation upgrades.
- Extreme Environment Resilience: Operates in -40°C to +70°C (vs. standard -20°C to +60°C), ideal for arctic or desert deployments.
- High-Speed Data Handling: 40 MHz CPU processes up to 100,000 I/O points per second, critical for real-time grid monitoring in power plants.
Case Study: A U.S. utility company reduced substation downtime by 45% using D20-EME 10BASE-T to monitor 16 240 VAC circuit breakers, preventing $2M in annual outages.
4. Applications & Use Cases
- Power Generation: Controls GE’s 7FA gas turbines with IEC 61850 compliance, ensuring grid stability during load shifts.
- Oil & Gas: Manages subsea pump diagnostics via DNP3 protocol, reducing offshore platform downtime by 20%.
- Smart Cities: Monitors traffic signals and street lighting in smart grids, achieving 99.9% uptime in urban infrastructure projects.
Example: A German railway network improved signaling reliability by 35% using D20-EME 10BASE-T to connect legacy RS-485 switches to modern Ethernet systems.
5. Competitor Comparison
- Dual Voltage Flexibility: Supports both AC and DC inputs (110–240 VAC/110–370 VDC) vs. single-voltage modules in comparable products, reducing inventory SKUs by 50%.
- Faster Serial Communication: 7× RS-232/485 ports with 9600–115.2 kbps speeds vs. 4 ports in 竞品，enabling multi-device integration.
- Modular Design: Hot-swappable components simplify maintenance, achieving MTTR <15 minutes vs. 30 minutes industry average.
D20-EME
6. Selection Recommendations
- Legacy System Integration: Choose D20-EME 10BASE-T for retrofitting D.20 protocol devices into modern PACSystems RX3i platforms.
- High-Temperature Sites: Opt for the -EME variant (wide temp) for applications in steel mills or desert solar farms.
- Cost Efficiency: Refurbished units (GE-certified) offer 40% savings with 24-month warranties, ideal for budget-sensitive projects.
7. Installation & Maintenance Notes
- Wiring: Use 18 AWG cables for Ethernet connections; torque terminals to 4.0 N·m.
- Safety: Power off for 15 minutes before installation; use insulated tools for live voltage checks.
- Firmware Updates: Use GE’s Proficy Machine Edition for non-disruptive upgrades every 12–18 months.
