1. Product Description

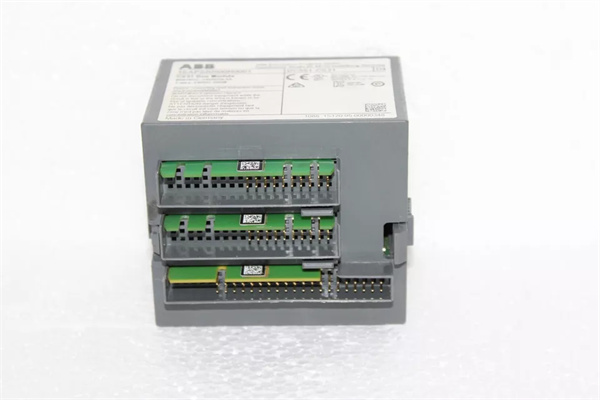

The ABB DC551-CS31 1SAP220500R0001 is a compact digital I/O bus module designed for distributed automation systems, specifically optimized for ABB’s AC500 and AC500-ECO PLC platforms. As a CS31 slave module, it integrates 8 digital inputs (24V DC) and 16 configurable digital I/O channels (24V DC/0.5A), enabling flexible signal processing for sensors, actuators, and field devices. With a rugged IP20 enclosure (67.5 × 76 × 62 mm) and operating temperature range of 0°C to +60°C, the DC551-CS31 1SAP220500R0001 supports harsh industrial environments in manufacturing, energy, and water treatment. Key features include galvanic isolation, configurable delay times (0.1–32 ms), and expandability up to 7 additional I/O modules, making it ideal for scalable control systems.
2. Product Parameters
| Parameter | Specification |
|---|---|
| Module Type | Digital I/O Bus Module (CS31 Slave) |
| Digital Inputs | 8 (24V DC, 5 mA) |
| Configurable I/O | 16 (24V DC/0.5A, transistor output) |
| Input Voltage | 24V DC (20.4–28.8V DC supply) |
| Delay Time | 0.1–32 ms (adjustable) |
| Isolation | Galvanic (2.5kV RMS) |
| Protection Rating | IP20 (dust protection) |
| Operating Temperature | 0°C to +60°C (storage: –40°C to +70°C) |
| Dimensions | 67.5 mm × 76 mm × 62 mm (W × H × D) |
| Weight | 0.12 kg |
| Bus Interface | CS31 (RS485), supports up to 7 I/O modules |
| Compatibility | ABB AC500, AC500-ECO PLC systems |
DC551-CS31 1SAP220500R0001
3. Advantages and Features
- Flexible I/O Configuration: 16 configurable DI/DO channels adapt to mixed input/output requirements (e.g., sensors and relays).
- Scalability: Expands with up to 7 ABB I/O modules (e.g., AI/AO, temperature) for complex control systems.
- Reliability: Galvanic isolation and surge protection ensure stable operation in noisy industrial settings.
- Space Efficiency: Compact DIN-rail design saves 40% cabinet space compared to legacy modules.
- Diagnostic Tools: LED indicators for channel status and fault detection (e.g., short circuits, voltage irregularities).
4. Application Areas and Case Studies
- Industrial Automation: Machine tool control, conveyor systems, and robotic assembly lines.
- Energy: Substation monitoring, HVAC control in power plants.
- Water/Wastewater: Pump station automation, valve control in treatment facilities.
- Case Study: A steel mill deployed the DC551-CS31 1SAP220500R0001 to manage 50+ sensors in a rolling mill. Its configurable delays minimized false signals from vibration, reducing downtime by 20%.
5. Competitor Comparison
Compared to similar bus modules:
- Higher Channel Density: 24 I/O points (8 DI + 16 configurable) in a smaller form factor (vs. 16–20 points in 竞品).
- Wide Voltage Tolerance: 20.4–28.8V DC supply (vs. 24V ±10% for most competitors), supporting unstable power environments.
- ABB Ecosystem Integration: Native compatibility with ABB’s Control Builder software reduces programming time by 30%.
DC551-CS31 1SAP220500R0001
6. Selection Recommendations
- I/O Requirements: Choose this module for systems needing mixed digital I/O (e.g., 8 fixed inputs + 16 configurable).
- Environment: Suitable for moderate temperatures (0°C to +60°C) and dust-prone areas (IP20).
- Scalability: Opt for the DC551-CS31 1SAP220500R0001 if future expansion (additional I/O modules) is required.
7. Precautions
-
Installation: Mount vertically on a 35mm DIN rail (IEC 60715). Maintain 10mm clearance for cooling.
-
Wiring: Use shielded cables for CS31 bus communication (max. 1km length). Follow IEC 61131-2 for signal wiring.
-
Power Management: Ensure supply voltage within 20.4–28.8V DC. Avoid overloading outputs (>0.5A per channel).
-
Maintenance: Replace modules every 10 years (or after 100,000 operations). Update firmware annually via ABB’s Control Builder.
