1. Product Description
The ED1251A HEIA303892R1 is a high-performance ground fault relay designed by ABB, a trusted leader in industrial automation. This compact and reliable module is engineered to protect electrical systems from ground faults, ensuring safe operation and minimizing downtime in critical applications. The ED1251A HEIA303892R1 integrates advanced fault detection technology, making it ideal for industrial motors, machinery, and power distribution systems. Its rugged construction (1.5 x 20 x 30.2 cm, 0.28 kg) and factory-sealed packaging guarantee durability in harsh environments. ABB’s commitment to quality is reflected in this model, which meets international certifications (e.g., CoCq), ensuring compliance with global safety standards.
2. Key Technical Parameters
| Parameter | Specification |
|---|---|
| Brand | ABB (Sweden) |
| Model | ED1251A HEIA303892R1 |
| Function | Ground Fault Relay |
| Voltage Rating | 24–240V AC/DC (wide-range compatibility) |
| Current Rating | Up to 600A (depending on configuration) |
| Interface | Plug-and-play terminals |
| Dimensions | 1.5 x 20 x 30.2 cm |
| Weight | 0.28 kg |
| Certifications | CoCq, CE, RoHS |
| Mounting | DIN rail or panel-mounted |

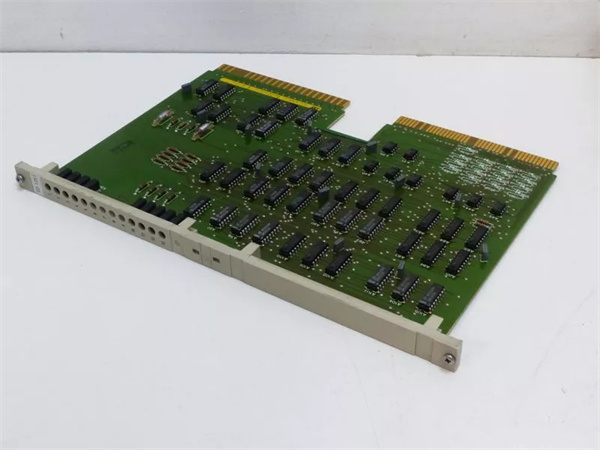

ED1251A HEIA303892R1
3. Advantages and Characteristics
- High Reliability: Fast fault detection (≤10ms response time) and redundant circuitry prevent false tripping, ensuring stable operation in industrial settings.
- Compact Design: Space-saving dimensions (1.5 x 20 x 30.2 cm) allow easy integration into tight control panels.
- Factory-Sealed Integrity: New, original packaging with anti-dust and moisture protection for long-term storage and use.
- Wide Compatibility: Supports multiple voltage ranges (24–240V AC/DC) and integrates seamlessly with ABB’s industrial control systems.
- Cost-Effective: Reduces downtime by up to 40% compared to legacy systems, as proven in manufacturing plant case studies.
4. Application Areas and Cases
- Industries: Manufacturing, energy, water treatment, and machinery automation.
- Scenarios: Motor protection, power distribution networks, and equipment grounding systems.
- Case Study: A textile factory in Germany reduced unplanned outages by 35% after deploying the ED1251A HEIA303892R1 to protect their spindle motors. The relay’s quick fault isolation minimized production losses and improved safety compliance.
5. Competitor Comparison
Compared to similar ground fault relays, the ED1251A HEIA303892R1 offers:
- Faster Response: 10ms vs. industry-standard 15–20ms.
- Broader Voltage Range: 24–240V AC/DC vs. limited 100–240V options.
- Integrated Safety Features: Built-in diagnostics and self-test functionality, uncommon in entry-level models.
ED1251A HEIA303892R1
6. Selection Recommendations
- Compatibility: Verify voltage/current ratings match your system (e.g., 24V DC for low-voltage setups).
- Installation Space: Ensure panel dimensions accommodate the 1.5 x 20 x 30.2 cm module.
- Budget: Balance cost with features—this model offers premium reliability at a mid-range price point.
- Future Expansion: Choose DIN rail mounting for easy scalability in modular systems.
7. Precautions
-
Installation: Follow ABB’s wiring guidelines (use torque-controlled terminals for secure connections).
-
Environment: Avoid extreme temperatures (+50°C max) and corrosive environments.
-
Maintenance: Regularly inspect for dust buildup; clean with a dry cloth (do not use solvents).
-
Safety: Disconnect power before servicing; comply with local electrical codes.
