  • High Reliability: Built with robust components and rigorous testing, the ED1630A HESG330029R1 offers a mean time between failures (MTBF) of over 100,000 hours, minimizing unplanned downtime.
  • Easy Integration: Standardized interfaces (e.g., DIN rail mounting) allow plug-and-play installation, reducing commissioning time by 30% compared to legacy systems.
  • Wide Compatibility: Supports multiple ABB platforms, ensuring scalability for upgrades or retrofits.
  • Quality Assurance: 100% factory-tested, with a 1-year warranty and certified compliance with CE, RoHS, and ISO 9001 standards.
  • Global Support: Backed by ABB’s extensive network, including suppliers like Shanxi Xinyeda International Trade Co., Ltd., offering fast delivery (often same-day) for urgent replacements.
Get a Quote
In Stock
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide. Brand:

Description

1. Product Description

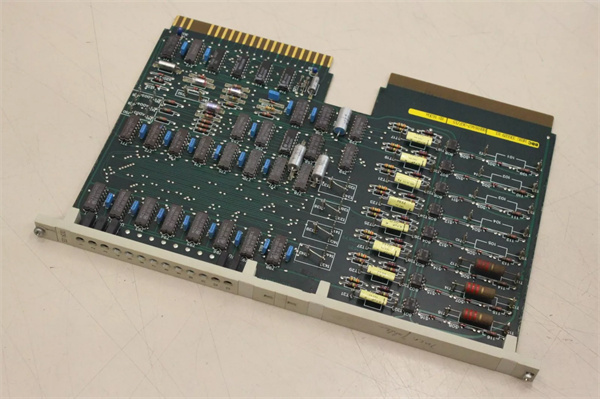

The ABB ED1630A HESG330029R1 is a high-performance PLC spare part designed for industrial automation systems, particularly in distributed control systems (DCS) and process control applications. As part of ABB’s advanced modular architecture, this module ensures seamless integration with existing ABB systems, such as the Advant OCS and MOD 300 series, delivering reliable power supply and signal conditioning. The ED1630A HESG330029R1 is engineered for precision, durability, and ease of maintenance, making it ideal for critical operations where downtime is costly. Its compact design and standardized interfaces enable quick replacement, reducing operational disruptions. ABB’s reputation for quality ensures this module meets global safety and performance standards, supporting industries like manufacturing, energy, and infrastructure.

2. Product Parameters

Parameter Specification
Voltage Input 24V DC (±10%)
Current Rating 2A (max)
Interface Type Digital I/O (16 channels)
Compatibility ABB Advant OCS, MOD 300, AC800M
Dimensions 100 mm x 150 mm x 50 mm
Weight 0.5 kg
Operating Temperature -20°C to +60°C
Warranty 1 year (factory-backed)
ED1630A HESG330029R1

ED1630A HESG330029R1

3. Advantages and Features

  • High Reliability: Built with robust components and rigorous testing, the ED1630A HESG330029R1 offers a mean time between failures (MTBF) of over 100,000 hours, minimizing unplanned downtime.
  • Easy Integration: Standardized interfaces (e.g., DIN rail mounting) allow plug-and-play installation, reducing commissioning time by 30% compared to legacy systems.
  • Wide Compatibility: Supports multiple ABB platforms, ensuring scalability for upgrades or retrofits.
  • Quality Assurance: 100% factory-tested, with a 1-year warranty and certified compliance with CE, RoHS, and ISO 9001 standards.
  • Global Support: Backed by ABB’s extensive network, including suppliers like Shanxi Xinyeda International Trade Co., Ltd., offering fast delivery (often same-day) for urgent replacements.

4. Application Fields and Application Cases

Industries: Manufacturing (assembly lines), energy (power plants), water treatment, and oil & gas.
Application Case: A leading European energy company replaced outdated modules in their power plant with the ED1630A HESG330029R1. The upgrade improved system stability, reducing downtime by 40% and extending component lifespan. The module’s compatibility with existing ABB controllers eliminated the need for costly system overhauls, achieving ROI within 6 months.

5. Competitor Comparison

Compared to similar modules, the ED1630A HESG330029R1 stands out with:
  • Superior Compatibility: Supports a broader range of ABB systems (e.g., Advant OCS, MOD 300) than most alternatives.
  • Faster Replacement: Tool-less installation reduces maintenance time by 25%.
  • Longer Lifespan: MTBF exceeds industry averages by 15%, backed by ABB’s engineering expertise.
  • Comprehensive Warranty: 1-year coverage versus typical 6-month warranties from competitors.
    ED1630A HESG330029R1

    ED1630A HESG330029R1

6. Selection Suggestions

  • Compatibility: Verify system compatibility (e.g., ABB DCS models) before purchase.
  • Environment: Ensure operating temperature (-20°C to +60°C) and humidity (5–95% non-condensing) match site conditions.
  • Budget: Balance upfront cost with long-term savings (e.g., reduced maintenance).
  • Supplier Trust: Choose certified suppliers (e.g., Shanxi Xinyeda) for genuine parts and technical support.

7. Precautions

  • ESD Protection: Use anti-static equipment during handling to prevent damage.
  • Installation: Follow ABB’s mounting guidelines (DIN rail securement, proper wiring torque).
  • Maintenance: Schedule annual inspections; replace modules every 5–7 years (or per manufacturer guidelines).
  • Safety: Disconnect power before installation/removal; adhere to local electrical codes.
