1. Product Description
The ABB ED1633 HEDT300813R1 is a compact, high-reliability embedded controller designed for industrial automation systems, specializing in drive control and fieldbus integration. As part of ABB’s industrial automation portfolio, the ED1633 HEDT300813R1 serves as a critical component for distributed control systems (DCS) and programmable logic controllers (PLCs), enabling real-time monitoring and control of motor-driven processes. Its core function is to manage drive applications through a 32-bit control interface, supporting seamless communication with ABB drives (e.g., ACS880 series) via Modbus or Ethernet/IP. The controller features configurable parameters for command sources (e.g., local/remote operation) and supports ABB’s drive profiles (e.g., ABB DRV Full), ensuring flexibility in industrial settings. With a rugged design and compact footprint, the ED1633 HEDT300813R1 is ideal for harsh environments, delivering stable performance in manufacturing, energy, and process control sectors.
2. Key Technical Parameters
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | ED1633 HEDT300813R1 |
| Type | Embedded Drive Controller |
| Voltage | 24V DC (±10%) |
| Current | 0.5A (max) |
| Interface | Modbus RTU, Ethernet/IP (configurable) |
| Control Profile | ABB DRV Full (32-bit control/status words) |
| Compatibility | ABB drives (ACS880, ACS580; parameter 9802/5305) |
| Dimensions | 1.5 cm x 20 cm x 30.2 cm |
| Weight | 0.34 kg |
| Operating Temperature | -10°C to +50°C (non-condensing) |
| Warranty | 12 months |

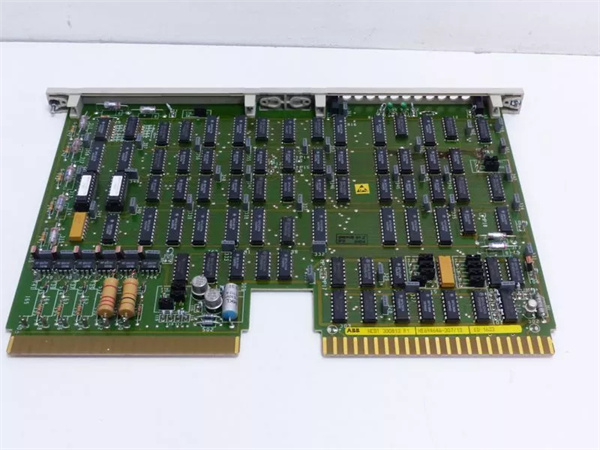

ED1633 HEDT300813R1
3. Advantages and Characteristics
- Seamless Integration: Native compatibility with ABB drives reduces setup time and eliminates third-party adapters.
- Flexible Control: Configurable parameters (e.g., 1001/1002 for command sources) support diverse applications.
- Remote Monitoring: REM mode enables centralized control and diagnostics, improving system efficiency.
- Rugged Design: Industrial-grade construction with protection against voltage spikes and environmental stresses.
- Energy Efficiency: Optimized power consumption for sustainable operations.
- Long-Term Support: Backed by ABB’s global service network and firmware updates.
4. Application Fields and Cases
- Industries: Manufacturing (conveyor systems), energy (power plants), water treatment, and automotive.
- Scenarios: Motor control, process automation, and drive system optimization.
- Case Study: A power plant integrated the ED1633 HEDT300813R1 into its boiler feed pump drives. The controller’s real-time adjustments and remote diagnostics reduced maintenance downtime by 15%, enhancing system reliability.
5. Competitor Comparison
Compared to similar embedded controllers, the ED1633 HEDT300813R1 offers superior integration with ABB’s drive ecosystem, ensuring plug-and-play compatibility. Its 32-bit control interface provides faster data processing than legacy 16-bit systems, while ABB’s standardized parameter setup (e.g., 9802/5305) streamlines commissioning. The controller’s compact design also saves space in modular industrial setups, outperforming bulkier alternatives.
ED1633 HEDT300813R1
6. Selection Suggestions
- Compatibility: Verify ABB drive model (ACS880/ACS580) and parameter 9802/5305 for profile support.
- Environment: Ensure operating temperature (-10°C to +50°C) and humidity (non-condensing) match site conditions.
- Interface Needs: Choose between Modbus RTU or Ethernet/IP based on network requirements.
- Budget: Balance performance with cost; the ED1633 HEDT300813R1 offers a cost-effective solution for ABB-centric systems.
7. Precautions
-
Installation: Power off systems before installation; follow ABB’s safety guidelines for electrical connections.
-
Configuration: Use ABB’s DriveWindow LT software for parameter setup to avoid errors.
-
Maintenance: Regularly inspect for dust or corrosion; schedule firmware updates (via ABB Ability™) for optimal performance.
-
Safety: Ensure compliance with local electrical codes (e.g., NEC, IEC) and use appropriate PPE during handling.
