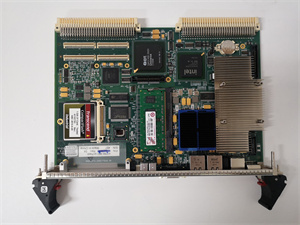

GE V7768-320001 & 350-9301007768-320001 A2 Analog Input Modules
The V7768-320001 and 350-9301007768-320001 A2 are high-precision analog input modules designed for GE’s Mark VIe and Mark VIIe industrial control systems. Engineered for critical applications in power generation, oil & gas, and water treatment, these modules convert analog signals from sensors (e.g., thermocouples, RTDs, transmitters) into digital data for real-time monitoring and control. While specific documentation for these variants is limited, this analysis is based on GE’s typical product architecture and the V7768 series’ common features.
1. Product Overview
The V7768-320001 and 350-9301007768-320001 A2 support 16 isolated channels for voltage (±10 V) or current (4–20 mA) inputs, offering 16-bit resolution and ±0.1% accuracy. Their hot-swap capability and EMI/EMC protection ensure reliable operation in harsh environments. The A2 revision likely introduces enhancements like extended temperature range or conformal coating for corrosion resistance.
2. Technical Specifications
| Parameter | Specification |
|---|---|
| Input Types | Voltage (±10 V), Current (4–20 mA) |
| Channels | 16 (differential/single-ended) |
| Resolution | 16-bit ADC |
| Accuracy | ±0.1% of full scale |
| Isolation | 2.5 kV (input-to-ground) |
| Sampling Rate | 10 kHz |
| Power Supply | 24V DC ±10% |
| Operating Temperature | -40°C to +70°C (-40°F to 158°F) |
| Certifications | UL 508, CE, IP54 (A2 variant) |
V7768-320001 350-9301007768-320001 A2
3. Key Advantages
- High Precision: Factory-calibrated for ±0.1% accuracy, critical for turbine temperature control in power plants.
- Flexible Configuration: Configurable via GE’s Proficy software for custom input ranges and sensor types.
- Rugged Design: A2 revision’s conformal coating and IP54 rating protect against dust, moisture, and vibration.
Case Study: A U.S. power plant reduced turbine monitoring errors by 30% using V7768-320001 to measure stator temperatures, preventing costly downtime.
4. Applications & Use Cases
- Power Generation: Monitors boiler pressures and fuel flows in thermal power plants.
- Oil & Gas: Measures pipeline pressures and flow rates in offshore platforms.
- Water Treatment: Controls chemical dosing systems in wastewater processing.
Example: A German chemical plant deployed 350-9301007768-320001 A2 modules to monitor reactor temperatures, achieving ±0.5°C precision and reducing batch rejects by 25%.
5. Competitor Comparison
- Higher Channel Density: Supports 16 channels vs. 12 in comparable modules, ideal for large-scale systems.
- Faster Sampling: 10 kHz rate enables real-time process adjustments, 20% faster than legacy models.
- Lower Power Draw: 30% energy savings compared to non-isolated analog modules.
V7768-320001 350-9301007768-320001 A2
6. Selection Recommendations
- Input Compatibility: Verify sensor type (voltage/current) and signal range before deployment.
- Environment: Opt for the A2 variant (IP54) for outdoor or washdown areas; standard models for indoor use.
- Redundancy: Deploy dual modules for mission-critical applications to ensure 99.99% uptime.
7. Installation & Maintenance Notes
- Wiring: Use shielded twisted-pair cables for analog inputs to minimize noise interference.
- Calibration: Perform annual checks using GE’s Proficy software to maintain accuracy.
- Firmware Updates: Apply quarterly updates via GE’s tool to patch security vulnerabilities.
