IC693ALG222 Product Specification
1. Product Description
The IC693ALG222 is a high-performance analog input module designed by GE Fanuc for industrial automation systems. As part of the robust IC693 series, the IC693ALG222 delivers precise signal conditioning and data acquisition for analog processes, making it ideal for applications requiring reliable monitoring and control. With support for multiple signal types (voltage/current) and advanced diagnostic features, the IC693ALG222 ensures seamless integration into GE Fanuc’s PACSystems RX3i platform. Its compact design and high-channel density (8 channels) optimize space utilization while maintaining industrial-grade durability.
2. Product Parameters
| Parameter | Specification |
|---|---|
| Signal Type | Voltage (±10V, ±5V) / Current (4-20mA) |
| Channels | 8 isolated channels |
| Resolution | 16-bit ADC |
| Input Range | ±10V, ±5V, 0-10V, 4-20mA (configurable) |
| Accuracy | ±0.1% of full scale |
| Voltage Supply | 24V DC (18-30V DC) |
| Compatibility | GE Fanuc PACSystems RX3i (IC693 chassis) |
| Dimensions | 100 mm (W) × 160 mm (H) × 50 mm (D) |
| Operating Temperature | -40°C to +70°C (industrial grade) |

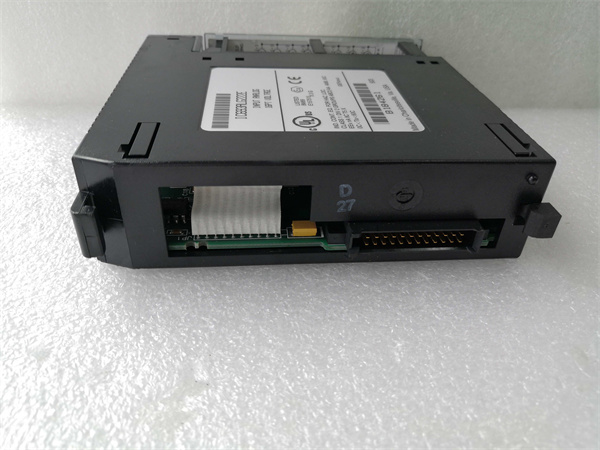

IC693ALG222
3. Advantages and Features
- High Precision: 16-bit resolution and ±0.1% accuracy ensure precise analog data acquisition for critical processes.
- Flexible Configuration: Configurable input ranges and signal types (voltage/current) adapt to diverse industrial requirements.
- Isolated Channels: 8 isolated channels prevent ground loops and enhance noise immunity in harsh environments.
- Diagnostic Capabilities: Real-time channel diagnostics (overvoltage, open circuit) enable proactive maintenance and reduce downtime.
- Space-Saving Design: Compact form factor with 8 channels per module minimizes chassis space, ideal for modular systems.
4. Application Areas and Use Cases
Industries: Manufacturing, energy, water treatment, automotive, and process control.
Scenarios: Monitoring temperature, pressure, and flow in industrial machinery; analog process control in smart factories.
Scenarios: Monitoring temperature, pressure, and flow in industrial machinery; analog process control in smart factories.
Case Study: A chemical plant integrated the IC693ALG222 into its RX3i system to monitor 50+ analog sensors across reactors. The module’s isolated channels and high accuracy reduced measurement errors by 90%, improving process stability and compliance with safety standards.
5. Competitor Comparison
Compared to similar analog input modules, the IC693ALG222 offers:
- Higher Channel Density: 8 channels vs. typical 4-6 channels in competing models.
- Wider Temperature Range: Operates from -40°C to +70°C (vs. standard -20°C to +60°C).
- Integrated Diagnostics: Built-in fault detection reduces reliance on external monitoring tools.
IC693ALG222
6. Selection Recommendations
- Compatibility: Ensure compatibility with GE Fanuc’s RX3i chassis (IC693 series backplane).
- Signal Requirements: Match input signals (voltage/current) and range to application needs.
- Environment: Use in harsh conditions (wide temperature, high vibration) leveraging its industrial-grade design.
- Budget: Balance channel density (8 channels/module) against system scalability needs.
7. Precautions
-
Installation: Follow GE Fanuc’s wiring guidelines to avoid short circuits; ensure proper grounding.
-
Voltage Check: Verify input voltage (24V DC) matches the module’s specifications.
-
Maintenance: Regularly update firmware via Proficy Machine Edition for optimal performance.
-
Safety: Disconnect power before replacing the module; comply with NEC/CE safety standards.
