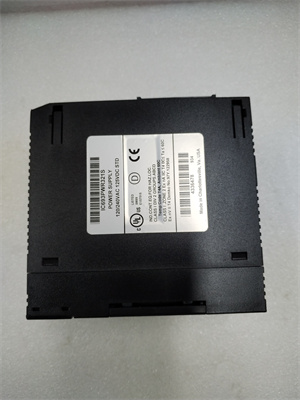

GE Fanuc IC693PWR321S Power Supply Module
The GE Fanuc IC693PWR321S is a high – efficiency power supply module designed for the GE Fanuc Series 90 – 30 PLC system. This module converts 120/240 VAC input to a stable 24 VDC output, providing reliable power to PLC racks and peripheral devices. With advanced features like overload protection, high efficiency, and compact design, the IC693PWR321S is ideal for industrial automation, machinery control, and process monitoring applications.
Product Specifications
| Parameter | Value |
|---|---|
| Input Voltage | 120/240 VAC (50/60 Hz) |
| Output Voltage | 24 VDC ±5% |
| Maximum Output Current | 3 A |
| Efficiency | 89% at full load |
| Isolation Rating | 3 kV RMS between input and output |
| Temperature Range | -20°C to 70°C (-4°F to 158°F) |
| Dimensions | 102 mm × 114 mm × 51 mm (4.0″ × 4.5″ × 2.0″) |
| Compatibility | GE Fanuc Series 90 – 30 PLC racks, compatible with IC693PWR322S (redundant) |
IC693PWR321S
Key Advantages and Features
-
Dual – Voltage Flexibility
- Supports both 120 VAC and 240 VAC inputs, eliminating the need for voltage converters in global installations.
-
High Reliability
- Built – in overvoltage and short – circuit protection ensures safe operation.
- MTBF of 150,000 hours, tested under GE’s 严苛 environmental standards.
-
Space – Saving Design
- Occupies a single slot in the PLC rack, maximizing space utilization in control panels.
-
Wide Operating Range
- Maintains stable output voltage even with input voltage fluctuations of ±15%.
Applications and Use Cases
Industry – Specific Applications:
- Manufacturing: Powering robotic controllers and conveyor systems.
- Energy: Providing backup power to critical sensors in wind turbines.
- Water Treatment: Powering pumps and valves in remote monitoring stations.
Case Study:
A North American food processing plant reduced downtime by 20% after replacing legacy power supplies with the IC693PWR321S. The module’s fast transient response minimized voltage spikes, protecting $500,000 worth of PLC equipment.
A North American food processing plant reduced downtime by 20% after replacing legacy power supplies with the IC693PWR321S. The module’s fast transient response minimized voltage spikes, protecting $500,000 worth of PLC equipment.
Competitive Edge
- Cost – Efficient: Offers 10% higher power density compared to similar modules.
- Certifications: Meets UL 508, CE, and IEC 61131 – 2 safety standards.
- Redundancy Option: Can be paired with the IC693PWR322S for dual – power configurations.
IC693PWR321S
Selection Guide
-
Power Requirements:
- Choose the IC693PWR321S for 3 A output; upgrade to the IC693PWR331S for 5 A.
- Verify total system power consumption to avoid overload.
-
Environmental Conditions:
- For extreme temperatures (-40°C to 85°C), select the IC693PWR321SR variant.
- Ensure proper airflow if installed in enclosed cabinets.
-
Budget Considerations:
- Refurbished units with a 1 – year warranty are available at a 25% discount.
- Combine with the IC693CHS001 rack for a complete power distribution solution.
Installation and Maintenance Tips
-
Installation:
- Use stranded copper wires (18 – 22 AWG) for input/output connections.
- Ground the module to prevent electrostatic discharge.
-
Troubleshooting:
- Check the LED indicator: green = normal operation, red = fault.
- Replace the module if output voltage deviates by more than ±10%.
-
Safety:
- Disconnect power before replacing the module.
- Follow NEC Article 725 for low – voltage power systems.
