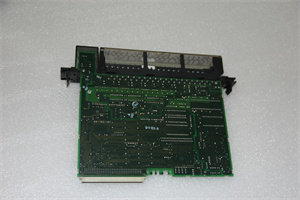

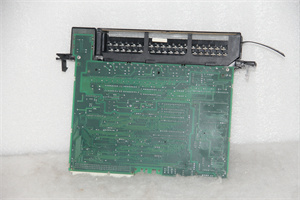

GE Fanuc IC697ALG230 Analog Input/Output Module



GE Fanuc IC697ALG230 is a high-performance analog input/output (I/O) module designed for industrial automation systems, specifically optimized for GE’s Series 90-70 PLC platform. This module bridges the gap between field sensors/actuators and control systems, enabling precise monitoring and regulation of analog signals in applications such as process control, machinery automation, and energy management. With advanced signal conditioning and rugged construction, the IC697ALG230 ensures reliable operation in harsh environments while delivering seamless integration with GE’s ecosystem of controllers and software tools.

Product Parameters

Parameter Specification
Input Voltage 24 VDC ±10%
Power Consumption 5 W
Signal Types Analog input: 4-20 mA, 0-10 VDC; Analog output: 4-20 mA, 0-10 VDC
Resolution 16-bit ADC/DAC
Channel Count 8 inputs/8 outputs (configurable)
Communication Interface GE Genius Bus
Compatibility GE Series 90-70 PLCs, Proficy Machine Edition software
Operating Temperature -40°C to 70°C
Dimensions 120 mm x 80 mm x 50 mm (compact form factor for space-efficient installations)
Weight 0.3 kg
Isolation 2,500 VDC between channels and ground
IC697ALG230

IC697ALG230

Advantages and Features

  1. High Precision and Flexibility:
    • Supports 16-bit resolution for accurate measurement and control of analog signals, reducing errors in critical processes.
    • Configurable input/output ranges allow adaptation to various sensor types (e.g., thermocouples, RTDs, pressure transducers).
  2. Reliability and Durability:
    • Conformal-coated circuit boards protect against moisture, dust, and chemical exposure, ensuring long-term performance in challenging environments.
    • Redundant power supply support minimizes downtime in case of voltage fluctuations.
  3. Ease of Integration:
    • Plug-and-play compatibility with GE’s Series 90-70 PLCs streamlines installation and commissioning.
    • Built-in self-diagnostics and status LEDs simplify troubleshooting and maintenance.
  4. Energy Efficiency:
    • Low power consumption (5 W) reduces operational costs compared to legacy analog modules.

Application Areas and Use Cases

  • Manufacturing:
    Used in assembly lines to monitor temperature, pressure, and motor speed, optimizing production efficiency.
  • Energy:
    Integrates with power generation systems to control boiler fuel injection and steam turbine outputs.
  • Water/Wastewater:
    Manages pump and valve operations in treatment plants based on analog feedback from flow meters and pH sensors.

Case Study:
A North American food processing plant upgraded its pasteurization system with IC697ALG230 modules. By precisely regulating temperature and pressure signals from 30+ sensors, the system reduced product waste by 18% and improved batch consistency. The module’s real-time diagnostics also detected a failing pump motor before it caused a production halt, saving $25,000 in repair costs annually.

IC697ALG230

IC697ALG230

Competitor Comparison

The IC697ALG230 distinguishes itself from comparable analog I/O modules through:



  • Channel Density: Offers 8 I/O channels in a compact form factor, whereas many alternatives provide fewer channels per module.
  • Temperature Range: Operates reliably in extreme temperatures (-40°C to 70°C), exceeding the typical -20°C to 50°C range of similar products.
  • Isolation Performance: Features 2,500 VDC isolation, ensuring robust protection against electrical noise and surges.

Selection Recommendations

  • System Compatibility: Confirm that your GE Series 90-70 PLC supports the Genius Bus protocol required by the IC697ALG230.
  • Channel Requirements: Evaluate whether 8 I/O channels meet your application’s needs; GE offers alternative modules (e.g., IC697ALG222) for higher channel counts.
  • Environmental Conditions: Opt for the IC697ALG230 if your site experiences wide temperature fluctuations or high humidity.

Precautions

  1. Installation:
    • Follow GE’s wiring guidelines to ensure proper grounding and minimize signal interference.
    • Use terminal blocks rated for 24 VDC to prevent short circuits.
  2. Maintenance:
    • Regularly inspect connectors for corrosion or loose connections.
    • Calibrate the module annually to maintain measurement accuracy.
  3. Safety:
    • Power off the system before replacing the module to avoid electric shock.
    • Ensure adequate ventilation to prevent overheating in enclosed cabinets.
