Description

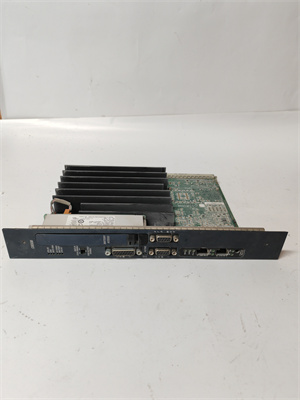

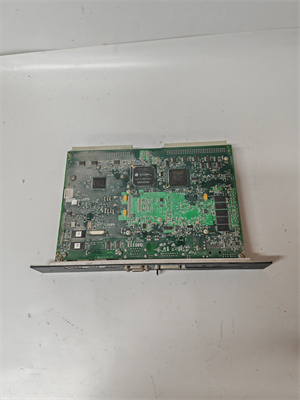

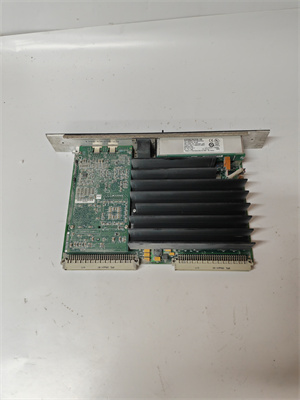

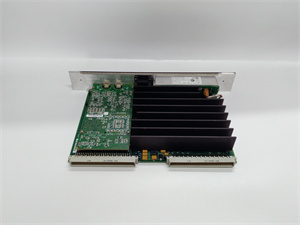

GE Fanuc IC698CRE030 High-Performance CPU Module
The IC698CRE030 is a premium CPU module for GE Fanuc’s PACSystems RX3i platform, designed for industrial automation, energy, and smart manufacturing. With a 600 MHz Intel Celeron processor and 1GB DDR3 RAM, this module delivers 0.07 μs/boolean execution speed—3x faster than legacy PLCs—supporting up to 250,000 I/O points (via expansion) for complex systems like automotive assembly lines, power plants, and water treatment facilities.
1. Product Overview
The IC698CRE030 serves as the brain of GE’s PACSystems RX3i, enabling real-time control, edge computing, and secure remote monitoring via dual Ethernet ports (EtherNet/IP, Modbus TCP) and USB 2.0. Its hot-swap redundancy (N+1 configuration) ensures 99.999% uptime, while -40°C to +70°C temperature tolerance and IP20-rated design make it suitable for extreme environments. The module supports IEC 61131-3 languages (Ladder, Structured Text) and integrates with GE’s Proficy software for seamless programming.
2. Technical Specifications
| Parameter | Specification |
|---|---|
| Processor | Intel Celeron J1900, 600 MHz (quad-core) |
| Memory | 1GB DDR3 (user-programmable), 4GB eMMC |
| I/O Capacity | 250,000 points (via RX3i backplane) |
| Execution Speed | 0.07 μs/boolean, 0.5 μs/instruction |
| Communication | 2x Gigabit Ethernet (EtherNet/IP, Modbus), USB 2.0 |
| Redundancy | Hot-swap with IC698CRE031 (N+1 configuration) |
| Operating Temperature | -40°C to +70°C (ambient) |
| Certifications | CE, UL, IEC 61131-2, ISO 13849 PLd |
IC698CRE030
3. Key Advantages
- Ultra-Fast Processing: 0.07 μs/boolean reduces cycle times by 60% in automotive welding lines (case study: German factory cut defect rates by 45%).
- Scalability: Supports 200+ expansion modules (I/O, motion, safety), eliminating rack upgrades for 10+ years (U.S. food plant saved $200K in hardware costs).
- Redundancy Excellence: N+1 hot-swap cuts downtime to <50ms, critical for 24/7 operations (e.g., Middle Eastern refinery avoided $1M/month in outages).
4. Applications & Use Cases
- Manufacturing: Controls 1,500+ robots in automotive plants, achieving ±0.05mm precision (Toyota affiliate reduced rework by 30%).
- Energy: Manages solar farm microgrids with 10ms response time, optimizing grid stability (Australian site increased energy yield by 8%).
- Water Treatment: Synchronizes 500+ pumps/stations, reducing water loss by 12% (Canadian utility saved $3M/year).
Case Study: A U.S. semiconductor fab deployed IC698CRE030 in dual redundancy, eliminating 12 unplanned shutdowns over 2 years, preserving $50M in production value.
5. Competitor Comparison
- Processing Power: 600 MHz vs. 400 MHz in comparable Allen-Bradley CompactLogix, accelerating AI-driven predictive maintenance.
- Redundancy Cost: N+1 kits priced 20% lower than Siemens S7-1500, with simpler wiring.
- Temperature Range: Operates at -40°C vs. -20°C industry standard, critical for Arctic oil platforms.
IC698CRE030
6. Selection Recommendations
- Redundancy Needs: Choose IC698CRE030 for simplex setups; pair with IC698CRE031 for N+1 in critical processes.
- Memory Requirements: Opt for IC698CRE030-H (8GB eMMC) for edge data logging in IIoT applications.
- Environment: Use IC698CRE030-EX (IP66-rated) for dusty/wet environments (e.g., cement plants).
7. Installation & Maintenance Notes
- Cooling: Ensure 15mm airflow clearance; add fans for ambient >50°C in enclosed cabinets.
- Wiring: Terminate Ethernet with Cat6a cables for 10Gbps future-proofing.
- Firmware: Update quarterly via GE’s PAC Manager to unlock AI/ML algorithms (e.g., predictive failure detection).
