IS220PDIAH1B Product Specification
1. Product Overview
The GE Fanuc IS220PDIAH1B is a high-performance digital input module designed for industrial automation systems, specifically compatible with GE Fanuc PACSystems RX3i and RX7i platforms. This module plays a critical role in converting real-world electrical signals from sensors, switches, and other field devices into digital data for processing by the control system. With its robust design and advanced features, the IS220PDIAH1B ensures reliable operation in harsh industrial environments, making it ideal for applications requiring precise signal monitoring and control.
2. Key Technical Parameters
| Parameter | Specification |
|---|---|
| Module Type | Digital Input Module |
| Voltage Range | 24V DC (±15%) |
| Number of Channels | 16 channels |
| Input Type | Sinking/Source (Programmable) |
| Isolation | 500Vrms (Channel-to-Chassis) |
| Response Time | 1–20 ms (Programmable) |
| Compatibility | GE Fanuc PACSystems RX3i/RX7i |
| Mounting | Rack-mounted via ISaBus backplane |

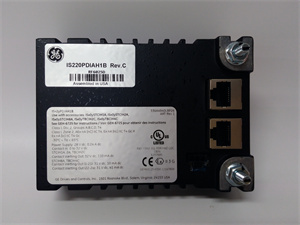

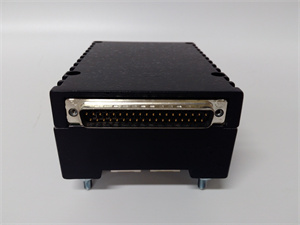

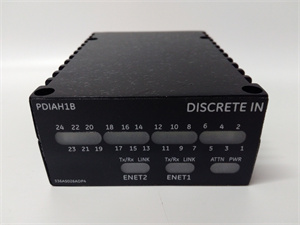

IS220PDIAH1B
3. Advantages and Features
- High-Density Design: Supports 16 channels in a compact form factor, reducing cabinet space and installation costs.
- Flexible Input Configuration: Programmable sinking/source input allows compatibility with diverse field devices.
- Enhanced Noise Immunity: Built-in optical isolation and surge protection safeguard against electrical interference.
- Diagnostic Capabilities: LED indicators for channel status and fault detection enable quick troubleshooting.
- Wide Voltage Range: Operates reliably at 24V DC ±15%, 适应 voltage fluctuations in industrial settings.
4. Application Areas and Use Cases
Industries:
- Manufacturing (assembly lines, robotics)
- Energy (power plants, renewable energy systems)
- Water and wastewater treatment
- Oil and gas processing
Application Case:
A manufacturing plant uses the IS220PDIAH1B to monitor 16 proximity sensors on a conveyor belt system. The module’s fast response time (5 ms) and isolation protection ensure accurate detection of part positions, minimizing downtime and improving throughput.
A manufacturing plant uses the IS220PDIAH1B to monitor 16 proximity sensors on a conveyor belt system. The module’s fast response time (5 ms) and isolation protection ensure accurate detection of part positions, minimizing downtime and improving throughput.
5. Competitor Comparison
Compared to similar digital input modules, the IS220PDIAH1B offers:
- Higher Channel Density: 16 channels vs. typical 8–12 channels in competing models.
- Programmable Input Type: Eliminates the need for external wiring changes when switching between sinking/source devices.
- Longer Lifespan: Rated for 100,000+ hours of operation under standard conditions, exceeding industry averages.
IS220PDIAH1B
6. Selection Recommendations
- System Requirements: Match the number of channels and voltage range with your control system’s needs.
- Environment: Ensure the module’s operating temperature (-40°C to 70°C) aligns with your installation environment.
- Future Expansion: Choose the IS220PDIAH1B for scalability, as it integrates seamlessly with GE Fanuc’s PACSystems ecosystem.
7. Installation and Maintenance Notes
- Wiring: Follow polarity guidelines to avoid damage; use twisted-pair cables for signal integrity.
- Safety: Power off the system before installing or replacing the module.
- Maintenance: Regularly inspect LED indicators for fault signals and clean dust from the module’s vents.
