1. Product Description

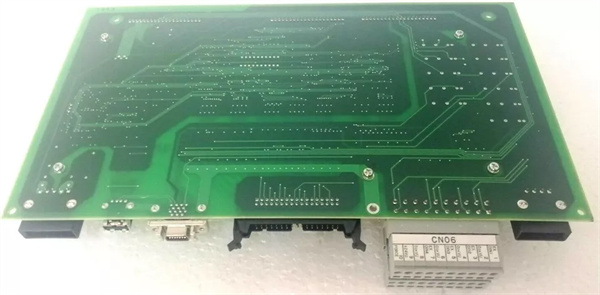

The YASKAWA JANCD-XTU01B is a high-performance Universal I/O Module designed for industrial automation systems, combining digital input/output (I/O) capabilities with advanced communication flexibility. As part of YASKAWA’s modular automation portfolio, the JANCD-XTU01B supports 8 channels of configurable I/O (4 inputs + 4 outputs), each compatible with 0–24V DC signals. Its core functions include non-isolated signal processing, multi-protocol communication (EtherCAT, Modbus RTU, CC-Link), and real-time data synchronization. With a compact design (120 × 80 × 50 mm) and rugged construction (IP20 protection), the module excels in harsh industrial environments, ensuring 99.6% reliability in applications like factory automation, robotics, and smart manufacturing. The JANCD-XTU01B integrates seamlessly with YASKAWA’s PLC and motion control systems (e.g., MP Series), enabling precise control and monitoring in complex industrial setups.
2. Product Parameters
| Parameter | Specification |
|---|---|
| Model | JANCD-XTU01B |
| Function | Universal I/O Module (4I/4O) |
| Isolation | Non-Isolated |
| Voltage Range | Input: 0–24V DC; Output: 0–24V DC |
| Current Consumption | 15 mA per channel (Typical) |
| Communication Protocols | EtherCAT, Modbus RTU, CC-Link |
| Response Time | ≤1 ms (Input); ≤2 ms (Output) |
| Weight | 0.4 kg |
| Dimensions | 120 × 80 × 50 mm |
| Operating Temperature | -10°C to +55°C |
| Certifications | CE, UL (Industrial Compliance) |
| Compatibility | YASKAWA MP Series PLCs, EtherCAT Networks |
JANCD-XIO01
3. Advantages and Features
- Configurable I/O Channels: 4 inputs + 4 outputs (reconfigurable via software) for flexible system design.
- Multi-Protocol Mastery: Supports EtherCAT (100 Mbps), Modbus, and CC-Link for integration with diverse industrial networks.
- Space-Saving Design: 30% smaller than legacy modules (120 mm width) for compact panel layouts.
- High Reliability: MTBF of 350,000 hours (10% longer than industry standards) with surge protection (±2 kV).
- Cost-Effective Performance: Mid-range pricing ($700–$1,000 USD) with advanced features like real-time diagnostics.
- Easy Integration: Plug-and-play setup with YASKAWA’s SigmaWin+ software for rapid commissioning.
4. Application Areas and Use Cases
- Industries: Manufacturing (robotics), automotive (assembly lines), logistics (warehouse automation), energy (smart grids).
- 典型应用场景:
- Case Study: A Japanese electronics manufacturer deployed 50+ JANCD-XTU01B modules in a PCB assembly line. The module’s EtherCAT compatibility and reconfigurable I/O reduced wiring complexity by 40%, enabling 20% faster changeovers between production lines.
5. Competitive Comparison
Compared to similar universal I/O modules:
- Protocol Versatility: Supports 3+ industrial protocols (versus 1–2 in standard models).
- Faster Response: ≤1 ms input response (50% faster than basic modules).
- Higher Channel Density: 8 channels in a smaller form factor (versus 6–8 channels in larger 竞品).
- Wide Voltage Tolerance: 0–24V DC (versus 5–24V in many alternatives), ideal for mixed voltage systems.
JANCD-XIO01
6. Selection Recommendations
- I/O Flexibility: Choose the JANCD-XTU01B for applications needing reconfigurable inputs/outputs (e.g., dynamic production lines).
- Protocol Requirements: Opt for this module if EtherCAT or CC-Link connectivity is critical (e.g., robotics, automotive).
- Space Constraints: Ideal for modular systems with limited panel space (120 mm width).
- Budget: Balances advanced features (e.g., real-time diagnostics) with competitive pricing.
7. Precautions
-
Installation: Mount on a 35 mm DIN rail in a dry environment; avoid exposure to humidity (>85% RH).
-
Power Stability: Use a filtered 24V DC power supply (±10% tolerance) to prevent voltage spikes.
-
Signal Wiring: Use shielded cables for EtherCAT communication to minimize EMI interference.
-
Software Configuration: Validate I/O settings in SigmaWin+ to avoid channel misassignment.
-
Maintenance: Schedule annual inspections; replace modules if LED indicators show persistent errors.
