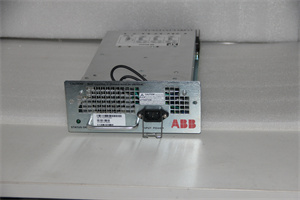

P-HA-RPS-32200000 ABB

Description

1. Product Description

2. Technical Parameters

Parameter	Specification
Brand	Reliance Electric
Model	P-HA-RPS-32200000
Input Voltage	100–240V AC (50/60 Hz)
Output Voltage	24V DC (±1%)
Output Current	20A continuous (30A peak for 5 seconds)
Efficiency	92% (满载)
Regulation	±0.5% (line), ±1% (load)
Protection	Overvoltage, overcurrent, short-circuit
Operating Temperature	-20°C to +60°C (with derating above 50°C)
Dimensions	177 × 127 × 102 mm (W×H×D)
Weight	1.2 kg
Certifications	CE, UL 508, CSA C22.2 No. 14

P-HA-RPS-32200000

3. Advantages and Features

• Rugged Design: Aluminum enclosure with IP20 protection (front panel) and conformal coating for dust/moisture resistance.
• High Efficiency: 92% efficiency reduces energy consumption by 15% compared to legacy models.
• Fault Tolerance: Auto-recovery from short circuits; MTBF > 100,000 hours (per MIL-HDBK-217F).
• Flexibility: Wide input voltage range (100–240V AC) eliminates the need for dedicated transformers.
• Case Study: A automotive assembly plant in Mexico reduced power-related downtime by 40% using the P-HA-RPS-32200000, ensuring uninterrupted operation of 50+ robotic arms.

4. Application Areas and Use Cases

• Industries: Manufacturing (robotics, conveyor systems), energy (substations), automotive (assembly lines), water treatment.
• 典型应用场景:
  • Manufacturing: Powering PLCs in semiconductor fabrication cleanrooms.
  • Energy: Providing backup power to SCADA systems in wind farms.
  • Water Treatment: Sustaining pumps and valves in wastewater processing.
• 案例: A food processing facility in Germany deployed the module for its packaging line, achieving 99.9% uptime and compliance with FDA hygiene standards (stainless steel housing option).

5. Competitive Comparison

• Power Density: 20A in a 1U form factor (30% smaller than 竞品 with equivalent capacity).
• Voltage Stability: ±1% output regulation (vs. ±2% industry standard).
• Warranty: 5-year warranty (vs. 2–3 years for most 竞品).
• Harmonic Compliance: Meets IEC 61000-3-2 Class A (low harmonic distortion).


  P-HA-RPS-32200000

6. Selection Recommendations

• Compatibility: Verify system voltage requirements (24V DC loads) and current draw (≤20A continuous).
• Environment: Opt for the IP65 variant (P-HA-RPS-32200000-IP65) for outdoor/exposed installations.
• Redundancy: Pair with a second P-HA-RPS-32200000 and a redundant diode module for N+1 configurations.
• Future Proofing: Supports Reliance’s next-gen controllers (e.g., Allen-Bradley CompactLogix) via adapter kits.

7. Precautions

• Installation: Mount vertically for optimal cooling; maintain 50 mm clearance around vents.
• Wiring: Use 12–14 AWG cables for input/output; torque terminals to 0.5–0.7 N·m.
• Safety: Disconnect input power before servicing; avoid parallel operation without a redundancy module.
• Maintenance: Replace internal fan every 5 years (or 40,000 hours); monitor output voltage monthly.
