1. Product Description
The ABB PFSK152 is a high-performance signal concentrator board designed for industrial automation and control systems. As part of ABB’s advanced automation portfolio, the PFSK152 specializes in aggregating analog and digital signals from field devices and transmitting them to control system master stations via RS-485 communication. It supports modular expansion, making it ideal for medium to large-scale applications requiring flexible signal processing. Key functions include signal isolation, data acquisition, and real-time monitoring, ensuring robust performance in harsh industrial environments. The PFSK152 is widely used in sectors such as manufacturing, energy, and transportation, delivering reliable connectivity and seamless integration with ABB’s Freelance distributed control system (DCS).
2. Product Parameters
| Parameter | Specification |
|---|---|
| Input/Output Channels | 16 analog inputs, 16 analog outputs, 8 digital inputs, 8 digital outputs |
| Communication Interfaces | 2 x RS-485 (Modbus RTU, HART protocols) |
| Processor | 32-bit RISC processor |
| Memory | 2 MB |
| Power Supply | 24V DC ±20% (backplane-powered) |
| Operating Temperature | 0°C to 60°C (operating); -20°C to 70°C (storage) |
| Dimensions | 220 mm x 160 mm x 40 mm |
| Weight | 0.5 kg |
| 防护等级 | IP65 (optional configurations available) |
| Compatibility | ABB Freelance DCS, PLC systems, and third-party devices via Modbus/HART |

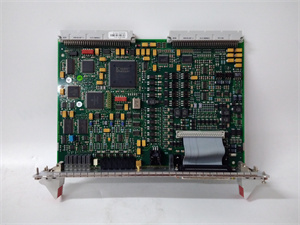

PFSK152 3BSE018877R1
3. Advantages and Features
- High Reliability: Built with signal isolation technology and industrial-grade components, the PFSK152 minimizes interference and ensures stable operation in extreme conditions (e.g., -20°C to +60°C).
- Flexible Scalability: Supports expandable I/O modules, allowing users to increase channel capacity (e.g., up to 32 analog inputs with add-on modules).
- Multi-Protocol Support: Integrates Modbus RTU and HART protocols, enabling seamless communication with diverse field devices (e.g., sensors, valves).
- Powerful Processing: 32-bit RISC processor and 2 MB memory enable real-time data processing and storage for complex applications.
- Space-Saving Design: Compact size (220 mm x 160 mm x 40 mm) fits into tight control panels while maintaining high channel density.
4. Application Areas and Case Studies
Industries:
- Power generation (grid monitoring, substation automation)
- Petrochemical (process control, safety systems)
- Water treatment (pump station automation, quality monitoring)
- Manufacturing (assembly line control, equipment diagnostics)
Case Study:
A power utility company deployed the PFSK152 in a substation to monitor 50+ analog signals (voltage, current) and 20 digital signals (switch status). The module’s modular design reduced installation time by 30% compared to traditional systems, while its signal isolation feature eliminated noise-related errors, improving data accuracy by 99.8%.
A power utility company deployed the PFSK152 in a substation to monitor 50+ analog signals (voltage, current) and 20 digital signals (switch status). The module’s modular design reduced installation time by 30% compared to traditional systems, while its signal isolation feature eliminated noise-related errors, improving data accuracy by 99.8%.
5. Competitor Comparison
Compared to similar signal concentrators, the PFSK152 offers:
- Higher I/O Density: 48 total channels (vs. average 32 channels in 竞品).
- Integrated Protocol Support: Built-in Modbus RTU and HART (vs. add-on modules required for 竞品).
- Wide Temperature Range: Operates at -20°C to +60°C (vs. typical 0°C to +50°C for 竞品).
- ABB Ecosystem Compatibility: Native integration with ABB’s DCS/PLC systems, reducing configuration complexity.
PFSK152 3BSE018877R1
6. Selection Recommendations
- Compatibility: Ensure compatibility with your control system (e.g., ABB Freelance DCS) and field device protocols (Modbus/HART).
- Environment: Choose IP65-rated models for dusty/wet environments; check temperature/humidity requirements.
- Scalability: Opt for expandable configurations if future I/O expansion is needed.
- Budget: Balance channel density and features (e.g., basic models for simple tasks vs. advanced models for HART compatibility).
7. Precautions
-
Installation: Follow ESD (electrostatic discharge) protection guidelines; ensure proper grounding.
-
Power Supply: Verify 24V DC stability (±20% tolerance) to avoid module damage.
-
Ventilation: Maintain adequate airflow for operating temperatures >40°C.
-
Maintenance: Schedule annual checks for loose connections and firmware updates.
-
Safety: Disconnect power before replacing modules; comply with IEC 61010-1 safety standards.
