1. Product Description
The ABB PM865K01 3BSE031151R1 is a high-integrity processor unit designed for the AC800M Distributed Control System (DCS), delivering advanced automation for safety-critical applications. As part of ABB’s System 800xA portfolio, the PM865K01 3BSE031151R1 supports SIL 2/3 certification (TÜV-approved), making it ideal for industries requiring fail-safe operations, such as oil/gas, power generation, and chemical processing. Equipped with a 96 MHz MPC862P processor and 32 MB RAM, it ensures real-time control and redundant operation (1+1 CPU redundancy) with seamless switchover. The module features dual Ethernet ports (RJ-45) for control networks and isolated serial ports (RS-232/RS-485) for configuration tools, enabling flexible integration with S800 I/O modules and third-party systems.
2. Product Parameters
| Parameter | Specification |
|---|---|
| Model | PM865K01 3BSE031151R1 |
| Brand | ABB |
| Processor | MPC862P, 96 MHz |
| Memory | 32 MB RAM (application), 1 GB flash (data storage) |
| Power Supply | 24 V DC (19.2–30 V DC), 210 mA typical |
| Redundancy | Hot standby (1+1), switchover time ≤10 ms |
| Communication | 2x Ethernet (RJ-45, 10/100 Mbit/s); 2x Serial (RS-232/RS-485, isolated) |
| Safety Certification | SIL 2/3 (TÜV), IEC 61508 compliant |
| I/O Compatibility | S800 I/O high-integrity modules (e.g., PM866A, PM891) |
| Operating System | VxWorks real-time OS |
| Dimensions | 135 mm (depth) × 186 mm (height) × 119 mm (width) |
| Weight | 1.2 kg |
| Temperature Range | -20°C to +60°C (operating); -40°C to +85°C (storage) |

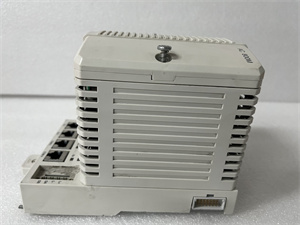

ABB PM865K01 3BSE031151R1
3. Advantages and Features
- Safety Compliance: SIL 3 certification (via SM81x modules) ensures reliability in hazardous environments, reducing risk by 99% in critical processes.
- Redundancy Architecture: Dual CPU support with automatic failover (≤10 ms) and redundant communication ports (Ethernet/serial) for 99.99% system availability.
- High Performance: 96 MHz processor with 1 ms cycle time for complex control algorithms (e.g., turbine speed regulation, chemical reactor monitoring).
- Flexible Integration: Compatible with ABB’s 800xA Control Builder and open protocols (MMS, Modbus), enabling integration with non-ABB systems.
- Compact Design: Conformal-coated circuitry resists dust, moisture, and vibration, suitable for harsh industrial settings.
4. Application Areas and Use Cases
- Industries: Oil and gas (refineries, offshore platforms), power generation (nuclear, thermal), pharmaceuticals, and water treatment.
- Use Case:
Offshore Platform Safety System: The PM865K01 3BSE031151R1 controls emergency shutdown (ESD) systems with SIL 3 certification. Its redundant CPU pairs and fast cycle times (1 ms) ensure instantaneous response to leaks or overpressures, minimizing downtime and environmental risk.
5. Competitor Comparison
Compared to similar controllers:
- Higher Safety Rating: SIL 3 certification (vs. SIL 2 in many alternatives) for life-critical applications.
- Faster Redundancy: 10 ms switchover (vs. 15–20 ms in 竞品), reducing process interruptions.
- Modular Scalability: Supports S800 I/O high-integrity modules (vs. proprietary I/O in 竞品), lowering upgrade costs.
ABB PM865K01 3BSE031151R1
6. Selection Recommendations
- Safety Requirements: Choose SIL 3 configuration (with SM811 module) for hazardous processes; SIL 2 for non-life-critical systems.
- Redundancy Needs: Opt for 1+1 redundancy for continuous operations; single CPU for cost-sensitive projects.
- Compatibility: Verify integration with AC800M racks, S800 I/O, and 800xA software.
- Environment: Ensure operating temperature (-20°C to +60°C) matches site conditions; consider conformal coating for corrosive environments.
7. Precautions
-
Installation: Follow ESD protocols; secure mounting to prevent vibration damage.
-
Power Stability: Use a filtered 24 V DC supply (19.2–30 V DC) to avoid voltage fluctuations.
-
Firmware Management: Regularly update firmware via ABB’s Service Tool to maintain safety certifications.
-
Redundancy Testing: Conduct quarterly failover tests to validate CPU and battery health (lithium battery for real-time clock backup).
