Product Description: ABB PP865A 3BSE042236R2
The ABB PP865A 3BSE042236R2 is a high-performance PLC processor module designed for industrial automation and control systems. As part of ABB’s AC500 series, the PP865A 3BSE042236R2 combines advanced processing capabilities with robust connectivity, enabling real-time data management and seamless integration in complex industrial environments. Ideal for applications requiring precision control, scalability, and reliability, this module supports diverse industries such as manufacturing, energy, and water treatment. The PP865A 3BSE042236R2 features a compact design, multi-protocol support, and rugged construction to optimize system efficiency and reduce downtime.
Product Parameters
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | PP865A 3BSE042236R2 |
| Voltage | 24 V DC (±10%) |
| Current Consumption | ≤600 mA |
| Processor | 32-bit ARM Cortex™-A9 (800 MHz) |
| Memory | 1 GB RAM, 8 GB flash storage |
| Interfaces | Ethernet/IP, Profibus DP, Modbus RTU (RS485) |
| I/O Capacity | Supports up to 2,048 digital/analog I/O |
| Compatibility | ABB AC500 PLC system, third-party devices |
| Operating Temperature | -40°C to +70°C (wide temperature range) |
| Certifications | IEC 61131-2, EN 60079-15 (explosion-proof) |

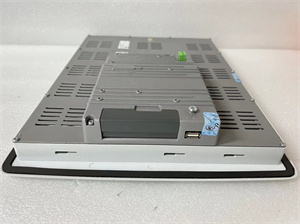

PP865A 3BSE042236R2
Advantages and Features
- High Performance: 800 MHz processor with 1 GB RAM ensures fast cycle times (≤0.5 ms for critical tasks) and advanced data processing.
- Rugged Design: Built for harsh environments (shock/vibration resistance, wide temperature range) with IP20 protection.
- Modular Scalability: Hot-swap capable for easy maintenance; supports redundant configurations for fault tolerance.
- Multi-Protocol Connectivity: Seamless integration with industrial networks (Ethernet/IP, Profibus) and IoT platforms.
- Energy Efficiency: Low power consumption (≤600 mA) with sleep mode for energy-saving operations.
- Safety Compliance: Certified for explosion-proof environments (EN 60079-15), ideal for oil, gas, and chemical industries.
Application Areas and Case Studies
Industries:
- Oil and Gas (process control, offshore platforms)
- Manufacturing (robotics, conveyor systems)
- Energy (power plants, renewable energy)
- Chemical Processing (hazardous environments)
Case Study:
A chemical plant in Europe upgraded its control system with the PP865A 3BSE042236R2. The module’s explosion-proof certification and real-time control enabled safe operation in volatile environments, reducing downtime by 25% and improving process accuracy by 18%. Its Profibus connectivity streamlined integration with existing field devices, minimizing retrofit costs.
Competitor Comparison
Compared to similar PLC modules:
- Superior Safety: Explosion-proof certification (EN 60079-15) outperforms standard industrial modules in hazardous zones.
- Extended Temperature Range: Operates from -40°C to +70°C, surpassing most competitors’ 0°C to +50°C range.
- Higher I/O Density: Supports 2,048 I/O points (versus 1,000–1,500 in comparable models) for large-scale systems.
- Faster Processing: 800 MHz processor (vs. 400–600 MHz in 竞品) for real-time analytics and predictive maintenance.
PP865A 3BSE042236R2
Selection Recommendations
- Environment: Choose the PP865A 3BSE042236R2 for hazardous areas (explosion-proof) or extreme climates (wide temperature range).
- Scalability: Ideal for large systems (2,048 I/O points); pair with ABB’s AC500 I/O modules for modular expansion.
- Connectivity: Ensure compatibility with your network protocols (e.g., Profibus for legacy systems, Ethernet/IP for IoT).
- Safety Requirements: Prioritize this model for applications needing explosion-proof certification (Zone 1/2, Division 1).
Precautions
- Installation:
- Ground the module properly to prevent ESD damage.
- Use ABB-approved mounting brackets for vibration-prone environments.
- Hazardous Areas:
- Verify compliance with local explosion-proof standards (e.g., ATEX, NEC Class I Div. 1).
- Ensure all connections meet flameproof enclosure requirements.
- Maintenance:
- Update firmware quarterly via ABB’s AC500 Software (latest version: 4.2+).
- Replace backup batteries every 5 years (for retained memory).
- Cooling:
- Maintain airflow in control cabinets; avoid ambient temperatures >70°C.
