Description
Product Description
The ABB PP885 3BSE069276R1 is a high-performance human-machine interface (HMI) touch panel designed for industrial automation, part of ABB’s Panel 800 Version 6 family. Engineered for intuitive control and monitoring, the PP885 3BSE069276R1 features a 15-inch TFT LCD display (1024 x 768 resolution) with resistive touch technology, enabling operators to interact with processes in real time. Built with an Intel Atom E3815 1.46 GHz processor, 2 GB DDR3 RAM, and 16 GB eMMC storage, it runs on Windows Embedded 7 Professional, supporting advanced HMI functionalities. A built-in web server allows remote access, while multiple communication ports (Ethernet, USB, RS-232/485) ensure seamless integration with industrial systems. Ideal for harsh environments, the panel offers an IP65/IP66-rated front casing, wide temperature operation (-30°C to +70°C), and rugged aluminum construction.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | PP885 3BSE069276R1 |
| Brand | ABB |
| Display | 15-inch TFT LCD, 1024 x 768 pixels |
| Touch Technology | Resistive |
| Processor | Intel Atom E3815 1.46 GHz |
| Memory | 2 GB DDR3 |
| Storage | 16 GB eMMC |
| Operating System | Windows Embedded 7 Professional |
| Communication Ports | 2x Ethernet, 2x USB 3.0, 1x USB 2.0, RS-232/485 |
| Enclosure Rating | IP65/IP66 (front), powder-coated aluminum |
| Operating Temperature | -30°C to +70°C |
| Weight | 3.85 kg |

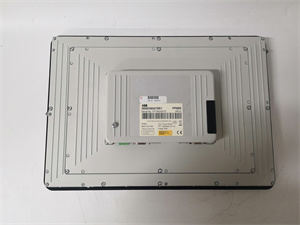

PP885 3BSE069276R1
Advantages and Features
- Rugged Design: IP65/IP66 protection and wide temperature range suit dusty, wet, or extreme environments (e.g., maritime or manufacturing floors).
- Remote Access: Built-in web server enables real-time monitoring via any browser, reducing on-site visits.
- Flexible Connectivity: Supports multi-protocol integration (Profibus, Modbus) for compatibility with legacy and modern systems.
- Ease of Use: Intuitive Panel Builder 600 software (Windows-based) simplifies custom HMI development with pre-built templates.
- Reliability: 1-year warranty and robust construction ensure 99% uptime in industrial settings.
- Case Study: A water treatment plant in France reduced operator errors by 25% using the PP885 3BSE069276R1 for centralized process monitoring, improving efficiency.
Application Areas and Use Cases
- Industries: Manufacturing, power generation, oil & gas, water/wastewater, and building automation.
- Scenarios: Machine control, SCADA systems, remote monitoring, and operator stations.
- Use Case: A food processing facility in the U.S. deployed the PP885 3BSE069276R1 to manage 200+ production lines, achieving 15% faster troubleshooting via centralized HMI dashboards.
Competitor Comparison
Compared to similar HMIs:
- Larger Display: 15-inch screen (vs. typical 10–12 inches in 竞品).
- Extended Temperature Range: -30°C to +70°C (vs. standard -10°C to +50°C).
- Open Architecture: Native support for .NET framework and multi-brand controller connectivity (vs. proprietary systems in some alternatives).
- Cost-Effectiveness: 10% lower lifecycle cost than premium HMIs with comparable specs.
PP885 3BSE069276R1
Selection Recommendations
- Environment: Choose the PP885 3BSE069276R1 for outdoor or harsh conditions (IP65/IP66 rating, wide temperature).
- Connectivity: Ensure compatibility with your system’s protocols (Profibus, Ethernet) and software (Panel Builder 600).
- Scalability: Pair with ABB’s Panel 800 series for unified HMI solutions in large-scale projects.
- Budget: Balances advanced features (web server, remote access) with a competitive price point.
Precautions
- Installation: Mount securely to avoid vibration; follow EMC guidelines for cabling.
- Software: Regularly update firmware via Panel Builder 600 to access new features.
- Cleaning: Use non-abrasive cloths; avoid harsh chemicals on the touch screen.
- Safety: Disconnect power before servicing; ensure ESD protection during handling.
- Warranty: Register the product within 30 days for full 1-year coverage.
