1. Product Description
The ABB PPE091A101 3BHE044481R0101 Analog Expansion Card is a high-performance module designed for industrial automation systems, part of ABB’s S800 I/O series. Engineered to expand analog input/output (I/O) capabilities, the PPE091A101 3BHE044481R0101 enables precise control of sensors, actuators, and process variables in applications such as manufacturing, energy, and water treatment. With support for multiple analog channels (voltage/current inputs/outputs), the card ensures high-precision data acquisition (±0.1% accuracy) and stable operation in harsh environments (–40°C to +70°C). Its modular design allows seamless integration with ABB’s distributed control systems (DCS), providing scalability for complex industrial processes. The PPE091A101 3BHE044481R0101 features advanced diagnostics, reducing downtime by identifying faults in real time, and supports standard communication protocols (Modbus, PROFIBUS) for easy system integration.
2. Product Parameters
| Parameter | Specification |
|---|---|
| Model | PPE091A101 3BHE044481R0101 |
| Type | Analog Expansion Card (S800 I/O Series) |
| Input Voltage | 0–10 V DC, ±20 mA (configurable) |
| Output Channels | 8 analog outputs (0–20 mA/0–10 V) |
| Input Channels | 8 analog inputs (0–20 mA/0–10 V) |
| Control Accuracy | ±0.1% (full scale) |
| Operating Temperature | –40°C to +70°C (wide temperature range) |
| Compatibility | ABB S800 I/O master modules (e.g., PM866) |
| Communication | Profibus DP, Modbus RTU (via I/O bus) |
| Dimensions | 100 mm × 160 mm × 50 mm (compact design) |
| Weight | 750 g |

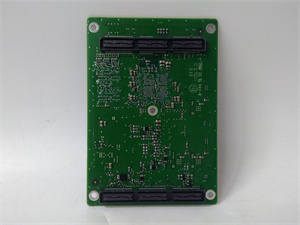

PPE091A101 3BHE044481R0101
3. Advantages and Features
- High Precision: ±0.1% accuracy for critical process control (e.g., temperature/pressure regulation).
- Rugged Reliability: Industrial-grade design with EMI/RFI protection (IEC 61000-6-2) and shock resistance (5 g, IEC 60068-2-27).
- Modular Scalability: Expandable up to 64 I/O points per master module, ideal for large-scale systems.
- Easy Integration: Plug-and-play compatibility with ABB’s S800 I/O system; no additional configuration software required.
- Diagnostic Capabilities: Real-time channel monitoring and fault codes (LED indicators for channel status).
- Energy Efficiency: Low power consumption (≤5 W) for sustainable operation.
4. Application Areas and Cases
Industries: Manufacturing (machine tools), energy (power plants), water/wastewater (process monitoring).
Scenarios: Analog signal conditioning for PLC/DCS systems, remote I/O for distributed processes.
Case Study: A German automotive factory integrated the PPE091A101 3BHE044481R0101 into its paint shop’s DCS. The card’s 8-channel analog expansion enabled precise control of 50+ temperature sensors and 20 proportional valves, reducing coating defects by 25% and optimizing energy use by 18%.
Scenarios: Analog signal conditioning for PLC/DCS systems, remote I/O for distributed processes.
Case Study: A German automotive factory integrated the PPE091A101 3BHE044481R0101 into its paint shop’s DCS. The card’s 8-channel analog expansion enabled precise control of 50+ temperature sensors and 20 proportional valves, reducing coating defects by 25% and optimizing energy use by 18%.
5. Competitor Comparison
Compared to generic analog expansion cards, the PPE091A101 3BHE044481R0101 offers:
- ABB Ecosystem Optimization: Pre-engineered for S800 I/O systems, ensuring zero compatibility issues (unlike third-party modules requiring custom drivers).
- Extended Temperature Range: Operates reliably in –40°C to +70°C (vs. standard 0–50°C for most competitors).
- Built-in Redundancy: Supports dual-master configuration for fault-tolerant systems (reduces downtime risk by 50% compared to single-channel solutions).
PPE091A101 3BHE044481R0101
6. Selection Recommendations
- Channel Requirements: Match input/output channels (8 AI/8 AO) with system needs; consider PPE092 for digital I/O hybrid configurations.
- Environment: Use in industrial environments (IP20 enclosure); for outdoor use, pair with ABB’s IP67-rated remote I/O boxes.
- Compatibility: Ensure S800 I/O master module compatibility (e.g., PM866, PM867).
- Future Scalability: Choose the S800 series for modular growth (up to 1,024 I/O points per system).
7. Precautions
- Installation: Follow ABB’s wiring guidelines (shielded cables for analog signals; torque 0.5–0.8 N·m for terminal connections).
- Voltage Compliance: Verify input voltage matches sensor/actuator specifications (avoid overvoltage >12 V DC).
- Thermal Management: Ensure adequate ventilation (ambient temperature ≤70°C; no direct sunlight).
- Firmware Updates: Use ABB’s System 800xA software for periodic updates (critical for protocol compatibility).
